Dr. J's Compiler and Translator Design Lecture Notes

lecture #1 began here

Syllabus

Announcements

• Homework #1 is posted.

Comments on Implementation Languages

• C is the recommended language for you to use in this course, however there is a bit of wiggle room.
• The ideal language is: the one that you know best, that happens to have a near-100%-compatible lex and yacc tool, and happens to be on the CSE login server, login.cs.nmt.edu
• Examples of languages I've allowed students to attempt to use in past:

  C++

  OK, but not recommended. If calling flex/bison from C++ give you trouble, that's on you.

  Python

  Vetoed. The main "lex and yacc for Python", PLY, is not lex and yacc compatible enough. Past students whom I allowed to use this performed poorly. (I'd be interested in working on a 100% lex/yacc compatible Python tool).

  Java

  OK, but you have to agree to use jflex and byacc/j, and we might need to do some setup for it to run as needed.

  Unicon

  My research language will be used occasionally in examples this semester. Unicon has a language level akin to Python but syntax a bit more C/Pascal/Java-ish. Lex and yacc specifications that are written carefully can be shared by Unicon and Java tools.

• If you wish to use something other than C, you must confer with Dr. J and it must be approved, which may include demonstrating to me that it runs on the computer named newlogin.cs.nmt.edu, and must have compiler generation tools. NMT sysadmins might or might not be able to install new things that you might need.
• If you wish to use compiler tools that are not near-100% compatible with Lex/Yacc, you must confer with Dr. J and it must be approved. PLY and ANTLR are examples of not-compatible-enough parser generator tools that have pros and cons. For example some of the pros of ANTLR are highlighted at Why you should not use (f)lex, yacc and bison, by G. Tomassetti. Just because someone writes something does not make it un-biased or true. But it does make some valid points and tell one side of the story.

New This Year

• Kotlin

The target language we are writing a subset for this year is a subset of Kotlin that I will call k0.

Reading!

1. Read the Thain text chapters 1-3. Within the Scanning chapter, there are portions on the finite automata that should be CSE 342 review; you may SKIM that material, unless you don't know it or don't remember it, in which case you should READ in detail.
2. If you have BYOPL, you may want to read the BYOPL text, chapters 1-3. You can sort of skim chapter 1-2. Chapter 3 is important for the next homework(s) #2+.
3. Read Sections 3-5 of the Flex manual, Lexical Analysis With Flex.
4. Read the class lecture notes as fast as we manage to cover topics. Please ask questions about whatever is not totally clear. You can Ask Questions in class or via e-mail.

Although the whole course's lecture notes are ALL available to you up front, I generally revise each lecture's notes, making additions, corrections and adaptations to this year's homeworks, the night before each lecture. The best time to print hard copies of the lecture notes, if you choose to do that, is one day at a time, right before the lecture is given. Or just read online.

Why study compilers?

• Experience with large-scale applications development. Your compiler may be the largest program you write as a student. Experience working with really big data structures and complex interactions between algorithms will help you out on your next big programming project.
• Compilers are a shining triumph of CS theory. Compilers demonstrate the value of theory to render manageable a level of complexity that previously overwhelmed early programmers.
• Compilers are a basic element of programming language research. Many language researchers write compilers for the languages they design.
• Many applications contain similar properties to one or more phases of a compiler, and compiler expertise and tools can help an application programmer working on other projects besides compilers.

Some Tools we will use

C and "make".

You should already be intermediate proficiency in these tools. You should expect to practice and gain expertise with these tools as part of passing this class.

lex and yacc

These are compiler-writers' tools, but are used for other kinds of applications, almost anything with a complex file format to read in can benefit from them.

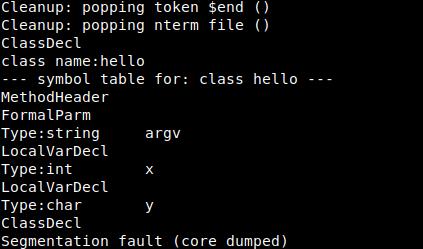

gdb and valgrind

You will need to know a source-level like gdb debugger well to survive this class. If you have never used valgrind: it can find some bugs that gdb misses!

e-mail

Feel free to ask the instructor questions by e-mail, or request a zoom or in-person appointment.

Compilers - What Are They and What Kinds of Compilers are Out There?

There are several major kinds of compilers:

Native Code Compiler

Translates source code into hardware (assembly or machine code) instructions. Example: gcc.

Virtual Machine Compiler

Translates source code into an abstract machine code, for execution by a virtual machine interpreter. Example: javac.

JIT Compiler

Translates virtual machine code to native code. Operates within a virtual machine. Example: Sun's HotSpot java machine.

Preprocessor

Translates source code into simpler or slightly lower level source code, for compilation by another compiler. Examples: cpp, m4.

Pure interpreter

Executes source code on the fly, without generating machine code. Example: Lisp.

assembler

a translator from human readable (ASCII text) files of machine instructions into the actual binary code (object files) of a machine.

linker

a program that combines (multiple) object files to make an executable. Converts names of variables and functions to numbers (machine addresses).

loader

Program to load code. On some systems, different executables start at different base addresses, so the loader must patch the executable with the actual base address of the executable.

preprocessor

Program that processes the source code before the compiler sees it. Usually, it implements macro expansion, but it can do much more.

editor

Editors may operate on plain text, or they may be wired into the rest of the compiler, highlighting syntax errors as you go, or allowing you to insert or delete entire syntax constructs at a time.

debugger

Program to help you see what's going on when your program runs. Can print the values of variables, show what procedure called what procedure to get where you are, run up to a particular line, run until a particular variable gets a special value, etc.

profiler

Program to help you see where your program is spending its time, so you can tell where you need to speed it up.

Phases of a Compiler

Lexical Analysis: Converts a sequence of characters into words, or tokens Syntax Analysis: Converts a sequence of tokens into a parse tree Semantic Analysis: Manipulates parse tree to verify symbol and type information Intermediate Code Generation: Converts parse tree into a sequence of intermediate code instructions Optimization: Manipulates intermediate code to produce a more efficient program Final Code Generation: Translates intermediate code into final (machine/assembly) code

lecture #2 began here

Kotlin of the Day

What some of you told me about Kotlin so far:

variables are declared using a var keyword. Does that mean Kotlin is dynamically typed?

statically typed and type inferencing are not mutually exclusive. Our "subset" of Kotlin, k0, can be really (and more restrictively, and explicitly) statically typed. "var" keyword was used in Pascal, and Pascal is statically typed...

Kotlin has a different perspective than C/C++ on "const"-ness

There is this whole paradigm (functional programming) and this whole family of languages (single assignment languages such as SISAL) that says constness should be in as much of your programs as possible. So maybe Kotlin is const by default and anything non-const is flagged.

Kotlin has nullable and non-nullable variants of (almost) all types.

This solves(?) part of Java's null exception hell via the type system. Note that Java famously has a few built-in scalar types and then most stuff is classes/objects. Is Kotlin like that with the non-OO types and then the OO types?

Kotlin mostly has a lot of class types, and class types will be a major challenge to writing our compiler.

We will have to have a plan alright. But we will be requiring only a very restructed subset of classes/objects support in k0.

Some things in kotlin that look hard to implement:

• type system, type inference
• generics
• garbage collection
• fancy OO features
• functional programming constructs
• big phat Java-like standard library
• concurrency/coroutines
• exception handling

How big will our Kotlin subset be?

• ideally: big enough for a CS1 class (e.g. CSE 113) taught in Kotlin
• stuff that would be similar to C 113 content, but with Kotlin syntax
• practically: just a subset of even that
• also practically: a few unavoidable Kotlin oddities
• a typical compiler class very minimal/simple aggregate types, less than what CSE 113 would use

Example of the Compilation Process

position = initial + rate * 60

Semantic analysis may transform the tree into one of height 5, that includes a type conversion necessary for real addition on an integer operand. Note that names like position, initial and rate in source code are but three instances of the kind of token that allows names, called an identifier or "id". The actual names are stored in the structure, but the terminal symbol is the same for all these names.

Intermediate code generation uses a simple traversal algorithm to linearize the tree back into a sequence of machine-independent three-address-code instructions. This is typically done bottom-up and the linear sequence might look almost like a reversal of the tree structure, but in general it is not constrained to be just that.

t1 = inttoreal(60)   t2 = id3 * t1 t3 = id2 + t2 id1 = t3

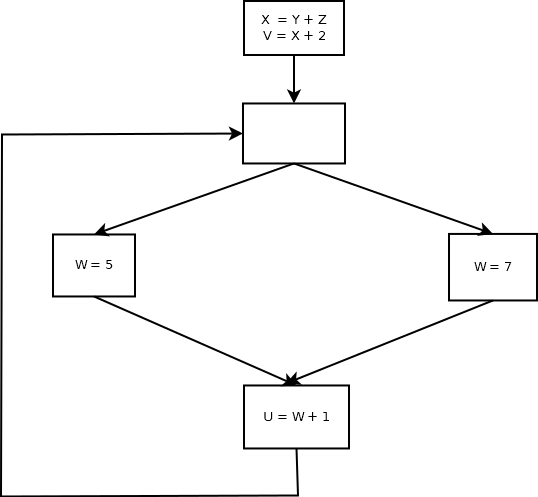

Optimization of the intermediate code allows the four instructions to be reduced to two machine-independent instructions. Final code generation might implement these two instructions using 5 machine instructions in which the actual registers and addressing modes of the CPU are utilized (left column). For comparison the right column shows the same computation using a bytecode instruction set. Many bytecodes are stack-based and have no registers.

native

VM

MOVF id3, R2   MULF #60.0, R2 MOVF id2, R1 ADDF R2, R1 MOVF R1, id1

pnull # push space for a result var 0 # load a reference to var slot 0 (position) pnull # push space for a result var 1 # load a reference to var slot 1 (initial) pnull # push space for a result var 2 # load a reference to var slot 2 (rate) int 0 # load a reference to constant slot 0 (60) mult # multiply top two references plus # add top two references asgn # assign value from top ref into next ref

Revision Controls Yes, Public Repositories No

• on github, you may setup private repositories, either for free or cheap
• you can use revision control with a local repository. setup is easy, but if you do this, figure out how to back up your work.
• you can figure out how to do git through ssh onto a department unix account

Kotlin Reference

Overview of Lexical Analysis

• Its primary function is to convert from a (often very long) sequence of characters into a (much shorter, perhaps 10X shorter) sequence of tokens. This means less work for subsequent phases of the compiler.
• The scanner must Identify and Categorize specific character sequences into tokens. It must know whether every two adjacent characters in the file belong together in the same token, or whether the second character must be in a different token.
• Most lexical analyzers discard comments & whitespace. In most languages these characters serve to separate tokens from each other, but once lexical analysis is completed they serve no purpose. On the other hand, the exact line # and/or column # may be useful in reporting errors, so some record of what whitespace has occurred may be retained. Note: in some languages, even popular ones, whitespace is significant.
• Handle lexical errors (illegal characters, malformed tokens) by reporting them intelligibly to the user.
• Efficiency is crucial; a scanner may perform elaborate input buffering
• Token categories can be (precisely, formally) specified using regular expressions, e.g.

  	 IDENTIFIER=[a-zA-Z][a-zA-Z0-9]*


• Lexical Analyzers can be written by hand, or implemented automatically using finite automata.

A couple comments on the Lab for this course

Labs start in earnest next Wednesday

Generally they will run every Wednesday from 2-3pm

Main purpose of the lab: auxiliary public Q & A and debugging help for your project.

Bring us your coredumps, your stack overflows, your huddled parse problems, yearning to breath free.

Auxiliary purpose of the lab: extended practice with the professional tools of the course.

For some of you, this part will be review.

Format of the Labs

Usually a public Q & A followed by a lab exercise.

Grading of the Labs

The Labs are to help you complete your real homework (project) assignments and will be a miniscule portion of your grade, treated comparable to quizzes. Let's say, the aggregate of all labs (and quizzes, if any) will amount to 5%. A given lab might be 0.3-0.5% and is likely to be graded on a boolean (you did it or not) scsale.

What is a "token" ?

1. a single word of source code input (a.k.a. "lexeme")
2. an integer code that refers to (the category of) a single word of input
3. a set of lexical attributes computed from a single word of input
4. a struct (or object) that holds all those attributes

Auxiliary data structures

lexeme table

a table that stores lexeme values, such as strings and variable names, that may occur in many places. Only one copy of each unique string and name needs to be allocated in memory. (This is an optional memory-saving device.)

symbol tables

symbol tables store the names defined (and visible within) each particular scope. The most common scopes are: global, and procedure (local). Real languages have more scopes such as class (or record) and package.

error handlers

errors in lexical, syntax, or semantic analysis need a common reporting mechanism, that shows where the error occurred (filename, line number, and maybe column number are useful). This may entail helper functions, global variables, or entire data structures.

lecture #3 began here

Regular Expressions

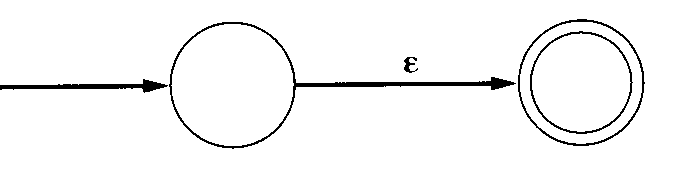

1. Epsilon (ε) is a regular expression denoting the set containing the empty string

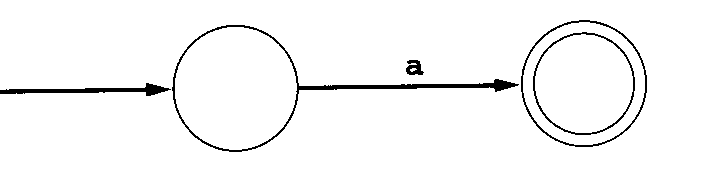

2. Any letter in the alphabet is also a regular expression denoting the set containing a one-letter string consisting of that letter.

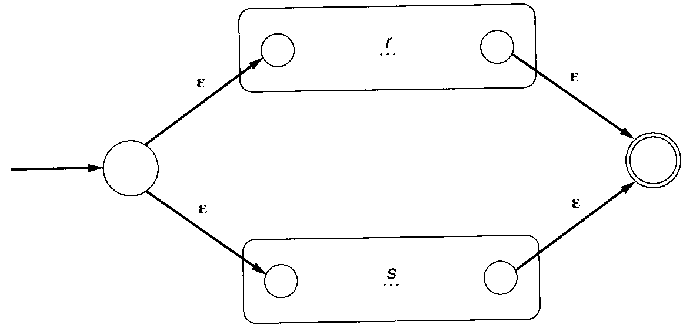

3. For regular expressions r and s,
            r | s
   is a regular expression denoting the union of r and s

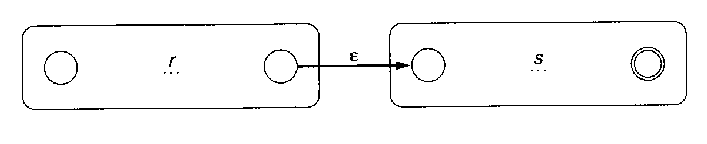

4. For regular expressions r and s,
            r s
   is a regular expression denoting the set of strings consisting of a member of r followed by a member of s
5. For regular expression r,

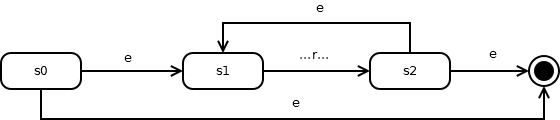

            r*
   is a regular expression denoting the set of strings consisting of zero or more occurrences of r.
6. You can parenthesize a regular expression to specify operator precedence (otherwise, alternation is like plus, concatenation is like times, and closure is like exponentiation)

Lex/Flex Extended Regular Expressions

• For regular expression r,
           r+
  is a regular expression denoting the set of strings consisting of one or more occurrences of r. Equivalent to rr*
• For regular expression r,
           r?
  is a regular expression denoting the set of strings consisting of zero or one occurrence of r. Equivalent to r|ε
• The notation [abc] is short for a|b|c. [a-z] is short for a|b|...|z. [^abc] is short for: any character other than a, b, or c.
• The dot (.) operator matches any one char except newline. [^\n]

Lex extended regular expressions

c

normal characters mean themselves

\c

backslash escapes remove the meaning from most operator characters. Inside character sets and quotes, backslash performs C-style escapes.

"s"

Double quotes mean to match the C string given as itself. This is particularly useful for multi-byte operators and may be more readable than using backslash multiple times.

[s]

This character set operator matches any one character among those in s.

[^s]

A negated-set matches any one character not among those in s.

.

The dot operator matches any one character except newline: [^\n]

r*

match r 0 or more times.

r+

match r 1 or more times.

r?

match r 0 or 1 time.

r{m,n}

match r between m and n times.

r₁r₂

concatenation. match r₁ followed by r₂

r₁|r₂

alternation. match r₁ or r₂

(r)

parentheses specify precedence but do not match anything

r₁/r₂

lookahead. match r₁ when r₂ follows, without consuming r₂

^r

match r only when it occurs at the beginning of a line

r$

match r only when it occurs at the end of a line

Avoid Common Regex Bugs

square bracket abuse

trying to use regex operators inside square brackets; trying to use square brackets as if they were parentheses

good old fashioned operator precedence problems

when in doubt, use parentheses

writing a regular expression that is too loose

be careful especially when using a regex that matches everything; you can read the entire file with one match.

Some Regular Expression Examples

What is the regular expression for each of the different lexical items that appear in C programs? How does this compare with another, possibly simpler programming language such as BASIC? What are the corresponding rules for our language this semester, are they the same as C?

lexical category	Kotlin	BASIC	C
operators	+ - .. ..< ... ++ || -> => +=	the characters themselves such as + or -	For operators that are regular expression operators we need mark them with double quotes or backslashes to indicate you mean the character, not the regular expression operator. Note several operators have a common prefix. The lexical analyzer needs to look ahead to tell whether an = is an assignment, or is followed by another = for example.
reserved words	if val var while break (In Kotlin, a buncha reserved words are only semi-reserved and usable as variable names except in certain contexts. In k0 we'll just fully reserve them.)	the concatenation of characters; case insensitive	Reserved words are also matched by the regular expression for identifiers, so a disambiguating rule is needed.
identifiers	((Letter | '_') (Letter | '_' | UnicodeDigit)*) | "`"[^`\r\n]+"\`" We're not doing Unicode so UnicodeDigit can just become [0-9]. Should we do backtick identifiers?	no _; $ at ends of some; 2 significant letters!?; case insensitive	[a-zA-Z_][a-zA-Z0-9_]*
numbers	Kotlin has a lot, maybe extended from newer C/C++. Hex and binary, etc. We care about a 113-level amount of constants.	ints and reals, starting with [0-9]+	0x[0-9a-fA-F]+ etc.
comments	Kotlin allows nested comments, k0 we will settle for C-like non-nested.	REM.*	C's comments are tricky regexp's
strings	Kotlin seems to have special rules for """ triple quote strings; study those. Kotlin has unicode character escapes that k0 will not need to support. We will support \t\n etc.	almost ".*"; no escapes	escaped quotes
what else?

What are the Best Regular Expressions you can Write for k0 ?

Category	Regular Expression
Variable names	[a-zA-Z_][a-zA-Z0-9_]*
Integer constants	"-"?[0-9]+ | "0x"[0-9A-Fa-f]+
Real # Constants	[0-9]*"."[0-9]+
String Constants	\"([^"\n]|("\\\""))*\"

Lexing Reals

([0-9]+.[0-9]* | [0-9]*.[0-9]+) ...

([0-9]*.[0-9]*)    { return (strcmp(yytext,".")) ? REAL : PERIOD; }

Lexical Attributes and Token Objects

struct token {
   int category;
   char *text;
   int linenumber;
   int column;
   char *filename;
   union literal value;
}

Comments

• C-style multi-line comments? Any flaws in this one?


  "/*"([^*]|"*"+[^/*])*"*"+"/"

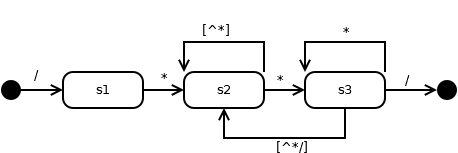

• The finite automaton for C comments is easy, but the regex is difficult!
• Getting the regex all-the-way correct is hard enough that some books recommend cheating* on this part of your flex specification. (*Cheating in this context means, resorting to a non-regular-expression method.)

• Now, how about Kotlin comments? Do we need anything more than to add the C++-style line comment to a (fixed) version of C comments?

  "//".*


Observation

lecture #4 began here

Mailbag

Tell me again, what up with K0 string literal constants?

Well, let me see...

• Your mission is to improve upon

  \"([^"\n]|("\\\""))*\"

• Two available resources are Kotlin's semi-formal "lexical grammar" natural language description, or its corresponding ANTLR code. Our mission could be to turn that ANTLR into legal Flex format.
• Kotlin has about 8 "escape characters" with backslashes like in C: \n \t etc.
• Kotlin has unicode characters but you can skip that and just handle ASCII on your Kotlin strings.
• Kotlin has substitutional things like $foo in strings, but for lexical analysis purposes they are just part of the string constant lexeme.
• Kotlin also has """multiline strings""". Recommended that you handle them with separate regular expression and impose their different rules.
• Flex does have "modes" that you could use, but they are a can of worms. I only go there if I really have to.

I ran into a problem when I tried to return the struct token I created since yylex() returns an int and not a struct. Maybe I misinterpreted the homework instructions but can we go over how we get yylex to return a struct in class?

yylex() returns an int. The token structure should be left in a global variable for main to pick up. In HW2 it says to use a variable named yytoken. Later we will leave it in a global variable dictated to us by the bison parser generator.

Avoid These Common Bugs in Your Homeworks and Labs!

1. yytext or yyinput were not declared global
2. main() does not have its required argc, argv parameters!
3. main() does not call yylex() in a loop or check its return value
4. getc() EOF handling is missing or wrong! check EVERY all to getc() for EOF!
5. opened files not (all) closed! file handle leak!
6. end-of-comment code doesn't check for */
7. yylex() is not doing the file reading
8. yylex() does not skip multiple spaces, mishandles spaces at the front of input, or requires certain spaces in order to function OK
9. extra or bogus output not in assignment spec
10. = instead of ==

lex(1) and flex(1)?

The C code generated by lex has the following public interface. Note the use of global variables instead of parameters, and the use of the prefix yy to distinguish scanner names from your program names. This prefix is also used in the YACC parser generator.

FILE *yyin;	/* set this variable prior to calling yylex() */
int yylex();	/* call this function once for each token */
char yytext[];	/* yylex() writes the token's lexeme to an array */
                /* note: with flex, I believe extern declarations must read
                   extern char *yytext;
                 */
int yywrap();   /* called by lex when it hits end-of-file; see below */

The .l file format consists of a mixture of lex syntax and C code fragments. The percent sign (%) is used to signify lex elements. The whole file is divided into three sections separated by %%:

   header
%%
   body
%%
   helper functions

The header consists of C code fragments enclosed in %{ and %} as well as macro definitions consisting of a name and a regular expression denoted by that name. lex macros are invoked explicitly by enclosing the macro name in curly braces. Following are some example lex macros.

letter		[a-zA-Z]
digit		[0-9]
ident		{letter}({letter}|{digit})*

A friendly warning: the UNIX/Linux/MacOS Flex tool is NOT good at handling input files saved in MS-DOS/Windows format, with carriage returns before each newline character. Some browsers, copy/paste tools, and text editors might add these carriage returns without you even seeing them, and then you might end up in Flex Hell with cryptic error messages for no visible reason. Download with care, edit with precision. If you need to get rid of carriage returns there are lots of tools for that. You can even build them into your makefile. The most classic UNIX tool for that task is tr(1), the character translation utility

Flex Header Section syntax

• %{ and %} mark off any C code that is to be passed through into the top of the generated lex.yy.c file.
• Flex might otherwise think you are defining a macro.
• Lex's syntax is bluntly fast and loose and it will give you cryptic error messages, or no error messages, if you take any liberties.

Flex Body Section

• Each regular expression can have a (C) code fragment enclosed in curly braces that executes when that regular expression is matched.
• For most of the regular expressions the code fragment (called a semantic action) consists of returning an integer that identifies the token category to the rest of the compiler. It is used by the parser to check syntax.
• Some typical regular expressions and semantic actions might include:

  " "		{ /* no-op, discard whitespace */ }
  {ident}		{ return IDENTIFIER; }
  "*"		{ return ASTERISK; }
  "."		{ return PERIOD; }


• You also need regular expressions for lexical errors such as unterminated character constants, or illegal characters.
• If your semantic action executes a return, yylex() is done and has to be called again by the surrounding code. If there is no semantic action or it does not return, yylex() resumes scanning looking for a new regular expression after the action code completes.
• If NO regular expression will match at a given point, yylex() literally just advances and prints one character to standard out, and restarts the scan at the next character.
• If two or more regular expressions match, yylex() uses the longest match
• If two or more regular expressions match at the same longest length possible, yylex() just uses whichever one appears first in the .l file

Actually, your semantic actions in a compiler will do more than just return the category code.

• Helper functions can be called from the actions in a lex file body section
• Helper functions typically compute lexical attributes, such as the actual integer or string values denoted by literals.
• One helper function that is required is yywrap(), which is called when lex hits end of file. If you just want lex to quit, have yywrap() return 1. If your yywrap() switches yyin to a different file and you want lex to continue processing, have yywrap() return 0.
• On some systems, a "lex library" or "flex library" (-ll or -lfl) provides a default yywrap() function that return a 1
• Flex has the directive %option noyywrap which allows you to skip writing this function.
• You can avoid a similar warning for an unused unput() function by saying %option nounput.

Note: other platforms with working Flex installs (including some versions of CENTOS) do not have a flex library, neither -ll nor -lfl. Use %option directives or provide your own functions instead of expecting -lfl to be present. Example:

%{
#include <stdio.h>
%}
%option noyywrap
%%
"abc"	{ printf("!!!"); }
%%
int main()
{
   yyin = stdin;
   return yylex();
}

Lexical Error Handling

• Really, two kinds of lexical errors: nonsense, and stuff in the base language that's not in our subset of that language.
• Include file name and line number in your error messages.
• Avoid cascading error messages -- only print the first one you see on a given line/function/source file.
• You can write regular expressions for common errors, in order to give a better message than "lexical error" or "unrecognized character". (This is how you should approach stuff in the base language but not our subset.)

lecture #5 began here

Welcome to the lecture that tests the hypothesis that Jeffery could teach entire classes just by answering (current and past) students' questions.

Questions for (and from) the floor

How many operators does Kotlin have?

How many reserved words does Kotlin have?

How many other tokens does Kotlin have?

• there is no one correct answer,
• the exact numbers will eventually depend on our Kotlin grammar,
• there is some wiggle room for whether to interpret certain tricky parts as one big complicated token, or multiple tokens.

OK, now, are there questions from zoom or from the floor today?

Mailbag

So do I (have to) count words, or not?

(The individual part of) Lab #1 asks you to adapt just about the simplest possible Flex specification -- a word count program -- to turn it into a mini-scanner. The word count program counts words. HW #2 asks you to finish the job of writing a (Kotlin) scanner. HW #2 does NOT need the scanner to count words any more, but it asks you to count lines and store line numbers in each token.

What should the lexical analyzer look like? where do I start?

In Homework #2 you learn a declarative language called Flex which does almost all the work for you. The program should read source code from a named file and print a sequence of lines of human readable text to standard output. The key bit you need to learn and understand is: how does a flex-generated scanner interact with the rest of the compiler, i.e. its public interface. This is mostly hardwired by Flex. Your only customization option is in what form to make token information available to the later phases of the compiler.

How should our output be visible?

One human readable output line, per token, as shown in hw2.html Build the linked list first, then walk it (visit all nodes) to print the output. Figure out how to do this so output is in the correct order and not reversed!

You mention storing the int and double as binary. That just means storing them in int and double variables, correct?

for constants you construct/convert from the lexeme (string that actually appears in the source code) to the lexical value (int, double, etc.) and then store the result in the corresponding lexical attribute variable.

When do you use extern and when do you use #include in C programming?

extern can be done without an #include, to tell one module about global variables defined in another module. But if you are going to share that extern with multiple modules, it is best to put it in an #include. More generally, use #include in order to share types, externs, function prototypes, and symbolic #define's across multiple files. That is all. No code, which is to say, no function bodies.

Can I add parameters to yylex()?

No, you can't add your own parameters, yylex() is a public interface. You might be tempted to add some parameters to tell it what filename it is reading from, or other such stuff. But you can't. Leave yylex()'s interface alone, the parser will call it with its current interface.

Can I change yylex()'s return type to return a struct token *?

No, you can't change yylex()'s return type, yylex() is a public interface. You might be tempted to return a token structure pointer. Heck, the Java version (Jflex) of flex wants yylex() to return a class instance by default. But this isn't about what you or JFlex wants. It is about what the parser wants. The parser wants an integer category, which it interprets as a Terminal Symbol in its grammar. Give the parser what it wants.

Do you want us to have a .h file for enumerating all the different kind of tokens for HW 2? I was looking into flex and bison and it looks like bison creates a tab.h file that does this automatically.

Yes, in HW2 you create a .h file for these #defines from the group lab exercise; plan to throw it away in favor of the one Bison creates for you in HW#3.

Will you always call "make" on our submissions?

Yes. I expect you to use make and provide a makefile in each homework. Turn in the whole source, not just "changed" or "new" files for some assignments. My script will unpack your .zip file by saying "unzip" in some new test directory and then run "make" and then run your executable. If anything goes wrong (say, you unzipping into a subdirectory the script does not know the name of) you will lose a few points.

On the other hand, I do not want the tool-generated files (lex.yy.c, cgram.tab.c) or .o or executables. The makefile should contain correct dependencies to rerun flex (and later, bison) and generate these files whenever source (.l, .y , etc.) files are changed.

When creating the linked list I see that you have a struct token and a struct tokenlist. Should I create my linked list this way or can I eliminate the struct tokenlist and add a next pointer inside struct token (i.e. struct token *next) and use that to connect my linked list?

The organization I specified - with two separate structs - was very intentional. Next homework, we need the struct tokens that we allocate from inside yylex(), but not the struct tokenlist that you allocate from outside yylex(). You can do anything you want with the linked list structure, but the struct token must be kept more-or-less as-is, and allocated inside yylex() before it returns each time.

I was wondering if we should have a different code for each keyword or just have a 'validkeyword' code and an 'invalidkeyword' code.

Generally, you need a different code for two keywords if and when they are used in different positions in the syntax. For example, int and float are type names and are used in the same situations, but the keywords fun and if, denoting the beginning of a function and the beginning of a conditional expression, have different syntax rules and need different integer codes.

In the specification for the hw it says that if there is no extension given, we should add the required extension to the filename. Should we still accept and run our compiler on other file extensions that could be provided or should we return an error of some sort?

Accept no other extensions besides .kt or no extension. If any file has another extension, you can stop with a message like: "Usage: k0 [options] filename[.kt] ..."

how am I supposed to import the lexer into my main.c file?

Do not import or #include your lexer. Instead, link your lexer into the executable, and tell main() how to call it, by providing a prototype for yylex() to your main.c file. If yylex() sets any global variables (it does), you'd declare those as extern. You can do prototypes and externs directly in main.c, but these things are exactly what header (.h) files were invented for.

Is the struct token supposed to be in our main()? Do we use yylex() along with other variables within lex.yy.c to fill the struct token with the required information?

Rather than overwriting a global struct each time, a pointer to a struct token should be in main(). Function yylex() should allocate a struct token, fill it, and make it visible to main(), probably by assigning its address to some global pointer variable. Function main() should build the linked list in a loop, calling yylex() each time through the loop. It should then print the output by looping through the linked list.

When I compile my homework, my executable is named a.out, not what our compiler is supposed to be named! What do I do?

Some of you who are less familiar with Linux should read the "manual pages" for gcc, make, etc. gcc has a -o option, that would work to allow you to specify the name of your output file. Or in your makefile you could rename the file after building it.

Can I use flex start conditions?

Yes, if you need to, feel free. start conditions, a.k.a. modes, can be tricky though. Use if you need to.

Can I have an extension?

Yeah, but the further you fall behind, the more zeroes you end up with for assignments that you don't do. Late homeworks are accepted with a penalty per day (includes weekend days) except in the case of a valid excused absence. The penalty starts at 10% per day (HW#2), and reduces by 2% per assignment (8%/day for HW#3, 6%/day for HW#4, 4%/day for HW#5, and 2%/day for HW#6). I reserve the right to underpenalize.

Do you accept and regrade resubmissions?

Submissions are normally graded by a script in a batch. Generally, if an initial submission was a fail, I might accept a resubmission for partial credit up to a passing (D) grade. If a submission fails for a trivial reason such as a missing file, I might ask you to resubmit with a lighter penalty.

I have not been able to figure out how sscanf() will help me. Could you point me to an example or documentation.

Yes. Note that sscanf'ing into a double calls for a %lg.

What is wrong with my commandline argument code.

If it is not that you are overwriting the existing arrays with strcat() instead of allocating new larger arrays in order to hold new longer strings, then it is probably that you are using sizeof() instead of strlen().

Can you go over using the %array vs. the standard %pointer option and if there are any potential benefits of using %array? I was curious to see if you could use YYLMAX in junction with %array to limit the size of identifiers, but there is a probably a better way.

After yylex() returns, the actual input characters matched are available as a string named yytext, and the number of input symbols matched are in yyleng. But is yytext a char * or an array of char? Usually it doesn't matter in C, but I personally have worked on a compiler where declaring an extern for yytext in my other modules, and using the wrong one, caused a crash. Flex has both pointer and array implementations available via %array and %pointer declarations, so your compiler can use either. YYLMAX is not a Flex thing, sorry. How do you think you should limit the length of identifiers? Incidentally: I am astonished, to read claims that the Flex scanner buffer doesn't automatically increase in size as needed, and might be limited by default to 8K or so per regex match. If you write open-ended regular expressions, it might be advisable in this day of big memory to say something like

	i=stat(filename,&st);
	yyin=fopen(filename,"r");
	yy_current_buffer = yy_create_buffer(yyin, st.st_size);

to set flex so that it cannot experience buffer overrun. By the way, Be sure to check ALL your C library calls for error returns in this class!

Are we free to explore non-optimal solutions?

I do not want to read lots of extra pages of junk code, but you are free to explore alternatives and submit the most elegant solution you come up with, regardless of its optimality. Note that there are some parts of the implementation that I might mandate. For example, the symbol table is best done as a hash table. You could use some other fancy data structure that you love, but if you give me a linked list I will be disappointed. Then again, a working linked list implementation would get more points than a failed complicated implementation.

Is it OK to allocate a token structure inside main() after yylex() returns the token?

No. In the next phase of your compiler, you will not call yylex(), the Bison-generated parser will call yylex(). There is a way for the parser to grab your token if you've stored it in a global variable, but there is not a way for the parser to build the token structure itself. However you are expected to allocate the linked list nodes in main(), and in the next homework that linked list will be discarded. Don't get attached.

My tokens' "text" field in my linked list are all messed up when I go back through the list at the end. What do I do?

Remember to make a physical copy of yytext each token, because it overwrites itself each time it matches a regular expression in yylex(). Typically a physical copy of a C string is made using strdup(), which is a malloc() followed by strcpy().

Questions about Flex HW

• Your HW is due When, again? FEBRUARY 7 11:59pm
• Do you have any questions?

Brief Comments about Lab #1 Grading

• Labs are almost credit/no-credit
• I do not want your .git/ or .vs/ junk in your lab submission. So from lab #2 forward, if you include extraneous files, I'll dock a point.
• If you are in doubt about whether to include a file, ask.

Mailbag

Can you explain ival/dval/sval again? What should the output look like?

• Source code comes to your compiler as strings of characters from some source file.
• ival/dval/sval are lexical attributes that contain the values denoted by corresponding literal constants.
• For literal constant tokens ONLY, you compute the corresponding type of ival, dval, or sval
• you could add more if your language had more literal types. What about a bval?).
• Mostly this all means converting from the string to what the string means.
• For an ival it might be a call to atoi(). The output for ival should look like the yytext did.
• For dval perhaps something similar; an sscanf() maybe. The output for dval should look like a real number that is really close to the input, but is often off by .000001 or whatever.
• For sval, I think you have to go character by character through the string and "de-escape" it. The output for sval has the double quotes removed and any escape characters have become their true selves, which are usually some non-printing control character that affects output appearance.

How do I handle escapes in svals? Do I need to worry about more than \n \t \\ and \r?

Escapes entail replacing two-or-more characters with a single, encoded character when building an sval from the yytext. '\\' followed by 'n' become a control-J character. We need \n \t \\ and \" -- these are ubiquitous. You can do additional ones like \r but they are not required and will not be tested.

You mentioned that the next homework assignment, we won't be calling yylex() from main() (which is why you previously mentioned you cannot allocate the token structure in main()). I have followed that rule, but I question how will linked lists be set up in the next homework then?

In the next HW, the linked list will be subsumed/replaced by you building a tree data structure. If you built a linked list inside yylex(), that would be a harmless waste of time and space and could be left in place. If you malloc'ed the token structs inside yylex() but built the linked list in your main(), your linked list will just go away in the next HW when we modify main() to call the Bison parser function yyparse() instead of the loop that repeatedly calls yylex().

Can you test my scanner and see if I get an "A"?

No.

Can you post tests so I can see if my scanner gets an "A"?

If you share tests that you devise, for example when you have questions, I will add them to a public collection for use by the class. BTW, test cases are a great example of something that one might find on the internet, and use with proper citation. Compilers often have validation test suites, a public one might exist for Kotlin. I started googling things like

    "Kotlin compiler" lexical test suite

and maybe there is something in there. Tests of some kind. CITE anything you find and use. Did you see the Kotlin language specification section on Syntax and Grammar, which includes a "lexical grammar"?

So if I run OK on a few sample files, do I get an "A"?

Maybe. You should devise coverage tests to hit all described features.

Are we required to be using a lexical analysis error function lexerr()?

• Whether you have a helper function with that particular name is up to you.
• You should report lexical errors in a manner that is helpful to the user. Include line #, filename, and nature of the error if possible.
• Many lexical errors could consist of "token Y is not legal in language X".
• You are allowed to stop with an error exit status when you find an error.

The HW Specification says we are to use at least 2 separately compiled .c files. Does Flex's generated lex.yy.c count as one of them, or are you looking for yet another .c file, aside from lex.yy.c?

lex.yy.c counts. You may have more, but you should at least have a lex.yy.c or other lex-compatible module, and a main function in a separate .c file

For numbers, should we care about their size? What if an integer in the source file is greater than 2^64 ?

We could ask: what do production compilers do? Or we could just say: good catch, your compiler would ideally range check and emit an error if a value that doesn't fit into 64-bits occurs, for either the integer or (less likely) float64 literals. Any ideas on how to detect an out of range literal?

FYI here is what the Kotlin compiler does:

% kotlinc hello.kt
...well, we'll have to try it to find out

I was using valgrind to test memory leaks and saw that there is a leak-check=full option. Should I be testing that as well, or just standard valgrind output with no options?

You are welcome to use valgrind's memory-leak-finding capabilities, but you are only being graded on whether your compiler performs illegal reads or writes, including reads from uninitialized memory.

My C compiles say "implicit declaration of function"

The C compiler requires a prototype (or actual function definition) before it sees any calls to each function, in order to generate correct code. On 64-bit platforms, treat this warning as an error, i.e. you really should fix it.

For built-in library symbols (functions/methods etc.) that we need to reference, what should our compiler be doing and what will we need for this homework?

Good question. These items are processed normally in the lexical and syntax analysis phases*. For semantic analysis, we will need a strategy for pre-initializing the symbol table based on what's been included/imported. *predefined type names such as system-introduced typedef's affect syntax analysis on some common language grammars.

Toy compiler example adapted from the Flex Manpage

• What does this example have that you might use in your HW?
• What does the HW require that needs to be different?

           /* scanner for a toy Pascal-like language */

           %{
           #include <stdio.h>
           /* need this for the call to atof() below */
           #include <math.h>
           %}

           DIGIT    [0-9]
           ID       [a-z][a-z0-9]*

           %%

           {DIGIT}+    {
                       printf( "An integer: %s (%d)\n", yytext,
                               atoi( yytext ) );
                       }

           {DIGIT}+"."{DIGIT}*        {
                       printf( "A float: %s (%g)\n", yytext,
                               atof( yytext ) );
                       }

           if|then|begin|end|procedure|function        {
                       printf( "A keyword: %s\n", yytext );
                       }

           {ID}        { printf( "An identifier: %s\n", yytext ); }

           "+"|"-"|"*"|"/"   { printf( "An operator: %s\n", yytext ); }

           "{"[^}\n]*"}"     {  /* eat up one-line comments */ }

           [ \t\n]+          { /* eat up whitespace */ }

           .         {  printf( "Unrecognized character: %s\n", yytext ); }

           %%

           int main(int argc, char **argv )
               {
               ++argv, --argc;  /* skip over program name */
               if ( argc > 0 )
                       yyin = fopen( argv[0], "r" );
               else
                       yyin = stdin;

               yylex();
               }

Using character sets (square brackets) in Flex

   COMMENT [/*][[^*/]*[*]*]]*[*/]

Lab2 Questions

What are valid variable names?

k0 will use C variable names. Underscore is a letter. A name starts with a letter and then has letters or digits.

Is there length enforcement in variable names?

• I am not aware of Kotlin defining a name length limit.
• It is OK for k0 to live with whatever limit Flex might impose.
• I glossed over a question earlier in the lecture notes that suggested Flex might choke on pattern matches longer than 8K or so by default, and gave code to make that bigger.
• In real life variable names longer than 60 chars are a pain for viewing/editing of source code, and many compilers impose some short practical limit like 256 characters.
• Such limits were a 1970's and 1980's thing, not a 2020's thing.

Can we control for order of flex operations? How do we ensure that we do not tokenize lets say a part of a variable x5xx as an invalid variable 5xx? Is this just automatically done by flex?

In a declarative language you do not ensure or control, you just use Flex's rules. Flex's rules work left to right and match the longest they can at each point that they are invoked. If they are invoked at the beginning of "x5xx" and they can match all of "x5xx" there is no way they'll match "5xx" because it will have been eaten already.

What does # do in kotlin?

Great question. I am not yet aware of it being used except in #!

What does #! Do in kotlin?

It is a kind of comment called a shebang allowed and ignored, probably only at the top of files. It allows for the notion of writing "scripts", like shell scripts. It would be trivial to support but I don't care about it so k0 doesn't have to handle it.

Which type of error should it (HW#2?) check?

In HW#2 we are only looking for lexical errors, I think.

For error checking, how descriptive should it (HW#2?) be?

Filename, linenumber, brief message with the nature of the error as you understand it

Mailbag Questions

Integer literal values include 0. Since integer literal contains integer value, should we consider negative sign/value in our integer-literal RE or just the positive values including 0?

In some languages the minus sign in -123 is not part of the integer literal, it is an application of the unary negation operator. So that's two tokens, two calls to yylex() and two codes returned. And all integer literals are non-negative. However I agree that my intuition begs -123 to be a single token.

When there is a lexical error, should the scanner terminate with an error message in stdout and stop scanning or just output an error message and keep scanning the rest of the input(s) and at the end return with 1. I think it should output errors with error count and keep reading to find out all the errors and at the end return 1 if error count is more than 0. I just want to make sure about the HW requirement.

Thank you for your opinion. A production compiler would probably try to recover from a lexical error and continue. You are not required or expected to do so. If a lexical error occurs, you are allowed to print an error message and then terminate with the error exit code.

since Operators and Punctuations all are one character symbols, why are we dividing in two groups? When we parse using Flex, we are going to assign different token values for each of those allowed symbols? Just to understand it better, whether in HW, should we consider a special case besides just RE match?

In lexical analysis the distinction of operators and punctuation as two groups is unnecessary. It is more of a syntax and semantics differentiation, and even there, since they all return different integer codes, the distinct groups just inform the organization of the document.

Characters enclosed in apostrophes. i. e. '' ' ' 'a' 'abc' are valid string literal, right?

Apostrophes are for character literals, which must always be of length 1. '' can't be empty; the stuff inside '' might be more than one letter if it is an escape sequence or whatever. Kotlin would allow Unicode in there but k0 does not.

Do we want apostrophes (') or double quotes (“) to represent string literal?

String literals are always and only enclosed in double quotes.

A finite automaton (FA) is an abstract, mathematical machine, also known as a finite state machine, with the following components:

1. A set of states S
2. A set of input symbols E (the alphabet)
3. A transition function move(state, symbol) : new state(s)
4. A start state S0
5. A set of final states F

Implementing Finite Automata

• We aren't going to study Flex's implementation in detail; I am sure you could have a lot of fun with that.
• The word finite refers to the set of states: there is a fixed size to this machine. No "stacks", no "virtual memory", just a known number of states.
• The word automaton refers to the execution mode: there is no brain, not so much as a instruction set and sequence of instructions.

dfa v1

   while ((c=getchar()) != EOF) S := move(S, c);

dfa v2

   while ((c=getchar()) != EOF) { S := move(S, c); switch(S) { ... } }

To go faster than this, you can stop representing the current state in some variable S, and instead make the state an implicit property of the instruction/program counter register.

Questions

Do we have to do augmented operations?

Our guiding principle is: does an intro course use it? An intro course usually uses += and -=. Let's go ahead and include those two. Not so much *=, /=, etc.

DFAs

S = {s0, s1, s2}
E = {a, b, c}
move = { (s0,a):s1; (s1,b):s2; (s2,c):s2 }
S0 = s0
F = {s2}

Finite automata correspond in a 1:1 relationship to transition diagrams; from any transition diagram one can write down the formal automaton in terms of items #1-#5 above, and vice versa. To draw the transition diagram for a finite automaton:

• draw a circle for each state s in S; put a label inside the circles to identify each state by number or name
• draw an arrow between S_i and S_j, labeled with x whenever the transition says to move(S_i, x) : S_j
• draw a "wedgie" into the start state S0 to identify it
• draw a second circle inside each of the final states in F

The Automaton Game

DFA Implementation

state := S0
for(;;)
   switch (state) {
   case 0:
      switch (input) {
         'a': state = 1; input = getchar(); break;
         'b': input = getchar(); break;
	 default: printf("dfa error\n"); exit(1);
         }
      break;
   case 1:
      switch (input) {
         EOF: printf("accept\n"); exit(0);
	 default: printf("dfa error\n"); exit(1);
         }
      }

lecture #6 began here

Deterministic Finite Automata Examples

C Comments:

Nondeterministic Finite Automata (NFA's)

Fortunately, one can prove that for any NFA, there is an equivalent DFA. They are just a notational convenience. So, finite automata help us get from a set of regular expressions to a computer program that recognizes them efficiently.

NFA Examples

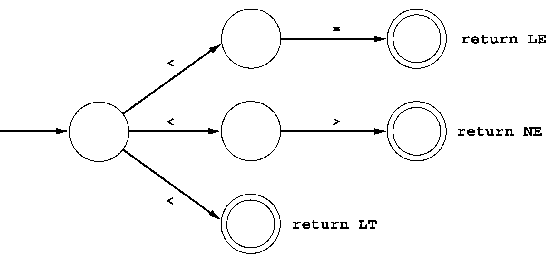

multiple transitions on the same symbol handle common prefixes:

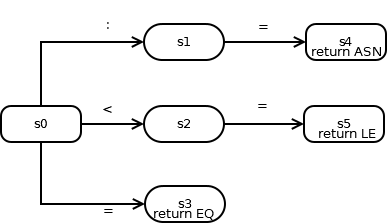

factoring may optimize the number of states. Is this picture OK/correct?

Mailbag

My team just turned in the ytab.h that we found amongst the Kotlin ANTLR code. Was that cool?

Yeah sure. But the purpose of the exercise was to study and learn what are the lexical patterns and meaning associated with each type of token. If you just have an integer code and you don't know what character(s) or pattern(s) in the source code that token refers to, your job wasn't finished.

What is the intended behavior of """ ? We could accept it as a string with content of " or as an empty string with a second " token.

When in doubt, test on a Kotlin compiler. It is the start of a multi-line string, yes?

For character literals, if any special kind of escaped character is typed that is technically two characters (for example, \n), that should be handled automatically by flex’s character encoding right? However, \’ is not one of those characters, and we think it should be allowed within a character literal. We did what we thought was correct in the above character regular expression, but are unsure if this is the right idea.

Flex interprets \' as a single apostrophe character, but when you write the regular expression for character literals, you have to write a regular expression that explicitly accounts for escape sequences. To get a regular expression that accepts backslash followed by apostrophe you might be writing \\\' not just \'

Are types, as in let k: i64 = 1;, identifiers?

k is an identifier... in a lot of programming languages like C a built-in type like i64 is not an identifier, but maybe Kotlin is different. Let's look at that question further.

Are we doing type paramters for lists

If k0 has "arrays" they are a class type like

val initArray = Array<Int>(3) { 0 }

Does that look about right to you? Explicit element type and size.

If we are, is the whole thing an identifier? Or are the brackets operators?

type templates, the < and > are separate tokens, and what was inside them would be zero or more tokens (one, in this example).

Relating to defining Multiple-byte operators and Punctuation, what would be the values associated with them. As each other expression we use their ascii representation and for the other keywords I have them continue after 257, would we just provide them their own ascii values? In order to not have any warning shown on ‘make’ I just assigned them their own values starting at 300. If in the future there is any required value please let us know, thanks!

Multi-byte operators and punctuation don't have a clean ASCII code to use, so yes, return a unique integer greater than 257 for them. A number greater than 300 works, since it is a number greater than 257.

NFA examples - from regular expressions

(a|c)*b(a|c)*

(a|c)*|(a|c)*b(a|c)*

(a|c)*(b|ε)(a|c)*

Regular expressions can be converted automatically to NFA's

1. For ε, draw two states with a single ε transition.

2. For any letter in the alphabet, draw two states with a single transition labeled with that letter.

3. For regular expressions r and s, draw r | s by adding a new start state with ε transitions to the start states of r and s, and a new final state with ε transitions from each final state in r and s.

4. For regular expressions r and s, draw rs by adding ε transitions from the final states of r to the start state of s.

5. For regular expression r, draw r* by adding new start and final states, and ε transitions
   • from the start state to the final state,
   • from the final state back to the start state,
   • from the new start to the old start and from the old final states to the new final state.


6. For parenthesized regular expression (r) you can use the NFA for r.

NFA's can be converted automatically to DFA's

Operations to keep track of sets of NFA states:

ε_closure(s)

set of states reachable from state s via ε

ε_closure(T)

set of states reachable from any state in set T via ε

move(T,a)

set of states to which there is an NFA transition from states in T on symbol a

NFA to DFA Algorithm:

Dstates := {ε_closure(start_state)}
while T := unmarked_member(Dstates) do {
	mark(T)
	for each input symbol a do {
		U := ε_closure(move(T,a))
		if not member(Dstates, U) then
			insert(Dstates, U)
		Dtran[T,a] := U
	}
}

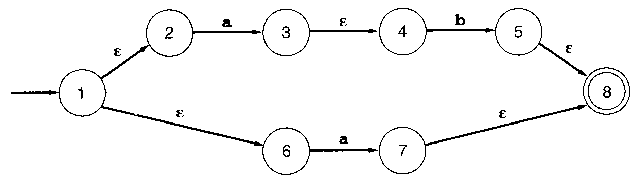

Practice converting NFA to DFA

...







...did you get:

OK, how about this one:

HW#3

What do you mean, for ival/dval/sval, by telling us to "store binary value here"

A binary value is the actual native representation that corresponds to the string of ASCII codes that is the lexeme, for example what you get when you call atoi("1234") for the token "1234".

I am getting a lot of "unrecognized rule" errors in my .l file

Look for problems with regular expressions or semantic actions prior to the first reported error. If you need better diagnosis, find a way to show me your code. One student saw these errors because they omitted the required space between their regular expressions and their C semantic actions.

Do you have any cool tips to share regarding the un-escaping of special characters?

Copy character-by-character from the yytext into a newly allocated array. Every escape sequence of multiple characters in yytext represents a single character in sval. Inside your loop copying characters from yytext into sval, if you see a backslash in yytext, skip it and use a switch statement on the next character. See below for additional discussion.

Is a function name also an identifier?

Yes.

C Pointers, malloc, and your future

• Draw "memory box" pictures of your variables. Pencil and paper understanding of memory leads to correct running programs.
• Always initialize local pointer variables. Consider this code:

  void f() {
     int i = 0;
     struct tokenlist *current, *head;
     ...
     foo(current)
  }


  Here, current is passed in as a parameter to foo, but it is a pointer that hasn't been pointed at anything. I cannot tell you how many times I personally have written bugs myself or fixed bugs in student code, caused by reading or writing to pointers that weren't pointing at anything in particular. Local variables that weren't initialized point at random garbage. If you are lucky this is a coredump, but you might not be lucky, you might not find out where the mistake was, you might just get a wrong answer. This can all be fixed by

     struct tokenlist *current = NULL, *head = NULL;


• Avoid this common C bug:

  struct token *t = (struct token *)malloc(sizeof(struct token *)));


  This compiles, but causes coredumps during program execution. Why?
• Check your malloc() return value to be sure it is not NULL. Sure, modern programs have big memories so you think they will "never run out of memory". Wrong. malloc() can return NULL even on big machines. Operating systems often place limits on memory far beneath the hardware capabilities. wormulon (or cs-course42) is likely a conspicuous example. Machine shared across 40 users? You may have a lower memory limit than you think.

HW Tips

better solutions' lexer actions looked like

...regex...      { return token(TERMSYM); }

where token() allocates a token structure, sets a global variable to point to it, and returns the same integer category that it is passed from yylex(), so yylex() in turn returns this value.

Put in enough line breaks.

Use <= 80 columns in your code, so that it prints readably.

Comment non-trivial helper functions. Comment non-trivial code.

Comment appropriate for a CS professional reader, not a newbie tutorial. I know what i++ does, you do not have to tell me.

Do not leave in commented-out debugging code or whatever.

I might miss, and misgrade, your good output if I can't see it.

Fancier formatting might calculate field widths from actual data and use a variable to specify field widths in the printf.

You don't have to do this, but if you want to it is not that hard.

Remind yourself of the difference between NULL and '\0' and 0

NULL is used for pointers. The NUL byte '\0' terminates strings. 0 is a different size from NULL on many 64-bit compilers. Beware.

Avoid O(n²) or worse, if at all possible

It is possible to write bad algorithms that work, but it is better to write good algorithms that work.

Avoid big quantities of duplicate code

You will have to use and possibly extend this code all semester.

Use a switch when appropriate instead of long chain of if-statements

Long chains of if statements are actually slow and less readable.

On strings, allocate one byte extra for NUL.

This common problem causes valgrind trouble, memory violations etc.

On all pointers, don't allocate and then just point the pointer someplace else

This common student error results in, at least, a memory leak.

Don't allocate the same thing over and over unless copies may need to be modified.

This is often a performance problem.

Check all allocations and fopen() calls for NULL return (good to have helper functions).

C library functions can fail. Expect and check for that.

Beware losing the base pointer that you allocated.

You can only free() if you still know where the start of what you allocated was.

Avoid duplicate calls to strlen()

especially in a loop! (Its O(n²))

Use strcpy() instead of strncpy()

unless you are really copying only part of a string, or copying a string into a limited-length buffer.

You can't malloc() in a global initializer

malloc() is a runtime allocation from a memory region that does not exist at compile or link time. Globals can be initialized, but not to point at memory regions that do not exist until runtime.

Don't use raw constants like 260

use symbolic names, like LEFTPARENTHESIS or LP

The vertical bar (|) means nothing inside square brackets!

Square brackets are an implicit shortcut for a whole lot of ORs

If you don't allocate your token inside yylex() actions...

You'll have to go back and do it, you need it for HW#2.

If your regex's were broken

If you know it, and were lazy, then fix it. If you don't know it, then good luck on the midterm and/or final, you need to learn these, and devise some (hard) tests!

lecture #7 began here

Some questions

What are the operators and keywords that we definitely need to support?

What operators and keywords would an intro course use? +-*/= if/while/...

Are we going to compile for x86_64 assembly or bytecode?

Still thinking about it.

What are some examples of code that our compiler should be able to handle?

We should establish a body of K0-acceptable Kotlin. I may produce such a body, or may assign it as a lab exercise.

Should our compiler be able to import and use Java libraries like regular Kotlin can?

Depending on our reference kotlin base, we may have a limited number of Java imports with a limited number of methods we decide to support.

Do we need to worry about null safety?

It is pretty hard to be Kotlin without doing something about null safety. Possibilities include: allowing ? syntax but not enforcing anything, enforcing it in the type system (compile time type checks) but no runtime enforcement, or full enforcement. We have about two HW's to decide.

Do we need to worry about optimizing the resulting code, and if so, what level of optimization is expected?

Unfortunately, optimization is generally the subject of more advanced compiler courses. In this first compiler course, we will introduce some concepts from optimization but will not try to do much in that area.

Do we need to have helpful error messages and warnings if the compiler encounters something strange during compilation?

You need to have error messages that are not actively incorrect and/or misleading, if possible.

On resizing arrays in C

The problem can be summarized as: step through yytext, copying each character out to sval, looking for escape sequences.

Space allocated with malloc() can be increased in size by realloc(). realloc() is awesome. But, it COPIES and MOVES the old chunk of space you had to the new, resized chunk of space, and frees the old space, so you had better not have any other pointers pointing at that space if you realloc(), and you have to update your pointer to point at the new location realloc() returns.

There is one more problem: how do we allocate memory for sval, and how big should it be?

• Solution #1: sval = malloc(strlen(yytext)+1) is very safe, but wastes space.
• Solution #2: you could malloc a small amount and grow the array as needed.

  sval = strdup("");
  ...
  sval = appendstring(sval, yytext[i]); /* instead of sval[j++] = yytext[i] */


  where the function appendstring could be:

  char *appendstring(char *s, char c)
  {
      i = strlen(s);
      s = realloc(s, i+2);
      s[i] = c;
      s[i+1] = '\0';
      return s;
  }


  Note: it is very inefficient to grow your array one character at a time; in real life people grow arrays in large chunks at a time.
• Solution #3: use solution one and then shrink your array when you find out how big it actually needs to be.

  sval = malloc(strlen(yytext)+1);
  /* ... do the code copying into sval; be sure to NUL-terminate */
  sval = realloc(sval, strlen(sval)+1);


Syntax Analysis

Context Free Grammars

• A set of terminal symbols, T
• A set of nonterminal symbols, N
• A start symbol, s, which is a member of N
• A set of production rules of the form A -> ω, where A is a nonterminal and ω is a string of terminal and nonterminal symbols.

Example CFG

  nt1 : nt2 nt3 nt4 ;
  nt2 : OPEN ;
  nt3 : nt3 X | nt3 ;
  nt4 : CLOSE ;

Reading Assignment

• Read Thain Chapters 4-6
• Read Flex+Bison optional book chapters on Bison or alternatively, you may read sections 1, 3, 4, 5 and 6 of the Bison Manual

Derivation

let X = the start symbol s
while there is some nonterminal Y in X do
   apply any one production rule using Y, e.g. Y -> ω

Context Free Grammar Example (from BASIC)

Program : Lines
Lines   : Lines Line
Lines   : Line
Line    : INTEGER StatementList
StatementList : Statement COLON StatementList
StatementList : Statement
Statement: AssignmentStatement
Statement: IfStatement
 REMark: ... BASIC has many other statement types

AssignmentStatement : Variable ASSIGN Expression
Variable : IDENTIFIER
 REMark: ... BASIC has at least one more Variable type: arrays

IfStatement: IF BooleanExpression THEN Statement
IfStatement: IF BooleanExpression THEN Statement ELSE Statement

Expression: Expression PLUS Term
Expression: Term
Term      : Term TIMES Factor
Term      : Factor
Factor    : IDENTIFIER
Factor    : LEFTPAREN Expression RIGHTPAREN
 REMark: ... BASIC has more expressions

Kotlin Context Free Grammar Example

insert your CFG ideas here
...

HW#2 Status

• I did a first cut at grading HW#2
• If you haven't submitted yet, or if you submitted but your HW#2 is sketchy, I would encourage you to visit with me and get help.
• We do need working HW#2's in order to get HW#3 working.

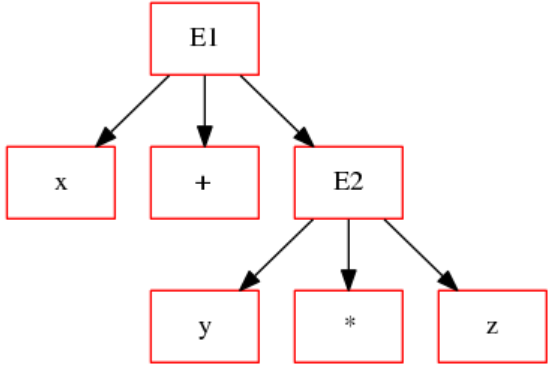

Grammar Ambiguity

E -> E + E
E -> E * E
E -> ( E )
E -> ident

vs.

The grammar is ambiguous, but the semantics of the language dictate a particular operator precedence that should be used. One way to eliminate such ambiguity is to rewrite the grammar. For example, we can force the precedence we want by adding some nonterminals and production rules.

E -> E + T
E -> T
T -> T * F
T -> F
F -> ( E )
F -> ident

How can a program figure that x + y * z is legal?
How can a program figure out that x + y (* z) is illegal?

YACC (and Bison, etc.)

YACC files end in .y and take the form

declarations
%%
grammar
%%
subroutines

%token a

declares terminal symbol a; YACC can generate a set of #define's that map these symbols onto integers, in a y.tab.h file. Note: don't #include your y.tab.h file from your grammar .y file, YACC generates the same definitions and declarations directly in the .c file, and including the .tab.h file will cause duplication errors.

%start A

specifies the start symbol for the grammar (defaults to nonterminal on left side of the first production rule).

The grammar gives the production rules, interspersed with program code fragments called semantic actions that let the programmer do what's desired when the grammar productions are reduced. They follow the syntax

A : body ;

Bottom Up Parsing (How Does Bison's yyparse() Work?)

Example. For the grammar

(1)	S->aABe
(2)	A->Abc
(3)	A->b
(4)	B->d

abbcde
aAbcde
aAde
aABe
S

Handles

1. matches a right hand side of a production rule in the grammar and
2. whose reduction to the nonterminal on the left hand side of that grammar rule is a step along the reverse of a rightmost derivation.

Comments on HW#2

I ran some tests on everyone's HW#2 submission. If you didn't "make" you got a fix-and-resubmit instruction on Canvas

Testing is for basic functionality

Testing will get more elaborate in later HW's

The executable is to be named k0 and not anything else

In a Makefile, CFLAGS is for -c compile steps, LDFLAGS is for link steps

Typical to define CFLAGS in this class to be -c -g -Wall.

Do not mix compile lines with link lines.

The link line should link together .o files. The larger the program, the more important it is to not recompile all files whenever one changes.

Mailbag

I am trying to get a better picture of the communication that happens between Flex and Bison. From my understanding:

1. main() calls yyparse()
2. yyparse() calls yylex()
3. yylex() returns tokens from the input as integer values which are enumerated to text for readability to the .y file
4. yyparse() tries to match these integers against rules of our grammar.
   (if it is unsuccessful, it errors (shift/reduce, reduce/reduce, unable to parse))

Is this correct?

• 1-3 are correct.
• 3 also includes: yylex() sets a global variable so that yyparse() can pickup the lexical attributes, e.g. a pointer to struct token.
• 4 is correct except that shift/reduce and reduce/reduce conflicts are warnings that are found/reported at bison time, not at yyparse() runtime. But yes yyparse() can find syntax errors and we have to report them meaningfully.

Does yylval have any use to us? I read that it is used to bring the value of the token into the parser.

Yes, yylval is how yyparse() picks up lexical attributes. We will talk about it more in class.

How would we add artificial tokens, such as to insert a token, perhaps an INDENT token, , without skipping real tokens when we return?

Save the real, found token in a global or static, or figure out a way to push it back onto the input stream. Easiest is a one-token saved (pointer to a) token struct. One could build a whole stack of saved tokens if one wished. In a previous Lab #2 and its aftermath, we worked out how to generate the sequence of integer codes that were needed. This question gets more interesting once the token structures in (formerly yyoken and now) yylval must be considered.

insertion?

Two possibilities come to mind:

1. Modify output of bison to replace the call to yylex() with myyylex(),
2. Modify output of flex to change its declaration of yylex to realyylex()

A traditional Linux tool for sneaky stuff like this is sed(1), which could be invoked from your makefile. -->

Does our language support empty statements?

Most mainstream languages allow these. Do they get used in a CSE 107 or 113 class? Unlikely. Occasionally I find them handy IRL. I would say they are optional in k0.

I previously created one token to handle all cases of unsupported reserved words. Is there any reason I should keep the individual tokens for the unsupported reserved words in the .y file? Or can I just use my catch all token. Same goes for unsupported operators/punctuations.

You can use your catch-all token if your lexical analyzer stops with a good error message (filename, linenumber, what's wrong). You don't have to have grammar rules for the things not our language, if those things would be caught in a fatal lexer error. This is why I am not making you "recover" from lexical errors; so your grammar can become smaller and you'll have less tree constructing to do in HW#3.

How would you recommend "de-escaping" strings?

I recommend the following algorithm:

outputstring gets the empty string
for every character inside the double quotes
   if the character is backslash then
      do a big switch statement on the next character
         (backslash followed by t, for example, means outputstring gets a '\t' appended to it
   else the character was not a backslash, so just append it to the outputstring

It can look humorous, and very meta, to be switching on case 't' outputting a '\t', on case 'n' outputting a '\n' etc.

Part 2, Step 6 of Lab 3 says: "Modify your HW2 main() function to call yyparse() one time in place of the while loop that called yylex() over and over again." In HW2, we used each call to yylex() to fill each node of our linked list. For Lab 3, are we supposed to keep the linked list?

You don't need to build a linked list in Lab 3. If you did, you'd have to build it entirely inside yylex(), but instead for Lab 3 you are probably just ignoring the tokens. In Lab 4 we are going to be building tree nodes and putting the struct token * allocated in yylex() into the tree instead of into a linked list.

I read we could use '{' and such as terminal symbols in the grammar, instead of names like LCURLY. What are the pros and cons. I know in C, '{' is just a small integer.

I used to dislike grammars using character constants for their one-letter terminal symbols, instead of names. I found the mixture of character literals and name to be jarring, and found consistency to be comforting in my newbieness. But Bison starts named terminals above 256 for a reason. When a terminal is only one character long, using its ASCII code is the shortest, most human readable way to identify it. So I have taken to preferring that.

What about no-op statements like 2+2?

It is OK to not allow no-op statements like 2+2. You can impose a requirement to use the value somehow, like by writing it out or assigning it to a variable.

The full language grammar has many symbols that have not been mentioned that we might not want in our subset language. Should we support them, or not? If we don't have to support them does that mean we don't have to include all the grammar rules that use them?

Feel free to ask about specifics. The published grammar is for the whole language not our subset. You would need to delete from it en masse to get down to our subset. While that might be helpful from a code-management perspective, it would also leave you saying a more vague "parse error" message for many legal constructs for which a more helpful message is "this feature is not supported by XXX", where XXX is our language.

How about a tool that would generate #define numbers for grammar rules automatically from our .y files?

I wrote a cheap hack version 0 of such a tool awhile back. I have not tested it on our .y, it might be buggy.

Will we get marked off for any reduce/reduce conflicts we have?

Yes you will lose points if you turn in a HW#2 with reduce/reduce conflicts.

How are we supposed to integrate the token names we created in the lexer with those token names in the Bison .y file?

Any which way you can. Probably, you either rename yours to use their names, or rename theirs to use your names.

what action should be taken in the case of epsilon statements

HW#2 spec says to use $$=NULL. I could also imagine using $$=alctree(EPSILON, 0) to build an explicit epsilon leaf, for people who don't like to have to check for NULL everywhere.

Will I be setting myself up for failure if I attempt to write my own grammar from scratch?

Go right ahead and ignore the provided grammar if you want; feel free to instead derive your grammar from the reference manual.

Stack					Input
$						ω$

1. Shift one symbol from the input onto the parse stack
2. Reduce one handle on the top of the parse stack. The symbols from the right hand side of a grammar rule are popped off the stack, and the nonterminal symbol is pushed on the stack in their place.
3. Accept is the operation performed when the start symbol is alone on the parse stack and the input is empty.
4. Error actions occur when no successful parse is possible.

k0 clarification on ->

Q: Does k0 have the token -> ??

As far as I know, it does

• k0.html shows -> used in functions to specify return types.
• It is optional in function syntax; omitting it is equivalent to saying ->()

Type Names

Type names are an example where in some languages if we are not careful, all the beautiful CFG parsing theory we've used up to this point breaks down and flex/bison compilers tend to cheat a little.

• Once a typedef is introduced (which can first be recognized at the syntax level), certain identifiers should be legal type names in addition or instead of being identifiers.
• The lexical analyzer may have to know whether the syntactic context needs a type name or an identifier at each point in which it runs into one of these names.
• Feedback from syntax or semantic analysis back into lexical analysis is not un-doable but it requires extensions added by hand to the machine generated lexical and syntax analyzer code.

typedef int foo;
foo x;                    /* a normal use of typedef... */
foo foo;                  /* try this on gcc! is it a legal global? */
void main() { foo foo; }  /* what about this ? */

What CSE 423 Should do About Type Names This Semester

The YACC Value Stack

• YACC's parse stack contains only "states"
• YACC maintains a parallel set of values
• $ is used in semantic actions to name elements on the value stack
• $$ denotes the value associated with the LHS (nonterminal) symbol
• $n denotes the value associated with RHS symbol at position n.
• Value stack typically used to construct the parse tree
• Typical rule with semantic action: A : b C d { $$ = tree(R,3,$1,$2,$3); }

YACC Value Stack's Element Type: YYSTYPE

• The default value stack is an array of integers
• The value stack can hold arbitrary values in an array of unions
• The union type is declared with %union and is named YYSTYPE

Midterm Exam Date Discussion

HW#2 Grading Status

• I am making progress grading the first batch of HW#2 submissions
• I will probably post most of the grades before Wednesday's class
• Grading mistakes happen. Feel free to explain your circumstances, especially if your program met the specifications exactly but didn't receive the grade it should.
• If you have a late submit/resubmit/regrade, I will try to do all of those after HW#2 grades are posted.

Old Mailbag

During my "make" the linker complains about redefinition of yyparse() and missing main(). What's going on?

If your main() function is in k0.c, you had better not name your grammar file k0.y, or be careful if you do -- on at least some platforms (probably this refers to Linux and GNU make) the "make" program has default rules that assume if a .c file has the same name as a .y file, it is supposed to build the .c from the .y by running yacc and renaming the foo.tab.c as foo.c!

What is %prec about? What about %left and %right?

Great question. %prec TERM directs Bison to apply the current grammar rule with the precedence of TERM. In a .y file, fake terminal symbols (like THEN) can be introduced to avoid shift/reduce conflicts. Note that neither %prec nor TERM are symbols on the righthand side of whatever production rule is being given -- if there aren't any other symbols then that precedence is being applied to an epsilon rule. %prec is used to apply some precedence rules specified via %left, %right etc. to production rules in the Bison grammar where there is not a symbol that can be declared as %left or %right. %left and %right are in turn, Bison's way of tie-breaking ambiguous grammar rules that would otherwise generate shift/reduce or reduce/reduce conflicts.

I am working on the tree but I am confused as to how to approach it. For example package has the following rule:

package: LPACKAGE sym ';'

The tree struct shown on the HW assignment sheet has kids which are of type struct tree and a leaf which is of struct token. Since package has two tokens the LPACKAGE and ';' how should I approach saving this to the tree struct. Should everything be saved under kids? With how I have my %union right now, LPACKAGE and ';' are tokens and sym is struct tree.

The example tree type in the HW spec, which you are not required to follow, illustrates one possible way to incorporate terminal symbols as leaves. If you follow it, separate from your struct token for each leaf you allocate a struct tree, with 0 children, whose prodrule is the token's terminal symbol #, and for a treenode with 0 children and a terminal symbol as a prodrule, the code that goes back through the tree afterwards would know to not visit the children array, but instead look at the leaf field for a token. To do all this with your current %union with pointer to struct token on the tree for terminal symbols, every time you are about to insert a tree node with terminal symbols, you would allocate a leaf node to hold the token *. So your rule for a package would allocate three tree nodes total, one for the parent and two for the two terminal symbols being placed into leaves. There are other ways that one can get it done, but this would work.

lecture #9 began here

Getting Lex and Yacc to talk

• YACC uses a global variable named yylval, of type YYSTYPE, to receive lexical information from the scanner.
• Whatever is in this variable yylval gets copied onto the top of the value stack each time yylex() returns to the parser

Options:

1. Declare that struct token may appear in the %union. In that case the value stack is a mixture of struct node and struct token. You still have to have a mechanism for how do tokens get wired into your tree. Are all children of type union YYSTYPE, and you use the prodrule R to tell which are which?
2. For each terminal symbol, allocate a "leaf" tree node with 0 children and point its "leaf" field at your struct token. 0 children implies "don't use the kids field" and "a non-null leaf might be present"
3. declare a tree type that allows tokens to include their lexical information directly in the tree nodes, perhaps tree nodes contain a union that provides EITHER an array of kids OR a struct token.

Getting all this straight takes some time; you can plan on it. Your best bet is to draw pictures of how you want the trees to look, and then make the code match the pictures. Given pictures, I can help you make the code do what the pictures say. No pictures == "Dr. J will ask to see your pictures and not be able to help if you can't describe your trees."

Declaring value stack types for terminal and nonterminal symbols

Example: in the cocogram.y that I gave you we could add a %union declaration with a union member named treenode:

%union {
  nodeptr treenode;
}

%type < treenode > function_definition

%token < tokenptr > SEMICOL

Examples

How to interpret your HW#2 Grade

• This was our "getting more acquainted with Dr. J" homework
• Later homeworks will be weighted heavier
• What was tested is not a complete representation of your work
• I do not grade on a curve
• I do grade you relative to your peers
• I do correct grades when mistakes happen
• ... catch up, persevere, and/or seek more help as needed

Mailbag

Does Flex have "matching groups"?

No.

Well, Does Flex have a good way to match Kotlin strings literals like

      br##"foo #"# bar"##

LOL, what do your CSE 342 instincts tell you about having to match an equal number of # signs before and after the double quotes?

• This looks a lot like braⁿ"stuff"bⁿ to me.
• While aⁿbⁿ is not regular, as per the 342 proof, it is easy to write the regexes for matching any particular n=k.
• I would probably write regexes for n=1, n=2, maybe n=3 and then one pattern that says if you see the start of one with more than 3 pound-signs, just print an error message saying we don't do that, and exit.
• k0 does not need to support all the weird string literal types, but ideally we would recognize them and print a good error message, rather than just let undefined stuff through.

My compiler is complaining about strdup being missing. What up?

It turns out -std=c99 removes strdup() because it is not part of that standard. Possibly solutions include: not using -std=c99 when compiling files that call strdup(), or writing/providing your own strdup().

When I compile my .y file, bison complains spitting out a bunch of warnings about useless nonterminals and rules. how much attention should I pay to this?

"Useless" warnings sound innocuous, but they mean what they say. You probably have something wrong that will have to be fixed. Everything but shift/reduce conflicts is potentially serious, until you determine otherwise. If you can't figure out what some Bison error is after giving it the reasonable college try, send it to me by e-mail or schedule an appointment. If I am not available or you are remote, we may schedule a Zoom meeting. You might have to learn some Zoom. I might have to setup a camera on my many machines, and remember my Zoom credentials.

It seems we soon will have to implement a hash table. If this is the case, what would be a reasonable size (# buckets) of the table? n=20?

Fixed-size tables should use a prime. For the size of inputs I will ever use in this class, probably a prime less than 100 would do. How about n=41 ?

My syntax checker seems to be having some issues on control words such as for, while, etc.. Interestingly enough if I replace the return type of these statements in my .l file with an integer return type then the error goes away.

The return type of yylex() definitely must be int and the integers returned definitely must be those yyparse() #define's in a .tab.h file generated by running "bison -d" on the .y file. To check if lexer and parser are talking OK, turn on global variable yydebug=1 in main() before calling yyparse() (and turn on YYDEBUG in the .y file if its not on already).

My HW didn't get all the points. Can I resubmit with fixes?

In many cases you need the fixes for use in your compiler the rest of the semester.

Generally, if an initial submission was fail (for example, below 12/20), I accept a resubmission for partial credit up to a passing grade. If a submission fails for a trivial reason such as a missing file, I might ask you to resubmit with a lighter penalty.

As a reminder, I do Not grade on a 90/80/70/60 scale.

In the example A : b C d {$$ = tree(R,3,$1,$2,$3);} ; Suppose C is a terminal and b and d are non-terminals. Then $2 will be OK, but when will I be able to get the data that $1 and $3 need to be set to?

Bison parsers are bottom up. You don't reduce this grammar rule or execute this code until sometime after the handle b C d has already been parsed, and in that process the production rules for b and d have already executed, just as surely as the shift of C which placed whatever yylval held at that time onto the value stack in $2. If the rules for b and d had actions that said {$$=...} at that point in the past, then $1 and $3 now will be holding what was assigned to $$ back in those rules' semantic actions.

In the example A : b C d {$$ = tree(R,3,$1,$2,$3);} ; to what doth R refer?

R was intended to be an integer code that allows you to tell, when walking through the tree later on, what production rule built that node. I would typically do a code for each nonterminal, gapped large enough that R can be (nonterminal+rule#forthatnonterminal). Suppose this was the first of three production rules that build an A. The integer might be (__A__ + 1) to denote the first A rule.

I'm considering having some sort of stack that keeps track of the parent you should currently be attaching children to.

You can do anything you want, but bison's value stack is that stack and and at each level you should allocate a node for $$ and attach all of its children. That is it.

Should we be defining our own integer codes for token types or just use the ones in our *.tab.h file from HW#1?

You can't define your own codes, you have to use the codes that bison generates. You'll have to modify your lexer to use bison's integers, or your flex and bison will not work together.

Are yylval's types defined in the %union?

Yes, yylval is of type YYSTYPE, the type bison generates for the %union.

What is the actual value of a $n variable?

Before your bison grammar's semantic action code triggers, $1, $2, ... etc. will be holding either (A) whatever you put in yylval if the corresponding symbol is a terminal, or (B) whatever you put in $$ for its rule if the symbol is a non-terminal.

What is required of a for-statement?

You don't have to do a declaration of a variable in a for initializer. Saying for(int i=1; ...) was a C++ thing.

I have spent 30 hours and am not close to finishing adding the hundreds of grammar rules and tree construction semantic actions required for HW#2!

As a professional programmer, you should invest time to master a powerful programmer's editor with a key-memorizing macro facility that can let you insert semantic actions (for example) very rapidly. If you've been typing them in by hand, ouch! Paste the right thing 500 times and then just tweak. Or paste all the constructors with the same number of children in batches, so you have less to tweak because you already pasted in the right number of kids.

Do I need to add %type <treeptr> nonterm for every non-terminal symbol in the grammar in order to have everything work

yes. If you are lucky, the %type's are in there in a comment, and all you have to do is uncomment them and add the <treeptr> (or whatever) part.

Are we supporting (syntactically) nested classes/structs?

no

What do I do with epsilon rules? Empty tree nodes?

I previously said to use either $$ = NULL or $$ = alctree(RULE, 0). Whether the latter is preferable depends on what will make your tree traversals easier later on, in HW#3, and maybe whether the encoding of an empty leaf with RULE would help you in reading the tree and knowing what to do with it. Saying $$=NULL implies you will have to check children to see if they are NULL before you try to visit them. Never setting $$ to NULL means you can "blindly" traverse child pointers if a parent has nkids > 0.

All of the leaves in the tree structure are/can be made of lex tokens. To that point then, what are the non-leaves supposed to be? I think I may have over thought this point so I am not quite sure.

Non-leaves (i.e. internal nodes) correspond to non-terminal symbols, built from particular production rules.

For the structure of the tree, HW#2 provides a possible "setup".

struct tree {
   int prodrule;
   int nkids;
   struct tree *kids[9];
   struct token *leaf;
}

While I understand nkids (number of kids this node has), *kids[9] (a pointer array to up to 9 kids), and leaf (the lex token), what exactly is the prodrule? I am fairly certain that this is the production rule, but I am not exactly sure what it associates with.

The prodrule integer encodes what production rule was used to build this node, which includes (of course) what non-terminal it represents, and what syntactic role its children played. By the way, *kids[9] is an array of 9 pointers to kids, not a pointer to an array of nine kids.

What exactly is in $1 or $2 or ... when I am at a reduction building a tree node in $$ for some non-terminal?

• If the rule's first righthandside symbol is a terminal, what is in $1 is whatever you assigned to yylval when that terminal was matched in yylex.
• If the rule's first righthandside symbol is a non-terminal, what is in $1 is whatever you assigned to $$ when that non-terminal was reduced.

I was wondering if it is ok to have a linked list of syntax trees, where the syntax tree for the current source file be inserted into a linked list (of syntax trees), then at the end of main(), after generating syntax trees for each file in command line argument, walk through the linked list and print out each syntax tree.

What is expected is that for each file, you build the tree, return to main(), print it out, and then move on to the next filename. But building a linked list of trees and looping again over that to print things out would be fine. The main thing between each file on the command line is to clear out the type name table; each file is being compiled independently of whatever came before them during that compilation process.

Conflicts in Shift-Reduce Parsing

shift-reduce

a shift reduce conflict occurs when the grammar indicates that different successful parses might occur with either a shift or a reduce at a given point during parsing. The vast majority of situations where this conflict occurs can be correctly resolved by shifting.

reduce-reduce

a reduce reduce conflict occurs when the parser has two or more handles at the same time on the top of the stack. Whatever choice the parser makes is just as likely to be wrong as not. In this case it is usually best to rewrite the grammar to eliminate the conflict, possibly by factoring.

S->if E then S
S->if E then S else S

In many languages two nested "if" statements produce a situation where an "else" clause could legally belong to either "if". The usual rule (to shift) attaches the else to the nearest (i.e. inner) if statement.

Mailbag

I don't get how to start tree traversal.

yyparse() should build a syntax tree, but it returns an integer that indicates whether there were parse errors. You either traverse your tree inside yyparse() before it returns (a bit weird) or you traverse your tree outside yyparse() after it returns...by assigning the tree to a global variable.

I have mysterious syntax errors, what do I do?

• make sure that your lexer is including the .tab.h that corresponds to your bison file
• #define YYDEBUG and set yydebug=1 and read the glorious output, especially the last couple shifts or reduces before the syntax error.
• implement semi-colon insertion

I can't fix some of the shift/reduce conflicts, what do I do?

Nothing. You do not have to fix shift/reduce conflicts.

I can't fix some of the reduce/reduce conflicts, what do I do?

These generally reflect a real bug and will cost you a few points on HW, but they mighty or might not cost you more points on test cases. It is only a deal breaker and has to be fixed if it prevents us from parsing correctly and building our tree. Sometimes epsilon rules can be removed successfully by adding grammar rules in a parent non-terminal that omit an epsilon-deriving child, and then modifying the child to not derive epsilon. This might or might not help reduce your number of reduce/reduce conflicts.

With the default error handling, I am getting an error on the last line of the file: syntax error before '' token. It looks like an EOF error, but I cannot figure out how to fix it, as when I add an <<EOF>> rule to my lexer, it just hangs there, and still produces this error.

Error on EOF might be because the grammar expects one more semi-colon, maybe your EOF regex should return one the first time it hits in each file. By the way, I usually don't have to write a <<EOF>> regex, yylex() returns the value on EOF that yyparse() expects. If you enable YYDEBUG and turn on yydebug you will get a detailed explanation of the parse and where it is failing when you run your parser, which may help you. Feel free to schedule a Zoom session.

(1)	S -> id LP plist RP
(2)	S -> E GETS E
(3)	plist -> plist, p
(4)	plist -> p
(5)	p -> id
(6)	E -> id LP elist RP
(7)	E -> id
(8)	elist -> elist, E
(9)	elist -> E

Another Example Reduce Reduce Conflict

T : F | F T2 ;
T2 : p F T2 | ;
F : l T r | v ;

lecture #10 began here

Mailbag

What up with the group assignments

Everything is negotiable, but by default, these groups will persist through the rest of the semester. Do your best to contribute to your team. Each person individually turn in a ranking of 0..2 for each team member each lab and each homework from now on. One person turn in the lab or homework deliverables.

Do we need to catch/handle the pound character #? Should it be an error?

Any character not part of a legal token is a lexical error. Maybe # is used in shebang lines, but if it appears by itself not in a shebang regex, it is an error.

Are we expected to account for composition and precedence for literals at this stage of lexical analysis?

No, feel free to bring up specific examples, but the K0 subset of Kotlin is allowed to be simpler including not doing composition of literals other than things like println(" x is $x"). These ya-basics will be implemented via generated code.

Chains of (often optional) NL tokens are causing me grammar hell! I have like hundreds of reduce/reduce conflicts! Can I drop them and require semi-colons like C does?

The preferred options are to write a grammar that doesn't need semi-colons and works anyhow, or write a grammar that needs semi-colons, and perform "semi-colon insertion" (see below). If you require semi-colons where Kotlin would not, it will cost you a few points, around 10% on HW#3.

A Short Primer on Semi-colon Insertion

Without a marker token, it seems that it is hard to tell the end of one statement and the beginning of the next. And it seems that when newlines are used for this purpose, that creates its own problems, especially when a complex statement needs to span across multiple lines.

Semi-colon insertion was invented by 1980 and "perfected" by 1983 but new languages seem to keep inventing alternative ways to do it. Kotlin seems to use newlines as explicit tokens, but getting that right seems to have eluded multiple CSE 4023 students in Spring 2025, and having explicit tokens for whitespace is generally to be avoided for exactly the reasons some of you are experiencing AND because it overcomplicates the grammar. One student suggested dropping the newline tokens and requiring semi-colons everywhere, and I can live with that, but if we break every Kotlin program for K0 that is a bummer*. So here are a couple ways to get rid of newline tokens by inserting semicolons, an attempt to have your cake and eat it too.

The Go Way

break continue fallthrough return

++ -- ) ] }

Icon-style

    if (NewlineSeen && IsBeginner(CurrentToken) && IsEnder(PreviousToken)) {
       save the CurrentToken for next time
       return a Semi-colon token
    }

  yylex(){
    if (SavedToken != NULL) {
      rv = SavedToken
      SavedToken = NULL
      yylval = rv
      return rv->category
      }

    CurrentToken = flexyylex()

    if (NewlineSeen && IsBeginner(CurrentToken) && IsEnder(PreviousToken)) {
       SavedToken = yylval
       construct and return a Semi-colon token
    }

    return CurrentToken->category
  }

Optionals that aren't optional in K0: Simplify your grammar if need be

In practice, I am a pragmatist, and if hacking out a lot of Kotlin that's not in K0 might make the difference between finishing HW3 or not, hack away. I will test it on fairly simple common Kotlin stuff. Here's a long list of stuff not in K0:

• shebangs
• annotations and modifiers
• package declarations
• fancy imports (we will do a few basic imports)
• type aliases
• anonymous initializers
• companions
• type parameters (generics, right?)
• class declarations (K0 will use a few built-in classes)
• lambdas, anonymous functions
• try/catch
• missing types on variables, values, return types, etc.; anything that requires type inferencing

On Debugging Bison Grammars

use bison -v

learn to read its output file. Find the (pushdown automata) state where a reduce/reduce conflict is occurring. Look at what production rule(s) have reduces in that state. Rewrite one or more of those production rule(s)

get rid of epsilon productions whenever possible.

For an "optional" item it is often possible to go up one level in the grammar to where the optional item is used in a right hand side, and replace the production rule with two copies, one with the optional item present and non-optional, and another copy of the production rule with the optional item absent.

add production rules incrementally

Sometimes it is pretty hard to debug from the .output file. If you try to debug an entire language grammar there might be too many interacting parts. You may have more success working from the bottom up and/or adding one grammar rule at a time. Catch the offending production rule in the act.

Grammar Conflict Examples, (cont'd)

Another Example Shift Reduce Conflict

T : F g;
T : F T2 g;
T2 : t F T2 ;
T2 : ;
F : l T r ;
F : v ;

The .output file generated by "bison -v" explains these conflicts in considerable detail. Part of what you need to interpret them are the concepts of "items" and "sets of items" discussed below.

Mailbag

I am running into an issue with my grammar when trying to allocate a tree node that uses a precedence rule. For example, I have a grammar:

expr_nostruct: lit {$$ = allocateTree("expr_nostruct", 1, $1); }
    | %prec IDENT path_expr {$$ = allocateTree("expr_nostruct", 2, $1, $2); }


When I try to build the grammar I get the error:


I noticed that if a grammar rule contains a %prec before a terminal symbol, Bison does not count it as a node that can be passed into the allocateTree function. Do we just ignore terminal symbols if they contain %prec, or is there a way of pulling the information?

Yeah, so %prec XYZ means "apply this rule using the same precedence as if you had an XYZ terminal". The %prec and the XYZ are not symbols on the stack and do not have $n associated with them, so reducing a path_expr to a expr_nostruct with the precedence of an IDENT will only have one symbol (path_expr) on the righthand side. You can allocateTree with one child or let the default ({ $$=$1; }) take effect.

What do we do with Kotlin-not-k0 statements? Do we just remove them completely from the grammar?

• If they use Kotlin-not-k0 tokens that result in error-exits in the lexical analyzer, you may be able to remove the associated grammar rules.
• We don't want to remove them from the grammar if it will cause the parser to report a syntax error before it even gets to the illegal token. That would cause misleading syntax error messages for such Kotlin-not-k0 constructs.
• If you do remove Kotlin-not-k0 rules from the grammar, save them somewhere and restore them if it turns out that misleading premature syntax error messages are a problem.

What should be the value for (int) production rule in alctree()? Should I just give it some make-up integer? Like 1004, 1005, 1006,...

Yes, you can just make up integer codes, I recommend codes that are not overlapping with tokens, so starting at 1000 is not a bad idea.

I can't understand how I can correctly make the root of the tree - how do we supposed to start the root in the start symbols?

In Bison there is really only one start symbol. If there are multiple production rules that build the start symbol, you would assign the root in each of them. If you assigned to root everywhere(!), it would be silly but OK/harmless in that the last one assigned is probably the one that is for the "real" start symbol.

In some long grammar rules, I'm confused how the OR ( the vbar | ) works. Does it just use the OR on one word before and after the vbar? For example, I have this grammar:

optional_comma_test: ',' test | {  $$=NULL; };

So in which way the parser will understand this?

optional_comma_test:          ( ',' test ) | {  $$=NULL; }     ;
optional_comma_test:   ','    ( test        | {  $$=NULL; } )      ;

And should I just put parenthesis in cases like this?

Vertical bar is the lowest possible precedence and actually denotes the start of another production rule, so your interpretation #1 is used without need for parentheses. Parentheses are not used in Bison to force precedence.

Should we make a tree node for optional type of grammar? An example is

optional_expr: expr | {  $$=NULL; } ;

This example shows two production rules. The first one has only one child and does not require a new tree node. The second one has zero production rules and can be represented by either NULL or by a special leaf that represents the epsilon.

How are we supposed to make tree for a prime_type_grammar: for example, I did:

statements: stmt stmt_prime;
stmt_prime: stmt_prime stmt;
stmt_prime: {  $$=NULL; } ;

(which is equivalent to the following)

  statements: stmt statements;
  statements: stmt ;

How do we make tree for this? (do alctree for the first two statements?) And am I doing this correctly at all? I saw your file_input_prime in the lab and I just copied the way. As of typing it right now, I saw 1 of your mailbox's answer saying to just make a epsilon leaf node tree for epsilon rule, so if I just do that for all grammar rules, will that solves this question?

In this example stmt_prime has two production rules. The first one has two symbols on the righthand side and needs a binary tree node for those two children. The second production rule is an epsilon and needs either a NULL or a special leaf that represents the epsilon.

YACC precedence and associativity declarations

%right ASSIGN
%left PLUS MINUS
%left TIMES DIVIDE
%right POWER
%%
expr: expr ASSIGN expr
    | expr PLUS expr
    | expr MINUS expr
    | expr TIMES expr
    | expr DIVIDE expr
    | expr POWER expr
    | IDENT
    ;

• Use a special predefined token error where errors expected
• On an error, the parser pops states until it enters one that has an action on the error token. Then it discards input symbols until what follows the error token would be legal.
• For example: statement: error ';' ;
• The parser must see 3 good tokens before it decides it has recovered.
• yyerrok tells parser to skip the 3 token recovery rule
• yyclearin throws away the current (error-causing?) token
• yyerror(s) is called when a syntax error occurs (s is the error message)

Improving (YACC, Bison) Syntax Error Reporting

You can easily add information in your own yyerror() function. For example, for decades GCC emitted messages that look like:

goof.c:1: parse error before '}' token

You can do at least that good using a yyerror() function that looks like

void yyerror(char *s)
{
   fprintf(stderr, "%s:%d: %s before '%s' token\n",
	   yyfilename, yylineno, s, yytext);
}

• yytext is provided by yylex() but only good for the current token.
• The s passed into yyerror() is not very specific and we might like to do better.
• Flex can generate a line number for you if you give it the right option, but once again it is only good for the latest/current token.
• yyfilename is something you would have to declare and maintain yourself.

You could instead, use the error recovery mechanism to produce better messages. For example

lbrace : LBRACE | { error_code=MISSING_LBRACE; } error ;

Another related option is to call yyerror() explicitly with a better message string, and tell the parser to recover explicitly:

package_declaration: PACKAGE_TK error
	{ yyerror("Missing name"); yyerrok; } ;

But, using error recovery to perform better error reporting runs against conventional wisdom that you should use error tokens very sparingly. What information from the parser determined we had an error in the first place? Can we use that information to produce a better error message?

lecture #11 began here

Mailbag

I've got reduce/reduce errors! What do I do?

• Run "bison -v" to generate the .output file for your grammar.
• Look for "reduce/reduce" conflicts in that .output file
• Learn to read the .output file's notation, including the concept of items.
• Modify your grammar. Maybe refactoring to remove epsilon productions or merge duplicating sets of production rules for similar syntaxes.

What do we do with the warning of "nonterminal useless in grammar"? I'm guessing it means those grammars will not be used during parsing? Is that correct? Are we ignoring them or are we supposed to fix them somehow?

Nonterminal useless in grammar means what it says: there is no path from the start symbol that ever uses those non-terminals so they are dead code and will be unused. If it is for a feature that is not in PunY it might be harmless, but if it is a feature that normal Python programs would use then it indicates a bug where some production rule is missing or wrong, that should have referenced that non-terminal from someplace higher in the grammar.

I got my trees printing for toy examples, am I done?

You are responsible for thoroughly testing your code, including constructing test cases. For homeworks from now on, try and provide tests so that each tree-constructor code fragment that you write gets used by at least one test case (achieve statement-level test coverage). We will have one or more labs on constructing test cases.

When we are calling alctree(), does the order that we pass the non-terminals to alctree matter?

Hmm, in theory, no. In practice, I recommend that you Keep It Simple and stick to the order given in the production rule.

For error reporting, do we have to use yyerror? I was thinking of implementing another argument in my alctree() function to accept error types (no error, error Kotlin stmt not in k0, anything else I can think of) to do so, but I do not know if you would allow it and/or if it would be more difficult to do that instead of yyerror.

yyerror() is the official syntax error reporting mechanism of Bison. It is called implicitly by the parser unless you say yerrok inside a rule with an error recovery token. It would be difficult to subvert this in the general case. But

• you can annotate your syntax tree with whatever you want.
• you can have context free grammar rules for "errors" that turn them into non-errors as far as the parser is concerned.
• Although I like

    yyerror("such-and-such Kotlin feature is not in k0");


  in such "error" grammar rules, you can call a different function with different parameters if you want.
• you can put tree nodes into your syntax tree that explicitly represent errors, and then process/report them later on in semantic analysis

Can I delete some rules and tokens in Kotlin not in k0? I am quickly running out of time because there are many hundreds of production rules in k0gram.y and adding a call to alctree() for each one is taking a lot of time and I am getting all sorts of weird errors.

Do whatever you have to do. I mean, long-term I recommend you get really proficient at a powerful code editor that has a good keyboard-replay-macros capability and such. But short-term you can do what is necessary. I recommended pasting in a call to an error function as the semantic action for many unused Kotlin features, but deleting those grammar rules would at least turn those things into syntax errors instead of allowing unsupported features to result in undefined behavior from your compiler. So yeah, I will take what I can get. A small number of points will be associated with Kotlin-not-k0 errors.

Is there a way to debug syntax errors in our grammar .y file? We are really having a hard time to solve the syntax error ( incomplete sequence error) that we are getting from our bison file.

You may use a combination of valgrind + gdb, but your best bet may be to turn on bison debugging:

1. %{ #define YYDEBUG 1 %} in your .y file header section
2. extern int yydebug; ... and yydebug=1; in your main() module

I did that yesterday for a stuck student, and it showed that they were returning an IDENT token for one of their reserved words.

What questions have you got for me, regarding HW#3?

When Leaves in a Syntax Tree are Needed...and when NOT

• You can omit leaves in the syntax tree when they add no semantics information and won't affect code generation.
• Example:

  Statement : Expr ';' ;

  The semi-colon was just used for parsing.
• You have to include leaves when they add crucial information. Examples include literal constants, variable names...
• Often the "semantics information" is also encoded in the grammar rule. If so, including the leaf is optional and redundant.
• Example:

  E : E '+' E ; {
     // maybe OK to omit the '+' in $2 as it is implied by EXPR_RULE_1
     $$ = alctree(EXPR_RULE_1, "add", 2, $1, $3);
     }
  E : E '-' E ; { $$ = alctree(EXPR_RULE_2, ...); }


• It is "OK" to include extra leaves you don't strictly need.
• You might actually want those extra leaves for error reporting, just for their filename/line#/column# e.g. in the event of a semantic error
• But most of the time, the syntax tree should be minimal, both for the sake of speed and debuggability.
• Generally if there are multiple/differing values that return the same token category integer, you have to include the leaf.
• Example:

  E : E BINARY_OP E ; { $$ = alctree(EXPR_RULE_1, 3, $1, $2, $3); }


Clarification on Error Recovery Behavior

statement: error ';' ;

What happens if a syntax error occurs in the middle of an expression? The error recovery rule, interpreted strictly, says to build a statement from the precise sequence of an error followed by a semicolon. If an error occurs in the middle of an expression, there will probably be some additional tokens and subexpressions on the stack after the last stmts, and there will be tokens to read before the next newline. So the rule is not applicable in the ordinary way.

But Bison can force the situation to fit the rule, by discarding part of the semantic context and part of the input. First it discards states and objects from the stack until it gets back to a state in which the error token is acceptable. (This means that in performing error recovery, the current statement's subexpressions that are already parsed are discarded, back to the last complete statement.) At this point the error token can be shifted. Then, if the old lookahead token is not acceptable to be shifted next, the parser reads tokens and discards them until it finds a token which is acceptable. In this example, Bison reads and discards input until the next newline so that the fourth rule can apply. Note that discarded symbols are possible sources of memory leaks, see Freeing Discarded Symbols, for a means to reclaim this memory.

LR Syntax Error Messages: Advanced Methods

• Knowing even just the parse state is enough to do pretty good error messages.
• yystate is not part of YACC's public interface!
• you may have to play some tricks to get the information into yyerror() from yyparse().
• In Bison, yystate is a local variable.
• You could pass yystate as a parameter for yyerror() to access it. Say, for example:

  #define yyerror(s) __yyerror(s,yystate)


Merr

• The implementation of it Icon programming language is where I learned to use yystate in this way.
• Knowing what parse state goes with what error message was evolved by manual trial and error!
• My Icon project predecessors only needed/bothered to work out a custom message for the top 30 or 40 most frequent syntax errors.
• Even that much was such a pain to do by hand that junior grad students were advised not to change the language grammar (a poor policy for a research language)
• Worse: every time you change the grammar all the parse state numbers might completely change!

To solve this problem, I created a tool called Merr. Merr can generate your yyerror() function with good syntax error messages based on examples: you supply the sample syntax errors and messages, and Merr figures out which parse state integer goes with which message. Merr also uses the yychar (current input token) to refine the diagnostics in the event that two of your example errors occur on the same parse state. See the Merr web page.

Example merr input. The format is:
      error-fragment:::message\n

procedure p(); 1 := 2 end
::: missing semicolon or operator
procedure main()
every x do { }
}
end
::: too many closing curly braces
procedure main()
  y := X(1)
  z := "a","b"
end
::: missing semicolon or operator
global::: unexpected end of file
global x y::: invalid global declaration
global x, , y::: missing identifier
procedure p(x) end::: missing semicolon
link procedure p(x)
end
::: link list expected

• I am looking for someone to work on adding Java (byacc/j) support to Merr!
• If you are interested, please see me or send me a note.

Recursive Descent Parsing

• Write 1 procedure per nonterminal rule
• Within each procedure, a) match terminals at appropriate positions, and b) call procedures for non-terminals.
• Pitfalls:
  1. left recursion is FATAL
  2. must distinguish between several production rules, or potentially, one has to try all of them via backtracking.

Recursive Descent Parsing Example #1

E -> E + T
E -> T
T -> T * F
T -> F
F -> ( E )
F -> ident

int F()
{
   int t = yylex();
   if (t == IDENT) return 6;
   else if (t == LP) {
      if (E() && (yylex()==RP) return 5;
      }
   return 0;
}

Comment #2: in a real compiler we need more than "yes it parsed" or "no it didn't": we need a parse tree if it succeeds, and we need a useful error message if it did not.

Question: for E() and T(), how do we know which production rule to try? Option A: just blindly try each one in turn. Option B: look at the first (current) token, only try those rules that start with that token (1 character lookahead). If you are lucky, that one character will uniquely select a production rule. If that is always true through the whole grammar, no backtracking is needed.

Question: how do we know which rules start with whatever token we are looking at? Can anyone suggest a solution, or are we stuck?

Below is an industrious start of an implementation of the corresponding recursive descent parser for non-terminal T. Now is student-author time, what is our next step? What is wrong with this picture?

int T()
{  // save where the current token is
   if (T() && (yylex()==ASTERISK) && F()) return 3;
   // restore the current input pointer to the saved location
   if (F()) return 4;
   return 0;
}

Removing Left Recursion

E -> E + T | T
T -> T * F | F
F -> ( E ) | ident

E  -> T E'
E' -> + T E' | ε
T  -> F T'
T' -> * F T' | ε
F  -> ( E ) | ident

for i := 1 to n do
   for j := 1 to i-1 do begin
      replace each Ai -> Aj γ with productions
         Ai -> δ1γ | δ2γ | ... | δkγ, where
            Aj -> δ1 | δ2 | ... | δk are all current Aj-productions
      end
   eliminate immediate left recursion

lecture #12 began here

Mailbag

Can I have an extra day to complete the lab?

Labs are almost credit/non-credit and should reflect ~3 hours work. They are not graded for correctness. I grab them as a batch at some point after they are due and often won't notice ones that are a little late that are submitted by the time I grab the batch. Also, illnesses and other documented university-excused reasons may absolve lateness.

Can I have an extra day to complete the homework?

Homeworks are more serious than labs, but illnesses and other documented university-excused reasons still absolve lateness. Other than that, please get help when needed and do your best.

I have reduce/reduce conflicts on simple identifiers that might either be an expression or a type name, encountered on a closing right parenthesis. What do I do?

Maybe K0 does not need the rule

	type: LPAREN type RPAREN


What do you all think? More generally: delete or alter the Kotlin syntax grammar as necessary to get regular Kotlin examples parsing OK. Don't think of it as something you can't change. Own your version of it, without deliberately introducing not-Kotlin syntax.

My group member doesn't respond to e-mails. What do I do?

It is reasonable for us to modify and/or reconstitute groups for future assignments. If you would like to be in a new group or additional members for an existing group, please let me know. If you are working alone by choice: on the one hand I've taught compilers many years with all homeworks as individual assignments and that has been fine. On the other hand, we have a course learning outcome for group work, and writing a compiler is a Big job.

How do we get from the list of token rules into storing them in a tree.

Wrap your struct token in a struct tree, and stick it in yylval.treeptr... all from inside of yylex(). yyparse() will copy yylval onto the value stack. You will later see it as a $1 or $2 or whatever.

Where is this tree supposed to be stored?

• The malloc() calls mean the tree structs will be stored on the heap. But we access them via pointers that are stored on the value stack (and in yylval).
• Not in just one place: various subtrees will be on the value stack as you put the tree together.
• The root of the tree will at the very end of parsing be something that you want to store in a global variable, probably.

How it is supposed to be built?

These trees get built bottom-up one node at a time. One node gets created for each shift or reduce operation.

How to prepare the tree for the next layer of the compiler.

After assembling the whole tree, stick it (the root) in a global variable.

In what location do we store the head pointer to the tree?

In the last "reduce" operation, it is normal to finally assemble the whole syntax tree and either stick it in a global variable for use after yyparse() returns, or else to pass it as a parameter in a call to the rest of the compiler, from within yyparse().

where do we store the current branch we are adding onto in the tree?

It goes on the top of the value stack. when we are reducing a production this is done by assignment to $$. When we are shifting a token, it is done by assignment to yylval.

In what order does the tree get built and how is it structured?

It gets built bottom-up from leaves (terminals) to internal nodes (non-terminals). It is structured as structures, some of which contain pointers to their children.

I have my lex file set up and it calls a function that looks at the current yytext and then allocates a new tree node with that token. Is there some yy variable that is intended to represent this current token?

yylval is copied onto the value stack, where it is subsequently referred to as $1, $2, or $3, etc.

I assume the values that bison is looking at are the ones that are returned from the lexer.

For terminal symbols that is correct.

So (yylex() returns) this integer value, and bison looks though its rules and attempts to parse each of the rules as if it works in parallel...

Well, bison analyzed your grammar and generated a pushdown automaton that tracks all possible shifts/reduces at each point...

then when the parser reduces for one production rule, it runs the code with the $$ = ... to assign it to... where?

Assigning to $$ is specifying the value to be pushed onto the value stack in the slot that corresponds to the non-terminal that we have just built on the parse stack using this grammar rule.

how do we understand when a string of tokens should be put all together as children, compared to when we have a string of tokens that need to be a chain?

That will depend precisely on how the context free grammar production rules are organized. If you have a production

  A: B C D E F G


then you have to see six things previously parsed successfully before you can reduce them down to an A node. If you have

  A : B C
  C : C D | ;
  D : D E | ;
  E : E F | ;
  F : F G | ;


Your "tree" might look more like a linked list when you get finished.

What exactly gives the shape of the tree? I know that it is formed from the rules defined in bison, but I am having trouble visualizing it.

At each node of the tree, the shape (a.k.a. "fan-out", or # of children) is defined by the # of symbols on the righthand side of the production rule used to construct that node. As an example, for the Go language, the distribution at one point in time was about as follows:

Size of RHS	# of Rules of that size
0	19
1	98
2	46
3	67
4	17
5	21
6	2
7	1
8	2

Kotlin would have a similar distribution, but different (LOL).

I totally have an example where a shift-reduce conflict was a Real Problem even though you said we could ignore shift-reduce conflicts!

Ouch! A real shift-reduce problem! You might fix it by simply changing a right recursion to a left recursion! Very cool, we finally know why Bison warns of this kind of ambiguity in the grammar: sometimes it is really a problem. I have taken the liberty of reducing your example to just about its simplest form:

%%
Program:	DeclarationList ProgramBody ;
ProgramBody: 	Function SEMICOLON ProgramBody	| ;
Function:	Declaration OPEN_PAREN CLOSE_PAREN ;
DeclarationList:Declaration SEMICOLON DeclarationList | ;
Declaration:		    INT IDENTIFIER ;

The corresponding input that dies on this is:

int x;
int main();

How about a tool that would generate numbers automatically from our grammar .y files? It should perhaps use negative numbers (to avoid overlap/conflicts with Bison-generated numbers for terminal symbols).

We looked again to see if Bison had an option to generate that, but I am not aware of one. Awhile back I wrote a cheap hack version 0 of such a tool...feel free to adapt it or rewrite something similar.

Where We Are

• We started in on recursive descent parsing by observing that for some grammar rules, we could just write the code easy peasy by matching the first token and then calling nonterminal functions.
• Then we hit a wall, because the other nonterminals were left recursive, we had to solve the infinite recursion problem, which is detailed in your dragon book.
• If we ever clear the left recursion hurdle, THEN we can worry about the backtracking problem: if we try to parse rule 1, and get into it a ways, and find that it doesn't work, we have to "undo" all our parsing (and possibly lexing) back to the starting point in order to try subsequent grammar rules for a given nonterminal.

Removing Left Recursion, part 2

case 1: trivial

A : A α | β

A : β A'
A' : α A' | ε

E : E op T | T

E : T E'
E' : op T E' | ε

case 2: non-trivial, but immediate

A : A α1 | A α2 | ... | β1 | β2

A :  β1 A' | β2 A' | ...
A' : α1 A' | α2 A' | ... | ε

case 3: mutual recursion

1. Order the nonterminals in some order 1 to N.
2. Rewrite production rules to eliminate all nonterminals in leftmost positions that refer to a "previous" nonterminal. When finished, all productions' right hand symbols start with a terminal or a nonterminal that is numbered equal or higher than the nonterminal no the left hand side.
3. Eliminate the direct left recusion as per cases 1-2.

Left Recursion Versus Right Recursion: When does it Matter?

E : T + E | T - E | T

Recursive Descent Parsing Example #2

S -> A B C
A -> a A
A -> ε
B -> b
C -> c

procedure S()
  if A() & B() & C() then succeed # matched S, we win
end

procedure A()
  if yychar == a then { # use production 2
     yychar := scan()
     return A()
     }
  else
     succeed # production rule 3, match ε
end

procedure B()
   if yychar == b then {
      yychar := scan()
      succeed
      }
   else fail
end

procedure C()
   if yychar == c then {
      yychar := scan()
      succeed
      }
   else fail
end

Backtracking?

S -> cAd
A -> ab
A -> a

S -> cAd
A -> a A2
A2-> b
A2-> (ε)

S -> if E then S
S -> if E then S1 else S2

S -> if E then S S'
S'-> else S2 | ε

Reading Assignment

• Read the Thain textbook, Chapter 7
• (fwiw the corresponding Jeffery chapter is Chapter 6)

Some More Parsing Theory

First(α)

1. First(X) starts with the empty set.
2. if X is a terminal, First(X) is {X}.
3. if X -> ε is a production, add ε to First(X).
4. if X is a non-terminal and X -> Y₁ Y₂ ... Y_k is a production, add First(Y₁) to First(X).

5. for (i = 1; if Yi can derive ε; i++)
           add First(Yi+1) to First(X)


First(a) examples

Last time we looked at an example with E, T, and F, and + and *. The first-set computation was not too exciting and we need more examples.

stmt : if-stmt | OTHER
if-stmt:  IF LP expr RP stmt else-part
else-part: ELSE stmt | ε
expr: IDENT | INTLIT

Follow(A)

Follow(A) for nonterminal A is the set of terminals that can appear immediately to the right of A in some sentential form S -> aAxB... To compute Follow, apply these rules to all nonterminals in the grammar:

1. Add $ to Follow(S)
2. if A -> aBβ then add First(β) - ε to Follow(B)
3. if A -> aB or A -> aBβ where ε is in First(β), then add Follow(A) to Follow(B).

Follow() Example

stmt : if-stmt | OTHER
if-stmt:  IF LP expr RP stmt else-part
else-part: ELSE stmt | ε
expr: IDENT | INTLIT

For all non-terminals X in the grammar do
   1. if X is the start symbol, add $ to Follow(X)
   2. if N -> αXβ then add First(β) - ε to Follow(X)
   3. if N -> αX or N -> αXβ where ε is in
       First(β) then add Follow(N) to Follow(X)

First(stmt) = {IF, OTHER}
First(if-stmt) = {IF}
First(else-part) = {ELSE, ε}
First(expr) = {IDENT, INTLIT}

   1. stmt is the start symbol, add $ to Follow(stmt)
   2. if N -> α stmt β then add First(β) - ε to Follow(stmt)
	---- add First(else-part)-ε to Follow(stmt)
   3. if N -> α stmt or N -> α stmt β where ε
	 is in First(β) then add Follow(N) to Follow(stmt)
	---- add Follow(else-part) to Follow(stmt)
   4. if-stmt is not the start symbol (noop)
   5. if N -> αif-stmtβ then add First(β) - ε to Follow(if-stmt)
	---- n/a
   6. if N -> αif-stmt or N -> αif-stmtβ where ε is in
       First(β) then add Follow(N) to Follow(if-stmt)
	---- add Follow(stmt) to Follow(if-stmt)
   7. else-part is not the start symbol (noop)
   8. if N -> αelse-partβ then add First(β) - ε to Follow(else-part)
	---- n/a
   9. if N -> αelse-part or N -> αelse-partβ where ε is in
       First(β) then add Follow(N) to Follow(else-part)
	--- add Follow(if-stmt) to Follow(else-part)
   10. expr is not the start symbol (noop)
   11. if N -> αexprβ then add First(β) - ε to Follow(expr)
	---- add RP to Follow(expr)
   12. if N -> αexpr or N -> αexprβ where ε is in
       First(β) then add Follow(N) to Follow(expr)
	---- n/a

Follow(stmt) depends on Follow(else-part)
Follow(if-stmt) depends on Follow(stmt)
Follow(else-part) depends on Follow(if-stmt)

Can we First/Follow Anything Else

LR vs. LL vs. LR(0) vs. LR(1) vs. LALR(1)

Midterm

LR Parsers

The LR parsing algorithm is given below.

ip = first symbol of input
repeat {
   s = state on top of parse stack
   a = *ip
   case action[s,a] of {
      SHIFT s': { push(a); push(s') }
      REDUCE A->β: {
         pop 2*|β| symbols; s' = new state on top
         push A
         push goto[s', A]
         }
      ACCEPT: return 0 /* success */
      ERROR: { error("syntax error", s, a); halt }
      }
   }

On Trees

• Trees have nodes and edges; they are a special case of graphs.
• Tree edges are directional, with roles "parent" and "child" attributed to the source and destination of the edge.
• A tree has the property that every node has zero or one parent.
• A node with no parents is called a root.
• A node with no children is called a leaf.
• A node that is neither a root nor a leaf is an "internal node".
• Trees have a size (total # of nodes), a height (maximum count of nodes from root to a leaf), and an "arity" (maximum number of children in any one node).

Parse trees are k-ary, where there is a variable number of children bounded by a value k determined by the grammar. You may wish to consult your old data structures book, or look at some books from the library, to learn more about trees if you are not totally comfortable with them.

#include <stdarg.h>

struct tree {
   short label;			/* what production rule this came from */
   short nkids;			/* how many children it really has */
   struct tree *child[1];	/* array of children, size varies 0..k */
				/* Such an array has to be the LAST
				   field of a struct, and "there can
				   be only ONE" for this to work. */
};

struct tree *alctree(int label, int nkids, ...)
{
   int i;
   va_list ap;
   struct tree *ptr = malloc(sizeof(struct tree) +
                             (nkids-1)*sizeof(struct tree *));
   if (ptr == NULL) {fprintf(stderr, "alctree out of memory\n"); exit(1); }
   ptr->label = label;
   ptr->nkids = nkids;
   va_start(ap, nkids);
   for(i=0; i < nkids; i++)
      ptr->child[i] = va_arg(ap, struct tree *);
   va_end(ap);
   return ptr;
}

lecture #13 began here

Having Trouble Debugging?

To work on segmentation faults: recompile all .c files with -g and run your program inside gdb to the point of the segmentation fault. Type the gdb "where" command. Print the values of variables on the line mentioned in the debugger as the point of failure. If it is inside a C library function, use the "up" command until you are back in your own code, and then print the values of all variables mentioned on that line.

After gdb, the second tool I recommend strongly is valgrind. valgrind catches some kinds of errors that gdb misses. It is a non-interactive tool that runs your program and reports issues as they occur, with a big report at the end. I recommend you run valgrind periodically in between debugging sessions, just to catch and fix things early. I recommend that you have things valgrind-clean before coming to me for help, although I will help you fix things in valgrind if you can't figure them out.

Reading Tree Leaves

Options:

1. encode in the parent what the types of children are
2. encode in each child what its own type is (better)

There are actually nonterminal symbols with 0 children (nonterminal with a righthand side with 0 symbols) so you don't necessarily want to use an nkids of 0 is your flag to say that you are a leaf. Perhaps the best approach to all this is to unify the tokens and parse tree nodes with something like the following, where perhaps an nkids value of -1 is treated as a flag that tells the reader to use lexical information instead of pointers to children:

struct node {
int code;		/* terminal or nonterminal symbol */
int nkids;
union {
   struct token { ...  } leaf; // or: struct token *leaf;
   struct node *kids[9];
   }u;
} ;

Tree Traversals

void postorder(struct tree *t, void (*f)(struct tree *))
{
   /* postorder means visit each child, then do work at the parent */
   int i;
   if (t == NULL) return;

   /* visit each child */
   for (i=0; i < t-> nkids; i++)
      postorder(t->child[i], f);

   /* do work at parent */
   f(t);
}

void printer(struct tree *t)
{
   if (t == NULL) return;
   printf("%p: %d, %d children\n", t, t->label, t->nkids);
}

Observations on Debugging the ANSI C++ Grammar to be more YACC-able

Expectation

not that you pick it up by magic and debug it all yourself, but rather that you spend enough time monkeying with yacc grammars to be familiar with the tools and approach, and to ask the right questions.

Tools

YYDEBUG/yydebug, --verbose/--debug/y.output

Approach

• Run with yydebug=1 to study current behavior
• Do the minimum number of edits necessary to fix*
• reduce obvious epsilon vs. epsilon
• Examine y.output to understand remaining reduce/reduce conflicts.
• Delete the causes if they are not in our language
• Refactor the causes if they are in our language

*why? why not?

Suggestions on HW

Did you Test your Work on login.cs.nmt.edu?

Lots of folks doing work on lots of OSes, but if it doesn't run well on the test machine, you won't get many points.

Warnings are seldom OK

shift/reduce warnings are "usually" OK (not always). Get rid of other warnings so that when warning of a real issue shows up, you do not ignore it like "the boy who cried Wolf!".

Using { $$ = $4; } is probably a bad idea

Q: Why? Q: under what circumstances is this fine?

Using { $$ = $1; } goes without saying

It is the default... but epsilon rules had better not try it.

passing an fopen() or a malloc() as a parameter into a function is probably a bad idea

usually, this is a resource leak. It gives you no clean and safe way to close/free.

Some of you are still not commenting to a minimum professional level needed for you to understand your own code in 6 months

Mailbag

Since this will matter later, do we support generic types?

Only for Array and only for five built-in types of array elements.

You marked me down for Valgrind, but I did not have illegal memory reads or writes! What gives?

From hw1.html:

For the purposes of this class, a "memory error" is a message from valgrind indicating a read or write of one or more bytes of illegal, out-of-bounds, or uninitialized memory.

The uninitialized memory part includes messages such as:

==25504== Conditional jump or move depends on uninitialised value(s)

You have been told that the valgrind header and summary, including memory leaks, are not going to cost you points, I am only interested in valgrind error messages reported for behavior at runtime. Any stuff you see in between the valgrind header and summary is either your output, or valgrind messages that may point at bugs in your code.

Lab#5 Comments

• Practice drawing syntax trees LEGIBLY for the midterm.
• Think about how to do that real fast....legibly
• Often the punctuation tokens are UNNECESSARY.
• Use a lot of extra space in order to be legible
• Plan to draw big internal nodes, with room for extra stuff in them besides the non-terminal or production rule # that identifies them.

What we have at the start of semantic analysis is a syntax tree that corresponds to the source program as parsed using the context free grammar. Semantic information is added by annotating grammar symbols with semantic attributes, which are defined by semantic rules. A semantic rule is a specification of how to calculate a semantic attribute that is to be added to the parse tree.

So the input is a syntax tree...and the output is the same tree, only "fatter" in the sense that nodes carry more information. Another output of semantic analysis are error messages detecting many types of semantic errors.

Two typical examples of semantic analysis include:

variable reference analysis

the compiler must determine, for each use of a variable, which variable declaration corresponds to that use. This depends on the semantics of the source language being translated.

type checking

the compiler must determine, for each operation in the source code, the types of the operands and resulting value, if any.

Notations used in semantic analysis:

syntax-directed definitions

high-level (declarative) specifications of semantic rules

translation schemes

semantic rules and the order in which they get evaluated

In practice, attributes get stored in parse tree nodes, and the semantic rules are evaluated either (a) during parsing (for easy rules) or (b) during one or more (sub)tree traversals.

Two Types of Attributes:

synthesized

attributes computed from information contained within children. These are generally easy to compute, even on-the-fly during parsing.

inherited

attributes computed from information obtained from elsewhere in the tree, such as a parent or siblings. These are generally harder to compute. Compilers may be able to jump through hoops to compute some inherited attributes during parsing, but depending on the semantic rules this may not be possible in general. Compilers resort to tree traversals to move semantic information around the tree to where it will be used.

Look at HW#4

Attribute Examples

Isconst and Value

CFG	Semantic Rule
E1 : E2 + T	E1.isconst = E2.isconst && T.isconst if (E1.isconst)     E1.value = E2.value + T.value
E : T	E.isconst = T.isconst if (E.isconst)     E.value = T.value
T : T * F	T1.isconst = T2.isconst && F.isconst if (T1.isconst)     T1.value = T2.value * F.value
T : F	T.isconst = F.isconst if (T.isconst)     T.value = F.value
F : ( E )	F.isconst = E.isconst if (F.isconst)     F.value = E.value
F : ident	F.isconst = FALSE
F : intlit	F.isconst = TRUE F.value = intlit.ival

Mailbag

Should we have 1 symbol table for each scope? For example a symbol table for global, then another for functions?

1 symbol table for global scope, one symbol table for each function, possibly some additional as needed for built-ins tbd.

What are the built-ins? Where are they described? How are we supposed to implement them?

Good questions. What do you think should be in the minimal set of Kotlin built-ins?

println()


Sure, now what about input? 3 (out of many) options include:

std::io::stdin().read_line(&mut input) // booo!

console...

text_io:
  let i : i64 = read!();

After an in-class discussion, we decided hey maybe macro read!(); would be the simplest and most useful.

Symbol Table Module

• Symbol tables are used to resolve names within name spaces.
• Symbol tables are generally organized hierarchically according to the scope rules of the language.
• Although initially concerned with simply storing the names of various that are visible in each scope, symbol tables take on additional roles in the remaining phases of the compiler.
• In semantic analysis, symbol tables store type information.
• For code generation, symbol tables store memory addresses and sizes of variables.

The following very abstract API description from the red dragon book might give you an idea of some of the operations you would want to implement.

mktable(parent)

creates a new symbol table, whose scope is local to (i.e. inside) a parent symbol table (the parameter). The outermost table has a null parent -- usually the "global" symbol table.

enter(table, symbolname, type, offset)

insert a symbol into a table. Type and offset information will be discussed a little later. There might be more info about the symbol (i.e. more parameters) that you need to store.

lookup(table, symbolname)

lookup a symbol in a table; returns a pointer to a structure (or object) that has type and offset information. lookup operations are often chained together progressively from most local scope on out to global scope.

compute_width(table)

sums the widths of all entries in the table.

• "widths" are units of #bytes.
• The sum of widths is the #bytes needed for the entire memory region reserved for this scope.
• There might be padding bytes to comply with word-alignment rules
• Examples: activation record (for a function call), global data section, or class/struct instance.

Worry not about method compute_width() until code generation you wish to implement.

newscope = enterscope(table, name)

enters (pushes) the local scope of the named entity, looking up name in table

newscope = exitscope()

exits/pops a local scope, returning to the previous scope

currentscope()

return the current scope, i.e. the top of the stack

lecture #14 began here

The k0 spec

Symbol Table Basics

struct symtab_entry {
   char *sym;
   struct typeinfo *type; /* what type is this variable? forthcoming */
   /* ... more stuff added later ... */
}

struct elem {
   struct symtab_entry *ste; // information about a symbol
   struct elem *next;
   };
struct elem *theEntireSymbolTable;
struct symtab_entry *lookup(struct elem *st, char *name) {
   if (st==NULL) return NULL;
   if (!strcmp(st->ste->sym, name)) return st->ste;
   return lookup(st->next, name);
}
struct elem *insert(struct elem *st, char *name, struct typeinfo *t) {
   struct elem *n;
   struct symtab_entry *ste = lookup(st, name);
   if (ste != NULL) {
      fprintf(stderr, "symbol is already inserted\n");
      exit(3);
      }
   /* ste was NULL, make a new one */
   ste = malloc(sizeof (struct symtab entry));
   ste->sym = strdup(name);
   ste->type = t;
   n = malloc(sizeof (struct elem));
   n->ste = ste;
   n->next = theEntireSymbolTable;
   theEntireSymbolTable = n;
}

• Pros: simple
• Cons: O(n) does not scale well as n gets big

Aside on malloc()

void *ckalloc(int n) // "checked" allocation
{
  void *p = malloc(n);
  if (p == NULL) {
     fprintf(stderr, "out of memory for request of %d bytes\n", n)
     exit(4);
  }
  return p;
}

Hash Functions and Hash Tables for Symbol Tables

• purpose: array-like performance for string lookups in large collections of strings.
• will be O(1) on average iff
  • you have enough buckets and if
  • hash function is O(1) and if
  • hash function distributes symbols perfectly across buckets
• recommended implementation: array of linked lists
• goal of hash function: produce a unique random integer for each unique symbol. Then modulo it by # of buckets to pick array index
• How many buckets? Ideally, sized proportionally slightly larger than the # of symbols, but number of symbols varies widely across all possible source codes. We can certainly calculate averages and choose # of buckets large enough to handle the average case well. Serious/real compilers will grow the # of buckets if necessary.

int hash(char *s) { return 0; }   // linked list, O(n)
int hash(char *s) { return s[0];} // hash using first char, x1 x2 x3 hash same
int hash(char *s) {               // what does this one do?
   int len = strlen(s);
   return s[0] + (len>1 ? s[len-1] : 0);
}
int hash(char *s) {               // "good enough"; what is weak here?
   int i=0, sum = 0, len = strlen(s);
   for( ; i<len; i++) sum += s[i];
   return sum;
}

Looking at More Symbol Table Examples

• You may find the symbol tables in [Jeffery] or in [Thain] to be particularly helpful to you.
• The symt.c and symt.h examples may regurgitate the lecture notes symbol tables or vice versa; do they have any missing pieces or provoke any useful questions/discussion?

Lessons From the Godiva Project

• type.h
• type.c
• symtab.h
• symtab.c

Mailbag

is it appropriate to make a new symbol table when the parser begins (global symbol table) and then when it encounters a new block as defined in k0gram.y (new scope definition)? And then to make a sym_entry when an identifier is encountered?

Yes and yes. Well, we said it would be sufficient in k0 to do one global and one for each function.

[Is it appropriate] to make a sym_entry when an identifier is encountered?

Not all identifiers. When an identifier appears in a syntactic context in which the identifier is being declared, such as a function name, or a formal parameter name, or a let.

What is the "struct sym_entry **tbl" in the last definition of the sym_table?

struct sym_entry **tbl in some (lab 6?) reference code is a declaration of an array of pointers -- the array of heads of linked lists -- declared in such a way that different symbol tables can be malloced with different sizes (== different numbers of buckets). Not required for k0.

How can symbol tables be made correctly if the parser works bottom up and sees identifiers first?

You can do what makes sense for you, but semantic analysis is perhaps easiest and best conducted as one or more tree traversals after parsing has been completed. You may have to think hard about what order to do things in. You can make as many passes over the tree as you need.

when should we be declaring a new symbol table?

During a tree traversal you are looking for the node(s) that introduce scopes. What string label or not production rule # would you use to recognize these nodes? Answer will vary depending on your grammar.

I may ... always add the first symbol (which should always be the function name) to the parent symbol table. Is that okay to implement?

I would characterize this in terms of specific tree shapes where the function name is declared vs. where other symbols local to the function are declared.

Why is the "struct sym_entry **tbl" of type sym_entry? Should it not be of type sym_table since it will point to other symbol tables? And how should it be initialized?

A symbol table contains a collection of elements that are the information known about the various symbols in a program scope. These elements are stored in type struct sym_entry, which are often chained together into linked list of all the symbols that happen to hash to the same index in the array of linked lists. The struct sym_entry **tbl is literally intended to be a pointer to an array of buckets (linked list heads) that would typically be initialized like

   st->tbl = calloc(num_buckets, sizeof(struct sym_entry *));

Symbol Table Example

int foo(int x, char *y) {
   return x;
   }

int main()
{
   int z;
   z = foo(5, "funf");
   return 0;
}

def foo( x:int, y:str) -> int :
   return x

z : int
z = foo(5, "funf")

Mailbag

ival, sval and dval are lexical attributes: compile-time things that apply to literal constant tokens only. For variables with type any, we will need a strategy for runtime, and we will need to emit instructions to read and write values at runtime. The virtual machine we will target by default is in fact very well-suited for a lot of this, since it is one of Python's ancestors. From a recent addition to punyref.html:

The rules are: if you assign a value to a variable without a declaration, the variable is implicitly declared to be of type Any. For example you can say

x  = 5

Since anything can be assigned to variable of type Any, it is fine receiving a 5. Suppose now that you declare a variable of type int, and assign x to it.

y : int
y = x

If the compiler does not know the type of x, the generated code for assignment to y must look like

y = int(x)

Note that the conversion-to-int is more tied to the assignment-to-an-int rather than to the x that is to be converted. One almost wants to define typed assignment operators like =_int and to modify your syntax tree to make it look like:

y =int x

But I am a pragmatist. You could encode this by modifying the syntax tree to explicitly call the int() function if you want.

lecture #15 began here

Midterm Schedule

• Today is Midterm Review (latter majority of class time)
• Tuesday is the Midterm Exam
• The Midterm is desiged as a 75 minute in-person exam, from 12:30-1:45.
• If you can take the exam here in-person, great. If you have accommodations, please make arrangements with the test center.
• If you have special concerns related to the exam, please contact me this week so we can address them together.

Old Mailbag

How should I focus my midterm studying? There is a lot of material in this class and I would like to try to optimize my study time. Should I focus on the lecture notes? Should I be studying the textbooks?

The best way to study for the exams in this course is to do your homework assignments. I try to write exam questions that you should know if you have done your assignments. Having said that, if I were picking and choosing between the lecture notes or the books I would hit the lecture notes the hardest, referring to the books when more (or different) explanations are needed.

I still have no idea where to start my symbol table HW! What do I do?

The symbol table HW (and next few HW's) are tree traversals. There is but a single, powerful magic tool at your disposal: recursion. Start with basis cases, at leaves. Make it work for the MOST SIMPLE CASES POSSIBLE before you worry about anything bigger. Work your way up the tree.

Where do I store my symbol tables?

If I were you, I'd just get a single (global) symbol table working before worrying about local scopes, but... the obvious alternative answers to your question are:

• in the node at the top of each local scope, such as class or function declaration nodes. In this case, it is an attribute that can be inherited, so it might be in all the tree nodes.
• in the symbol table entry for the symbol that owns the scope. For example main's local symbol table in main's symbol table entry.
• the above alternatives are not mutually exclusive. It may well be easier to do both, than to do either one by itself. So from now on, I am going to pretend that you stick pointers to your symbol tables in both places.

Do we have to check whether array (or map, if writing a language with maps/dictionaries) subscripts are legal (correct type, in-range) in this homework?

Checking "legality" is the next (type checking) HW's job. Even then, some checks are not do-able by the compiler and if required, entail generating code that does the checks at runtime.

My tree's attributes aren't propagating from parent to child, why not?

If there are tree nodes in the middle, there have to be semantic rules that copy attributes up or down in order for the information to get from source to destination.

What is wrong with this hash?

for(i=0; i < strlen(s); i++) {
   sum += s[i];
   sum %= ARRAYSIZE;
   }

How many potential problems can you find in this code?

I was wondering if it would be better for the hash table to build it based on the terminals I find in the tree or the non-terminals?

the keys you are inserting and looking up in hash tables are the variable names declared in the program you are parsing -- those names came into your tree as terminals/leaves, and not all the leaves -- only leaves that are names of things (identifier, or LNAME, or whatever you are calling them), and only when those leaves appear in particular subtrees/production rules where new variables or functions (or type names) are being introduced.

As I am traversing the tree, should I be looking for NAMEs and other terminal symbols, and then to determine if I should insert them, or should I look for nonterminals and then as I see those non terminals grab the LNAME and the other important data

Sorta the latter, you are usually looking for non terminals or specific production rules, and then traversing selected children within which you know you have a list of names being declared.

Variable Reference Analysis

• for each variable, has it been declared? (undeclared error)
• for each declaration, is it already declared? (redeclared error)

Semantic Analysis in Concrete Terms

Pass 1: Symbol Table Population

Symbol table population is a syntax tree traversal in which we look for nodes that introduce symbols, including the creation and population of local scopes and their associated symbol tables. As you walk the tree, we look for specific nodes that indicate symbols are introduced, or new local scopes are introduced. What are the tree nodes that matter (from cgram.y) in this particular example?

1. create a global symbol table (initialization)
2. each function_declarator introduces a symbol.
3. each init_declarator introduces a symbol.
4. oh by the way, we have to obtain the types for these.
5. "types" for functions include parameter types and return type
6. "types" for init_declarators come from declaration_specifiers, which are "uncles" of init_declarators

Pass 2: Type Checking

Type checking occurs during a bottom up traversal of the expressions within all the statements in the program.

Discussion of a Semantic Analysis Example

• When talking about semantic analysis, it is easy to quickly get lost in the weeds, for example how to represent type information -- we need all that, but we need tree traversal examples worse, and symbol table examples.
• semantic.c has example tree traversals that do different tasks during semantic analysis.
• this example's treewalks best understood in context of cgram.y.
• this was "ripped out" of a past project; your project this semester will need similar treewalks but you will have different non-terminals and production rules.
• goal: give you ideas
• not meant to force you to use this code, or do things this way

Old Mailbag

I feel like I am just staring at a wall... I am just kinda lost as to how to start.

Start by copying modifying your tree printer to only print out the names of variables at the point at which they are declared.

As I am creating new symbol tables, how should I keep track of them? Should I include like a *next pointer?

There is logically a tree of symbol tables. Parent symbol tables (in our case the symbol table for our "global" package, package main) contain entries for symbols defined within them, such as functions, so the parent should be able to reach the children's symbol tables by looking them up by name within the parent symbol table. On the other hand, children's symbol tables might want to know their parent enclosing symbol table. For general nested programming language the child symbol table should contain a parent pointer. For the special case that is our language this semester, there isn't much nesting and you could just have a global variable that knows the root symbol table (for package main) and every symbol table that is not the root, can rest assured that its parent is the root.

So, how many symbol tables do we have to have? More than one?

One for each package, one for each function, one for each struct type.

How do I know what symbol table I am using?

One could implement this as an inherited attribute, or one can track it with an auxiliary global as one walks around the tree. If you don't do the inherited attribut, you may have to maintain a stack of scopes. When you walk into something that has a more local scope, make that scope current and use enclosing scopes when more local scopes don't find a particular symbol you are looking for.

Q: What is likely to appear on the midterm?

A: questions that allow you to demonstrate that you know

• regular expressions
• the difference between an DFA and an NFA
• lex and flex and tokens and lexical attributes
• the %union and yylval interface between flex and bison
• context free grammars: ambiguity, factoring, removing left recursion, etc.
• bison syntax and semantics
• parse trees
• symbol tables
• semantic attributes
• type checking

Sample problems:

1. Write a regular expression for numeric quantities of U.S. money that start with a dollar sign, followed by one or more digits. Require a comma between every three digits, as in $7,321,212. Also, allow but do not require a decimal point followed by two digits at the end, as in $5.99
2. Write a non-deterministic finite automaton for the following regular expression, an abstraction of the expression used for real number literal values in C.

        (d+pd*|d*pd+)(ed+)?

3. Write a regular expression, or explain why you can't write a regular expression, for Modula-2 comments which use (* *) as their boundaries. Unlike C, Modula-2 comments may be nested, as in (* this is a (* nested *) comment *)
4. Write a context free grammar for the subset of C expressions that include identifiers and function calls with parameters. Parameters may themselves be function calls, as in f(g(x)), or h(a,b,i(j(k,l)))
5. What are the FIRST(E) and FOLLOW(T) in the grammar:

        E : E + T | T
        T : T * F | F
        F : ( E ) | ident

6. What is the ε-closure(move({2,4},b)) in the following NFA? That is, suppose you might be in either state 2 or 4 at the time you see a symbol b: what NFA states might you find yourself in after consuming b?
   (automata to be written on the board)
7. (20 points) (a) Explain why a compiler might be less able to recover and continue from a lexical error than from a syntax error. (b) Explain why a compiler might be less able to recover and continue from a syntax error than from a semantic error.
8. (30 points) (a) Write a regular expression (you may use Flex extended regular expression operators) for declarations of the form given by the grammar below. You may use the usual regular expression for C/C++ variable names for IDENT. (b) Under what circumstances is it better to use regular expressions, and under what circumstances is it better to use context free grammars?

   declaration : type_specifier decl_list ';' ;
   type_specifier : INT | CHAR | DOUBLE ;
   decl_list : decl | decl ',' decl_list ;
   decl: IDENT | '*' IDENT | IDENT '[' INTCONST ']' ;


9. (30 points) Some early UNIX utilities, like grep and lex, implemented a non-deterministic finite automata interpreter for each regular expression, resulting in famously slow execution. Why is Flex able to run much faster than these early UNIX tools?

10. (20 points) Perhaps the most important thing to learn in homework #2 about Flex and Bison was how the two tools communicate information between each other. Describe this communications interface.

11. (30 points) Perhaps the second most important thing to learn in homework #2 was how and when to build internal nodes in constructing your syntax tree.
    (a) Describe how and when internal nodes need to be constructed, in order for a Bison-based parser to end up with a tree that holds all leaves/terminal symbols. (b) Under what circumstances might a new non-terminal node construction site be skipped? (c) Under what circumstances might some of the leaves/terminal symbols not be needed later during compilation?
12. (40 points) Consider the following grammar for C variable declarations, given in YACC-style syntax. sm stands for semi-colon. cm stands for comma. id stands for identifier. lb stands for left square bracket. intconst stands for integer constant. rb stands for right square bracket.

    VD : CL T DL sm ;
    CL : static | register | /* epsilon */ ;
    T : int ;
    DL : D | D cm DL ;
    D : id | AST D | D lb intconst rb ;


    a) What are the terminal symbols? b) What are the nonterminal symbols? c) Which nonterminals have recursive productions? d) Remove left recursive rules from this grammar if there are any.
13. (30 points) Write C code that is error free and produces no warnings, which performs the following tasks: a) declare a variable of type pointer to struct token, where struct token has an integer category, a string lexeme, and an integer lineno, b) allocate some memory from the heap large enough to hold a struct token and point your variable at it, and c) initialize your memory to all zero bits. You may assume struct token with its field definitions, has already been defined earlier in the C file before your code fragment.
14. (20 points) In looking at your yydebug output, several of you noticed that it appeared like the same terminal symbol (for example, a semi-colon) was repeated over and over again in the output, even through sections of parsing where no syntax error occurred. Why might the same terminal symbol appear on the input repeatedly through several iterations of a shift-reduce parser. (30 points) What are semantic attributes? Briefly define and give an example of the major kinds of semantic attributes that might be used in semantic analysis for a language such as C++.
15. (30 points) Symbol tables play a prominent role in semantic analysis. How are symbol tables used? Give an example, with a brief explanation of how the symbol table is involved.

Representing Types

In statically-typecheck'ed languages, the target language's type system must be represented using data structures in the compiler's implementation language. In the symbol table and in the parse tree attributes used in type checking, there is a need to represent and compare source language types. You might start by trying to assign a numeric code to each type, kind of like the integers used to denote each terminal symbol and each production rule of the grammar. But what about arrays? What about structs? There are an infinite number of types; any attempt to enumerate them will fail. Instead, you should create a new data type to explicitly represent type information. This might look something like the following:

struct type {
   /*
    * Integer code that says what kind of type this is.
    * Includes all primitive types: 1 = int, 2=float,
    * Also includes codes for compound types that then also
    * hold type information in a supporting union...
    * 7 = array, 8 = struct, 9 = pointer etc. */
   int base_type;
   union {
      struct array {
         int size; /* allow for missing size, e.g. -1 */
	 struct type *elemtype; /* pointer to type for elements in array,
	 				follow it to find its base type, etc.*/
      } a;
      struct struc {		/* structs */
         char *label;
	 int nfields;
         struct field **f;
	 } s;
      struct type *p;		/* pointer type, points at another type */
   } u;
}

struct field {			/* members (fields) of structs */
   char *name;
   struct type *elemtype;
}

int [10][20]
struct foo { int x; char *s; }

For PunY, this might look like:

struct type {
   /*
    * Integer code that says what kind of type this is.
    * Includes all primitive types:
    * 1 = int, 2=float, 3=string, 4=bool,
    * Also includes codes for compound types that then also
    * hold type information in a supporting union...
    * 5=list, 6=dict., 7=func, 8=class */
   int base_type;
  /* gone away! for PunY */
  union {
   struct funcdef {
      struct type *return_type;
      int nparams;
      struct params **p;
      } f;
/* maybe we can get away with just "knowing" for only predefined class info
   struct classdef {
      struct methods **meth;
      struct members **mem;
      } f;
 */
   } u;
}

struct field {			/* members (fields) of structs */
   char *name;
   struct type *elemtype;
}

Mailbag

It seems like my approach to finding different cases of variable declarations is not ideal. I'm just looking for some more of the "parse tree theory" behind the variable declarations, and then a little bit of guidance for putting that theory into efficient code.

Spend some time getting familiar with your trees. Mostly they will reflect your grammar, which you should also get (more) familiar with. And while there does not exist "parse tree theory" or "syntax tree theory", we can certainly talk about "tree theory". It is all about recursion, since trees are recursively defined: what do we do for basis cases (leaves) and recursion steps (internal nodes)?

"Grok recursion deeply and you can do anything that needs doing on computers"

is a grotesque paraphrase of my grad school algorithms prof Udi Manber, former VP of Search at Google.

However you represent it in the actual bits, you have to be able to tell for each tree node what production rule built it. And you have to be able to look for specific nodes, and traverse the unique shapes that they have underneath them.

Other than that, the main way for me to help you might be to draw the shapes of your (syntax tree) subtrees for various grammar rules, but of course, that depends on what you did in your version of cgram.y

Does our language support calling a function inside another call, as in

   foo(bar(t1, baz(99,1)));

Yes.

How to deal with includes/imports: what does -in general- a compiler do? For example, when it includes math.h (or in other languages, imports a math package), does it copy the functions' declarations? Where can I find the math package file? Are there in Bison built-in function to copy these stuff and added them to the source file, or should I do copy content and edited the source file in C at the main function?

Great question. In a real compiler, an include or import is a pretty big operation. C/C++ #include textually inserts another file, while import is probably reading from a database to get the declarations of the package being imported. For our language if we do anything with this at all, we are doing a hardwired special case, treating these as "built-ins", so the compiler can do whatever it wants in order to get the runtime library functionality it needs. For example, what do we do with this:

extern crate text_io;
fn main() {
let a: i64 = read!();
}

Are we supposed to create a separate symbol table for each function? Or just a symbol table for functions in general?

You are supposed to create one "global" symbol table, one local symbol table for each function, and one local symbol table for each struct type.

I am struggling on figuring out how to detect undeclared variables.

We should talk about this in detail looking at the non-terminals used in your grammar. With any big vague software task, it is wise to break it up into smaller, well-defined pieces. Before you try to find all undeclared variables, you could:

1. write a tree traversal that just lists all the uses of a variable (in expressions, where values are read or written), showing the variable name and line number. These are the things that must be checked.
   Still too big a job? Break it into even smaller pieces:
   • write a tree traversal that just lists the names of functions for which you have a function body, and therefore a compound statement that contains executable expressions.
   • are there anything besides function bodies where you would have to check for undeclared variables?
2. write a tree traversal that inserts all the variable declarations. print out the whole symbol table when finished, to show what you've got.
3. modify the tree traversal #1 to lookup within the symbol table(s) and print semantic errors if any lookup fails.

lecture #16 began here

Reading Assignment

• Read Thain Chapter 7
• If you have it, read the Jeffery textbook, Chapters 7-8

What to do about predefined things

• Some predefined things (Java: System, Python: math, os, ...) need to be in a global symbol table.
• Maybe what I call a "global symbol table" is really the symbol table for the current (default, aka anonymous) package.
• OK, what is a package?
• Well, like a function, it defines a scope and has a symbol table... Like a class its names include methods/functions and variables...
• So a package is somewhat similar to a static class, or a class where every name is static...
• X.y means a name y is defined within package X. What is y's type?
• X.y.z means a name y is defined within package X. What about z?

Discussion of k0 built-ins

• Suppose your language specification says that k0 should support random numbers via java.util.Random.nextInt().
• This was not an entirely gratuitous and sadistic instructor directive -- it was motivated by random numbers' use in CSE 107 to do simple games.
• There is a basic question of what that would look like in Kotlin/k0
• For a brief instant I thought maybe Kotlin would just let me say Random.nextInt() without any pain (e.g. imports), but nope.
• An example .kt file that the k0 spec says we should support is

  import java.util.Random
  val random : Random = Random()
  fun main()
  {
    println(random.nextInt())
  }


• It seems like for this we need to support a package and a class, although their functionality can be a tiny restricted subset

Discussion of "Import", and more Generally, Packages

• The first thing that packages and classes are is: a symbol table.
• Global symbol table contains a predefined symbol a package named java.
• java symbol table contains a couple predefined symbols including a package named util.
• util symbol table contains a predefined symbol Random, a class
• class Random's symbol table contains a predefined symbol nextInt, a function
• it doesn't take many lines to create and insert predefined symbols.

Suggested approaches for implementing semantic analysis of packages/imports:

Option A: treat import like a special "include"

• Pros: moderately easy to implement. For the Go language one year we did (fmt.go, mathrand.go, time.go)
• import x.y.z means class z out of package x.y. (This is a Java thing. Can we dodge it?)
• In a language such as Go, import "math/rand" means import the rand package from the math directory. From the official Go site:
  • a workspace contains repositories
  • repositories contain packages
  • packages consist of source files in a single directory
  Directories in some language (e.g. Go; C++ ?) can contain multiple packages, while in others (Java) maybe not, other than nested ones.
• Cons: pain to make the lexer/parser do this work.

Option B: respond to "import" by inserting some symbol table entries (hardwired to the package name)

• Pro: don't have cons of the include approach
• Con: either have to reparse whole files in order to suck in types for symbols we import OR have to write out symbol tables as external files/repositories of info about compiled packages/classes

Mailbag

I'm trying to make a given node's symbol table into an inherited attribute. However, whenever I #include "symtab.h" in my tree.h file so that I can add a SymbolTable attribute to my tree nodes, I get function redeclaration errors for everything that's in my symtab.h file. Basically, I think the problem is that symtab.h is getting included in too many places. Do you have any suggestions on how to share symtab.h into tree.h?

Consider which case each .h file falls into:

• If a .h file gets included multiple times, and all it has are prototypes and externs, it is harmless.
• If a .h file gets included multiple times and it has typedefs, those cause errors and have to be protected, e.g. by a clever #ifdef.
• If a .h file contains actual bodies of C functions (definitions), or if .c files get included, then you were asking for trouble. Cut that out.

The typical way of protecting a file foo.h from being multiply included is:

#ifndef FOO_H
#define FOO_H
...rest of your .h file
#endif

I've seen folks manage to get into trouble despite such a protection, or implement such a protection incorrectly, but it takes work to do so.

HW#5

Lab #6 Comment

• Its not really OK to just dump all your compiler code in one big file (tree.c).
• Symbol tables and type checking and code generation...if you stick it all in tree.c you will have trouble maintaining it.
• Separate structs, or separate ADT's, deserve separate .c and .h files.
• Lab wasn't sufficiently clear about the symtab.c that you should create or adapt to go with the symtab.h

Comments on Past HW

• Its important to get syntax trees working. If you need help, ask for it!
• We are doing type checking, so please add support for type representation if you have not done so yet.
• Many folks need to fix and resubmit. Fine.

• Given some type representation, and
• a constructor (or helper function, or factory method) that allocates/creates instances of that type representation,
• How do we synthesize and/or inherit that type to everywhere in the syntax tree that needs/uses the type?
• Possible Answers...
  • synthesize in the subtrees where the type information originates
  • inherit in the subtrees where the type information is associated with names (declarations)
  • insert the type information at the points where names go into the symbol table
  • lookup the type information at the points where names get used in executable code
• You may use as many passes through the tree as you need!
• For some languages it may be possible to do in one pass, but often that's only because the language syntax was contorted to make that happen

/*
 * Build Type From Prototype (syntax tree) Example
 */
void btfp(nodeptr n)
{
   if (n==NULL) return;
   for(int i = 0; i < n->nkids; i++) btfp(n->child[i]);
   switch (n->prodrule) {
   case INT:
      n->type = get_type(INTEGER);
      break;
   case CHAR:
      n->type = get_type(CHARACTER);
      break;
   case IDENTIFIER:
      n->type = get_type(DONT_KNOW_YET);
      break;
   case '*':
      n->type = get_type(POINTER);
      break;
   case PARAMDECL_1:
      n->type = n->child[0]->type;
      break;
   case THINGY:
      n->type = n->child[0]->type;
      break;
   case PARAMDECL_2:
      n->type = clone_type(n->child[1]->type);
      n->type->u.p.elemtype = n->child[0]->type;
      break;
   case PARAMDECLLIST_2:
      n->type = get_type(TUPLE);
      n->type->u.t.nelems = 1;
      n->type->u.t.elems = calloc(1, sizeof(struct typeinfo *));
      n->type->u.t.elems[0] = n->child[0]->type;
      break;
   case PARAMDECLLIST_1:
      n->type = get_type(TUPLE)

      /* consider whether left child, guaranteed to be a PARAMDECLLIST,
         is guaranteed to be a tuple.  Maybe its not. */
      n->type->u.t.nelems = n->child[0]->type->u.t.nelems + 1;
      n->type->u.t.elems = calloc(n->type->u.t.nelems,
				      sizeof(struct typeinfo *));
      for(i=0;i < n->child[0]->type->u.t.nelems; i++)
         n->type->u.t.elems[i] = n->child[0]->type->u.t.elems[i];
      n->type->u.t.elems[i] = n->child[1]->type;

      break;
   case INITIALIZER_DECL:
      n->type = get_type(FUNC)
      n->type->u.f.returntype = get_type(DONT_KNOW);
      n->type->u.f.params = n->child[1].type;
      break;
   case SIMPLE_DECLARATION_1:
      n->type = clone_type(n->child[1]->type);
      n->type->u.f.returntype = n->child[0]->type;
   }
}

Mailbag

At this point in order to implement proper typechecking I need to implement expression type evaluation, which would come from starting to append information about expressions to the tree.

Yup. You are supposed to stick all the type information for all the symbols, somehow. Then you are to write a tree traversal that walks the tree and for the code bodies, do a bottom-up post-order traversal that assigns a .type value to each tree node until you hit things that logically have no value (and hence no type). The sequence of nodes visited and .type's assigned includes:

  x (look up, find INT_TYPE in symbol table)
  1 (INT_TYPE is a lexical attribute or property of this constant)
  add_expr (one applies typecheck rules, verifies that +
     can add the two children types, and computes result type INT_TYPE)
  return_stmt (check type of return matches type of function)

Can you give me a more concrete example of how type information is produced and placed in symbol table entries?

Let's look at

var x : Int

It takes some digging to even figure out where in the grammar this is. YOUR grammar by default would have it differently than mine, but in some grammar it might be:

              __asgn___
             /         \
           pat    maybe_ty_ascription
            /           /    \
         NAME        ':'      ty
             x                  \
                                NAME
                                    Int

To place type INT_TYPE as the type of x, you would

1. do a pass in which types are synthesized up (type of Int is INT_TYPE, type of ty is INT_TYPE, type of maybe_ty_ascription is INT_TYPE, type of asgn is INT_TYPE), and then
2. do a tree traversal in which symbol tables are populated and at the pat or maybe the NAME that would insert x with type INT_TYPE.

From Types to Type Checking

• add a .type field to struct treenode.
• some nodes can synthesize their type from their kids
• some nodes can pass type info from one kid down into another

Syntax Trees to Type Representation Example

int f(int x, int y, float z)

• How is the parse tree different under a left recursive grammar than it is under a right recursive (for example C) grammar?
• why not just use the parse tree of the function header as the "type information" that we store in the symbol table entry for function f?
• how to construct type information for this function type?

Where we are at

• This week: type checking lectures
• Jeffery is working on grading
• If you haven't gotten HW#4 working/submitted
  • you are not alone
  • all is not lost
  • Come to class. Do the work. Get help.

Constructing Type Representation for a Function (cont'd)

int f(int x, int y, float z);

The syntax tree:

The type struct we are supposed to fill out from this tree:

C type	where in the tree?
typedef struct typeinfo { int basetype; union { /* ... along with other union members */ struct funcinfo { char *name; /* ? */ struct sym_table *st; struct typeinfo *returntype; int nparams; struct param *parameters; }f; }u; }	FUNC_TYPE n->kids[1]->kids[0]->leaf->text new_st(...); n->kids[0]->type nparams_helper(n->kids[1]->kids[1]) params_builder(n->kids[1]->kids[1])

Parameter "list" vs. "tuple"

• How to represent the parameters in a function type?
• Whether parm names are part of the type is a good question...
• Existing type.h reference/sample uses a link list of a separate type, struct param
• Some of my other lecture notes, and famous compiler texts such as ASUL, would introduce a TUPLE basetype.
• Argument in favor of a linked list:
  • a bit simpler. easier to assemble.
• Arguments in favor of a tuple:
  • everything incrementally constructed along the way is still just a struct typeinfo
  • each function's parameters are fixed, lists are for dynamic structures
  • array representation easier to use afterwards
  • we will usually use many times after a single construction

In-Class Exercise: helper Functions to construct param typeinfo

calc_nparams

int calc_nparams(struct tree *n)
{
   if (n->prodrule == PD) {
      return 1;
      }
   else if (n->prodrule == PL) {/* recursion/induction step */
      return 1 + calc_nparams(n->kids[0]);
      }
   return 0;
}

Old Mailbag

What is the difference between a function declaration and a variable declaration, when it comes to adding the symbols to the table? as far as the tree is concerned they are almost exactly the same, with the exception of which parent node you had. Is there (or should there be) a line in the symbol entry which states the entry as a function vs a variable?

You add the symbols to the same table. For HW#4 they are thus treated basically identically. For HW#5 you put in different type information for functions (whose basetype says they are a function, and whose typeinfo includes their parameters and return type) than for simple variables.

I have code written which (hopefully) creates the symbol table entry for variables. This code uses a function which spins down through non-terminals to get the identifier. Can I use this same function to get the identifier for a function? A function is

direct_function_declarator: direct_declarator LP ... RP ...

so after the direct_declarator it has other useful things that I'm not sure need to be in the symbol table entry.

You can sometimes re-use tree traversal functions that work through similar subtrees, either as-is (if the subtrees really use the same parts of the grammar) or by slightly generalizing or making generic the key decisions about what to do based on production rule. For example, you might add a flag parameter to a function that spins through nonterminals, indicating whether this was in a function declaration or not; that might allow you to tweak the tree traversal to adjust for minor differences. Or maybe you just add cases to the switch statement to account for additional production rules in the various similar kinds of subtrees.

mk_params

struct param * mk_nparams(struct tree *n)
{
   if (n->prodrule == PD) {      /* basis case */
      struct param *p = malloc(sizeof (struct param)); /* check for NULL */

      p->type = n->kids[0]->type; /* if we synthesized it already */
/*or*/
      if (n->kids[0]->prodrule == VOID)
         p->type = void_typeptr; /* ...and more like this, INT etc. */
      else
         p->type = synthesize_type_from_declspecs(n->kids[0]);

      if (n->kids[1]->prodrule == IDENTIFIER)
         p->name = n->kids[1]->leaf->text;
      else { /* non-simple declarator, pointer or something */
         p->name = get_name_from_declarator(n->kids[1]);
         /* type is modified by declarator; it's a pointer or something */
         p->type = inherit_type_into_declarator(p->type, n->kids[1]);
         }

      p->next = NULL;
      return p;
      }
   else if (n->prodrule == PL) { /* recursion/induction step */
      struct param *p1 = mk_nparams(n->kids[0]);
      struct param *p2 = mk_nparams(n->kids[1]);
      struct param *p3 = p1;
      while (p3->next != NULL) p3 = p3->next;
      p3->next = p2;
      return p1;
      }
   return NULL;
}

Recursing through Trees Built from some weird grammar that was not cgram.y

• start at the beginning
• compile programs with gcc -c foo.c when testing fragments too small to link.
• In the trees, the node names ending with _N denote production rule #N that builds that nonterminal. If no _N is given it is presumed to be production rule #1 for that non-terminal.

code	tree	comments and/or symbol table
// empty file	n/a	is empty file a syntax error? or fine? In any case, create empty symbol table (nothing to insert)
int x;	FILE \ XDCLLIST_2 | \ ε COMMON_DCL / \ LVAR VARDCL / \ INT IDENT "int" "x"	Construct a type from INT "int" because it is known type basis case. Synthesize it up to VARDCL. Inherit it down into declarator list (including x) Insert "x" into current (global) symbol table because it is VARDCL kid #2.
int main() { }	FILE \ XDCLLIST_2 | \ ε XFNDCL / | \ FNRES FNDCL FNBODY_2 / / | \ \ INT IDENT ATL STMTLIST "int" "main" | | | ε ε ε	Construct a FUNC type from FNDCL Construct an TUPLE of length 0 from empty ATL Construct a INT type from FNRES Insert "main" into global symbol table Create a local symbol table Insert parameters into local symbol table Insert local variables into local symbol table

Mailbag

My code segfaults! Help!

I used to debug my segfaults with gdb. Then I found that valgrind was more effective, including cases gdb missed, and saves me a lot of time. Of course, the real secret is building a mental model (literally, pictures in your head) of the memory, and getting to the point where that mental model somewhat corresponds to reality.

In some example code on the class site, you have the type checking done at the same time as the symbol table entry. Is there any reason not to break these out into 2 separate functions?

No, no reason at all. In the old days there were reasons.

Is it normal to feel like my code for adding to and checking the symbol tables is messy, gross, and more hard-coded than I'd like?

The Flex and Bison homeworks had an unfair advantage: they were using a declarative language. Later homeworks will be messy and gross by comparison, because from here on out we are using the imperative (and OO, which is "imperative with style") paradigm. Walking trees and getting the details all in there will require a lot of code. How gross it is, "Zis is all up to you" (from a Geronimo Stilton book).

Does our language really require comma-separated lists of variables in declarations? It would be so much easier if it only did one variable per declaration.

Don't exaggerate. It would not be that much easier. This is now a j0 Level Two thing and Level One folks are off the hook, But (even for Level Two/Three folks) it is FINE to start by just getting it working for one-variable declarations, then detect and handle two-variable declarations as a special case, then generalize to 3+ variables. You might pass some test cases with only one-variable declarations working.

Connecting Trees to Traversals

• we've been looking at example code for building type information needed for declarations.
• for certain "interesting" tree nodes, we need to know not only what name goes in the symbol table, but what type
• examples given have been for some variant of the C language and its non-terminals
• for your homework you have to find corresponding nodes in your trees.
• if we look at j0gram.y, we find its functions (methods) described in rules such as

  MethodReturnVal : Type | VOID ;
  MethodDecl: MethodHeader Block ;
  MethodHeader: PUBLIC STATIC MethodReturnVal MethodDeclarator ;
  MethodDeclarator: IDENTIFIER '(' FormalParmListOpt ')' ;


• We can compare what we need to a corresponding example from the Go language go.y, which has functions described in rules such as

  xfndcl : LFUNC fndcl fnbody ;
  fndcl : sym '(' oarg_type_list_ocomma ')' fnres ;


/*
 * Semantic analysis from syntax tree, Go (subset) Edition
 */
void semantic_anal(struct symtab *current_st, nodeptr n)
{
   if (n==NULL) return;
   for(int i = 0; i < n->nkids; i++) semantic_anal(current_st, n->child[i]);
   switch (n->prodrule) {
   case XFNDCL : /* whole function */
      n->symtab = n->child[1]->symtab;
      populate_locals(n->symtab, n->child[2]);
      /*
       * visit body to check for undeclared/redeclared
       */
      check_variable_uses(n->child[2]);
      break;
   case FNDCL :  /* function header */
      char *name = get_func_name(n->child[0]);
      n->symtab = mk_symtab();

      n->type = get_type(FUNC);
      n->type->u.f.returntype = n->child[4]->type;
      n->type->u.f.params = n->child[2]->type;
      n->type->u.f.symtab = n->symtab;
      st_insert(current_st, name, n->type);

      populate_params(n->symtab, n->child[2]);
      break;
   }
}

Discussion of Tree Traversals that perform Semantic Tests

Suppose we have a grammar rule

AssignStmt : Var EQU Expr

We can write traversals of the whole tree after all parsing is completed, but for some semantic rules, another option is to extend the C semantic action for that rule with extra code after building our parse tree node:

AssignExpr : LorExpr '=' AssignExpr { $$ = alctree(..., $1, $2, $3);
	lvalue($1);
	rvalue($3);
	}

• In this example, lvalue() and rvalue() are mini-tree traversals for the lefthand side and righthand side of an assignment statement.
• Their missions are to propagate information from the parent, namely, inherited attributes that tell nodes whether their values are being assigned to (initialized) or being read from.
• Warning: since this is happening during parsing, it would only work if all semantic information that it depends on, for example symbol tables, was also done during parsing.
• Side note: I might be equally or more interested in implementing a semantic check to make sure the left-hand-side of an assignment is actually an assignable variable. How would I check for that?

void lvalue(struct tree *t)
{
   if (t->label == IDENT) {
      struct symtabentry *ste = lookup(t->u.token.name);
      ste->lvalue = 1;
   }
   for (i=0; i<t->nkids; i++) {
      lvalue(t->child[i]);
      }
}
void rvalue(struct tree *t)
{
   if (t->label == IDENT) {
      struct symtabentry *ste = lookup(t->u.token.name);
      if (ste->lvalue == 0) warn("possible use before assignment");
   }
   for (i=0; i<t->nkids; i++) {
      rvalue(t->child[i]);
      }
}

lecture #17 began here

Midterm Distribution

  294
  273 276
__265_268_________
  256 256 257
  242 242 245
__234_236_236_238_
  220 224
  214 215
__194_198_________
  185
  178
  170 171 174
__163_____________
  148 151
  140 141 145
  75

Comments on Midterm Exam Solutions

Real Life vs. toy lvalue/rvalue example

• information passed down (i.e. inherited attributes) may be passed as a (second or subsequent) parameter after the tree node the traversal is visiting.
• this example might apply mainly to local variables whose definition and use are in this same (function definition) subtree
• if you wanted to ensure a class or global variable was initialized before use, you might build a flow graph (often used in an optimization or final code generation phase anyhow)
• variable definition and use attributes are more reliably analyzed using a flow graph instead of the syntax tree.

(x, y, z int) vs. var a, b, c int

         ATL
       /  |  \
    ATL   ,    ARGTYPE
   / | \        |     \
ATL  , ARGTYPE  LNAME  LNAME
 |       |	 "z"   "int"
ARGTYPE LNAME
 |       "y"
LNAME
 "x"

     COMMONDCL
    /       \
  LVAR    VARDCL
          /    \
       DNL     NTYPE
       /|\       \
    DNL , LNAME  LNAME
    /|\    "c"   "int"
 DNL , LNAME
  |     "b"
LNAME
 "a"

void populate(struct tree *n, struct symtab *st)
{   int i;
    if (n==NULL) return;
    for(i=0; i<n->nkids; i++)
       populate(n->kids[i], st);
    switch (n->prodrule) {
    case VARDCL:
       n->type = n->kid[1].type;         // synthesiz
       n->kid[0].type = n->type;         // inherit
       insert_w_typeinfo(n->kid[0], st);
       break;
    case NTYPE:
       n->type = n->kid[0].type;
       break;
    case LNAME:
       if (!strcmp(n->token->text, "int"))
          n->type = T_INTEGER;
       break;
    case ARG_TYPE_LIST_1: /* ATL: arg_type */
       break;
    case ARG_TYPE_LIST_2: /* ATL: ATL ',' arg_type */
       break;
    case ARG_TYPE_1: /* AT: name_or_type */
       break
    case ARG_TYPE_2: /* AT: sym name_or_type */
       break
    case ARG_TYPE_3: /* AT: sym dotdotdot */
       break
    case ARG_TYPE_4: /* AT: dotdotdot */
       break
    }
}

/*
 * "inherited attribute" for type could go down by copying from
 * parent node to child nodes, or by passing a parameter. Which is better?
 */
void insert_w_typeinfo(struct tree *n, struct symtab *st)
{ int i;
  if (n == NULL) return;
  for(i=0; i<n->nkids; i++) {
     if (n->kids[i]) {
        n->kids[i]->type = n->type;
        insert_w_typeinfo(n->kids[i], st);
	}
     }
  switch (n->prodrule) {
  case DNL: /* ?? nothing needed */
    break;
  case LNAME:
    st_insert(st, n->token->text, n->type);
    break;
  }
}

• The primary component of semantic analysis in traditional compilers is the type checker.
• Starts with a representation of the types (a type system, such as our struct typeinfo *)
• Implement comparison and composition operators on those types using the semantic rules of the source language being compiled.
• add (mostly-) synthesized attributes through those parts of the language grammar (and treenodes) that involve expressions and values.
• Compute nodes' .type's via a tree traversal

Type Systems

• Base types (int, bool, etc.) are types
• Named types (via typedef, etc.) are types
• Types composed using other types are types, for example:
  • array(T, indices) is a type.
    • In some languages indices always start with 0, so array(T, size) works.
    • Some languages have lists intead of arrays.
  • T1 x T2 is a type (specifying, more or less, the tuple or sequence T1 followed by T2; x is a so-called cross-product operator).
    • Python has an actual tuple type, can PunY avoid it?
    • Tuple types used for parameter lists
  • record((f1 x T1) x (f2 x T2) x ... x (fn x Tn)) is a type
    • Like a tuple type except with names/fields/labels for each value
  • in languages with pointers: pointer(T) is a type
  • (T₁ x ... T_n) -> T_n+1 is a type denoting a function mapping parameter types to a return type
• In a language with classes, what would a class type be?
• In a language with dictionaries/tables, what would that type be?
• In some language type expressions may contain variables whose values are types.

Example Semantic Rules for Type Checking

• We have previous seen: representation of types using C structs.
• We could maybe use an additional example of constructing such type structures from a syntax tree, but we saw a basic one, for parameters.
• Now it is time to consider: using such type structures to perform type checking.
• Type Checking is a primary example of using synthesized semantic attributes.
• Q before we start: what-all has to be checked?

In-class brainstorming

What should the type rules for k0's PLUS be?

The following table is probably WRONG for Kotlin since it came from some other language. What should k0's answers be? In the table below, blank entries are compile time errors. Are there any uses of PLUS that need runtime checks?

row PLUS col	Int	Double	String	Boolean	Array	func
Int	Int	Double
Double	Double	Double
String	String	String	String
Boolean				Boolean
Array					Array
func

lecture #18 began here

Problems with weak Semi-colon Insertion

  f(
  x
  ,
  y
  )

  import foo
     .bar
     .baz

• There may be existing famous programming languages (Go?) that treat such examples as errors, but I agree that its not ideal.
• For k0 it is not the end of the world if your compiler chokes on certain uncommon newlines, but
• if these were how people normally write code, or if we were writing a real compiler, we ought to fix it.

Semi-Colon Insertion in Icon and Unicon

• Since it is way better, it is a bit embarrassing that folks at Google invented their own, less effective mechanism for Go.
• It is not that many lines of code, so we can totally do it for k0.
• I will update the "reference implementation" and will post on Canvas when it is available for you to look at.

1. Add a static array with two booleans for each token category:
   • is it a legal Beginner?
   • is it a legal Ender?
2. Remember previous token's Ender status, update each call to yylex()
3. Set a flag every newline to mark the next token First_on_a_line; update each call to yylex(); unset this flag after each token.
4. Algorithm for new yylex() shim function in between yyparse() and old yylex:


      IF we saved the last token (i.e., returned Semi-Colon last time) THEN
         return saved token
      ELSE {
         call old yylex()
         IF First_on_a_line AND Beginner AND last.Ender THEN {
             save_token; return Semi-Colon
             }
         ELSE return token
         }


Typechecking, cont'd

struct typeinfo *check_types(int operator,
                             struct typeinfo *e1,
                             struct typeinfo *e2) {
   switch(operator) {
      case PLUS: {
         /* implement row PLUS col table here */
         break;
         }
   }
}

What other type-check rules for k0 can we derive?

• Add switch cases for each operator
• Add checks for function calls (parameters, return types)
• ???

Let's look at a few lines of a typecheck example.

In the break between lecture and lab, a student reported that I have previously stated that redeclarations at the same level are OK so long as they are the same type. I believe I said that. Now: should that be true for PunY???

Type Checking Example

C	Kotlin
int foo(int x, char *y) { return x; } int main() { int z; z = foo(5, "funf"); return 0; }	fun foo(x : Int, y : String) : Int { return x } fun main() : Int { var z : Int z = foo(5, "funf") return 0 }

After parsing, the symbol table (left) and syntax tree for the call (right) looks like:

The typecheck of this tree proceeds as a post-fix traversal of the tree. Type information starts from leaves, which either know their type if they have one (constants) or look up their type in the symbol table (identifiers). Can you hand-simulate this in the correct order, filling in .type fields for each tree node?

Mailbag

I was wondering if names that are declared as function should be treated similarly to other names. If I define a function with the name "stuff", can I, in the same scope, declare "stuff" as a variable, or is that illegal? What about the inverse, trying to declare a function with the same name as an existing variable?

Follow the rules defined for your language. In at least one major language (do you know which?), function names tracked differently in the symbol table from variables: there is a function slot and a variable slot for each name. But in most languages, the function stuff() should get inserted into the module/file/global scope. Declaring a variable of the same name is an error in that scope, but just fine in a local scope.

Type Promotion, Type Equivalence, and Automatic Conversion

When is it legal to perform an assignment x = y?

• In most languages that will be legal when x and y are identical types...
• Many languages such as C have automatic promotion rules for combining related scalar types such as shorts and longs.
• Results of type checking may include not just a type attribute, they may entail a type conversion of operands, which can be represented by inserting a new node in the tree to denote the promoted value.
• A simple conversion might be a promotion of a smaller # of bits to a larger # of bits, such as short to long, or float to double. Maybe a machine instruction does that.
• Some languages feature more complex conversions such as converting a string "3.14" to a double. Often that will be implemented via a runtime system function call rather than a machine instruction.

Type Promotion / C Example:

Implicit	Explicit
int x; long y; y = y + x;	int x; long y; y = y + (long)x;

Type Conversion / int to float

In some languages, it is not about different sizes of integers. What about floats/doubles vs. ints? What happens? Could PunY users ever write code like this?

Implicit	Explicit
x : int y : float y = y + x	x : int y : float y = y + float(x)

This may come about in real life in parameters and return values, such as an int parameter passed into a function that requires a float.

int x, y;
    ...
y = sqrt(y*y + x*x);

Name equivalence vs. structure equivalence

Features like typedef complicate matters.

If you have a new type name MY_INT that is defined to be an int, is it compatible to pass as a parameter to a function that expects regular int's? In C, the answer is: yes.

Object-oriented languages also get interesting. Do OOP languages use name equivalence or structure equivalence?

Name+inheritance. Subclasses usually are allowed anyplace their superclass would be allowed.

Implementing Structs

1. In C/C++, storing and retrieving structs by their label -- the struct label is how structs are identified. In Go/VGo, the reserved word type is more like a C/C++ typedef. If you were doing C/C++-style struct labels, the labels can be keys in a separate hash table, similar to the global symbol table. You can put them in the global symbol table so long as you can tell the difference between them and regular symbol names, for example by storing them as "struct foo" (not a legal name) instead of just storing them as "foo".
2. You have to store fieldnames and their types, from where the struct is declared. This is conceptually a new local scope. In a production language you would use a hash table for each struct, but in CSE 423 a link list would be OK as an alternative. Then again, if you've built a hash table data type for the global and local symbol tables, why not just use it for struct field scopes?
3. You have to use the struct's type information to check the validity of each dot operator like in rec.foo. To do this you'll have to lookup rec in the symbol table, where you store rec's type. rec's type must be a struct type for the dot to be legal, and that struct type should include the hash table or link list that gives the names and types of the fields -- where you can lookup the name foo to find its type.

"Old Mailbag"

I am having a problem with a segmentation fault. Can you help?

When sticking print statements into your program no longer cuts it, your two best hopes are GDB and Valgrind. Yes, I can usually help.

• the first thing I will want to see is your valgrind run on your segfault
• the second thing I am going to want to see is your open gdb session at the point of the segfault, with the "where" output, and the "print" command run on each variable on the line where the segfault occurred

The problem is, there is just so much to type check (I mean, literally everything has a type!); can you suggest any ways to go about this in a quicker manner, or anything that could be pruned/ignored?

• Not literally everything.
  • Only the expression grammar nodes have a type.
  • Plus the subset of declarations that you must support. They have types.
  • "expression grammar" in mainstream algol-like languages are the non-terminals in the grammar underneath Expr (or similar). In Python/Java grammars that includes expr_stmt or StmtExpr. The non-terminals above that, starting with Statement/Stmt typically don't compute values or have types.
  • In some so-called expression-based languages, it is more like: everything is an expression. So be it. Not our problem.
• The type checking will typically not do anything on $$=$1 rules, so the expression grammar may have somewhere around 20 productions where type checking goes -- pretty much operators and calls.
• Feel free to rewrite the grammar to reduce the number of productions where you do type checking.
• Type checking rules for like-minded operators are identical; use that.
• Write helper functions, share common logic.

Need More Help with Type Checking?

• Read the textbooks, lecture notes, etc.
• Implement the C Type Representation given previously, or something similar/equivalent
• Figure out how to construct types for your basis cases (constants)
• Figure out how to construct types while walking variable declaration subtrees (extension of how to find them for the symbol table)
• Figure out how to construct types while walking function prototypes and function declaration subtrees
• Implement a check_type() function to compute type for internal node. What OPERATIONS (functions) do you need, in order to check whether types are correct? What parameters will they take?

struct typeinfo with struct params

• Last class we did a function call example where we were building a synthesized .type struct typeinfo attribute in each tree node.
• the interesting bits often occur at the sequence of struct params that we need to build in order to check formal params vs. actual params
• Option #1: build it in a different synthesized attribute, .params
• Option #2: implement a TUPLE type for stringing together multiple types
• Option #3: (if you really like linked lists) allow a parameter list as one of the things a struct typeinfo can hold (alternate representation of a tuple)

  struct type info {
    int basetype; // basetype PARAMLIST uses union member parms
    union {
      struct param *params; // linked list of parameters
     ...
    } u;
    };


• Warning/gotcha: what is the difference between a single parameter with its native basetype, and a parameter list of length 1 that contains that type? When do you convert from type to paramlist type?
• Warning/gotcha: struct param has names and types. But some languages have prototypes that only have the types? If you had to support that, how would we represent them?

Note that if you stick parameter lists in the type representation, this means your struct typeinfo holds some things that are not C types in and of themselves, but are used in larger composite types. I guess a TUPLE was a similar pseudo-type option.

Type Checking Function Calls

• at every node in our tree, we build a .type field
• Probably logically two separate jobs:
  • Build types for declarations, insert them into symbol table(s). Performed during the declarations pass of semantic analysis.
  • Build types for expressions, lookup symbols from symbol table(s) Performed during the typecheck pass of semantic analysis.
• For the typecheck pass, a recursive function, typecheck(n), traverses the tree sticking types into expression nodes.
• you may choose to write a helper function check_types(OPERATOR, operandtype, operandtype) to do the heavy lifting at each node
• What will type checking a function call need?
• Can we just check the type of the symbol against the type of the call expression?
• Type of symbol: constructed as per last lecture. In symbol table.
• Type of call expression (built within expression part of grammar), SANS return type.
• Type check verifies it and replaces it with return type.

void typecheck(nodeptr n)
{
   if (n==NULL) return;
   for(int i; i < n->nkids; i++) typecheck(n->child[i]);
   switch(n->prodrule) {
   ...
   case POSTFIX_EXPRESSION_3: {
      n->type = check_types(FUNCALL, n->child[0]->type, n->child[2]->type);
      }
   }
}

...

typeptr check_types(int operand, typeptr x, typeptr y)
{
   switch (operand) {
   case  FUNCALL: {
      if (x->basetype != FUNC)
         return type_error("function expected", x);
      if (y->basetype != TUPLE)
         return type_error("tuple expected", y);
      if (x->u.f.nparams != y->u.t.nelems)
         return type_error("wrong number of parameters", y);

      /*
       * for-loop, compare types of arguments
       */
      for(int i = 0; i < x->u.f.nparams; i++)
         if (check_types(PARAM, x->u.f.params[i], y->u.t.elems[i]) ==
	     TYPE_ERROR) return TYPE_ERROR;
      /*
       * If the call is OK, our type is the function return type.
       */
      return x->u.f.returntype;
      break;
      }
   }
}

Semantic Analysis for Structs and Classes

• Build struct/class-level symbol tables
• In the implementation of x.y (and x->y in languages that have it), lookup y within x's type's symbol table, using privacy rules.
• If you did classes: within class member functions, three-level symbol lookup (local first, then class, then global).
• If you did inheritance, that would be a whole fun topic. Multiple inheritance even more so!
• ...what are the other issues for semantic analysis of objects in our language, as you understand it?

How to TypeCheck Square Brackets

postfix_expression LB expression RB

1. recursively typecheck $1 and $3 ... compute/synthesize their .type fields.
2. What type(s) does $1 have to be? LIST/ARRAY, or STRING (or DICT/TABLE, if a table type exists)
3. What type(s) does $3 have to be? INTEGER (or e.g. STRING/ARRAY OF CHAR, for tables with those keys)
4. What is the result type we assign to $$? Lookup the element type from $1, possibly Any

int typecheck_squarebrackets(struct tree *n)
{
   struct tree *n1 = n->child[0];
   struct tree *n3 = n->child[2];
   /*
    * Typecheck children. This is a mutual recursion.
    */
   if (typecheck(n1) == TYPE_ERROR ||
       typecheck(n3) == TYPE_ERROR) {
      n->type = TYPE_ERROR;
      return TYPE_ERROR;
      }

   /*
    * Given the children's types, see whether n1[n3] is legal.
    * For PunY, you need to allow for Any at various points.
    */
   switch (n1->type->basetype) {
   case STRING:
      /* ... insert string typecheck code here */
      /* check if n3's type is integer */
      if (n3->type->basetype != BT_INTEGER) {
          bad_type("list must be subscripted with integers", n3);
	  return TYPE_ERROR;
          }
      /* a subscript of a string is still a string, right? */
      n->type = n1->type;
      break;
   case LIST:
      /* check if n3's type is integer */
      if (n3->type->basetype != BT_INTEGER) {
          bad_type("list must be subscripted with integers", n3);
	  return TYPE_ERROR;
          }
      /* assign n's type to be n1's element type */
      n->type = n1->type->u.l.elemtype;
      break;
   case DICT:
      /* check if n3's type is n1's index type */
      if (n3->type->basetype != n1->type->u.t.indextype->basetype) {
          bad_type("table must be subscripted with its declared index type", n3);
	  return TYPE_ERROR;
         }
      /* assign n's type to be n1's element type */
      n->type = n1->type->u.t.elemtype;
      break;
   default:
      bad_type("list or table expected in [] operation", n1);
      /* what does n's type field hold, then */
      n->type = /* ?? */
      return TYPE_ERROR;
      }

      if (n3->type->basetype != INTEGER) {
         bad_type("index must be integer in [] operation", n3);
         }
      n->type = n1->type->elemtype;

      if (n3->type->basetype != n1->type->indextype) {
         bad_type("index type must be compatible in [] operation", n3);
         }
      n->type = n1->type->elemtype;

What other type checking examples should we be doing?

• Operators like x + y
• Parameters for a function call f(x,y) where arguments must be checked
• Subscript operator x[y], dot operator x.y

Mailbag

I have homework due in other classes. Can we have an extension?

The bad news is: we don't have room in the semester for much extension. The good news is: by this point, the late fees are very low.

I'm still working on hw4 since I can't get my assignment 4 working clean enough for hw5. What should I do? I do not wanna fail this class and its not like I haven't been putting lots of effort into it.

You are graded relative to your peers, and many of your peers are also far behind. If you have been putting in appropriate effort, and you are getting instructor help when you get stuck, you should be able to make progress on your HW. If you stay in, and give it your best shot, odds are good that relative to your peers, you will be OK.

When int and double mix, C-based languages promote int to double. Do we ever have to demote from double to int?

What should happen if the program contains:

   i : int
   r : float
   r = 27.0
   i = 3.1415 * r * r # implicit demotion to int
   i = int(3.1415 * r * r) # explicit demotion to int

• Is all this legal Python? yes.
• Does CSE 107 use implicit demotion? (not sure)
• Does it use int()? Yes.

"Drop day" commentary

• If you need advice on whether to withdraw, I am happy to meet or zoom
• Personally, I would guess that: if you do not have syntax trees that you can trust yet, it would be better to take the class again. But it is your call
• If you have mostly-reasonable trees and are struggling e.g. with symbol tables, the class is still pass-able but you will need to persist, and get help where needed, maybe more help than you have asked for up to now.

Thoughts on HW

• Class Specs say the zip should not unpack in a subdirectory
  • if you did not comply, my script might try to move your files up a directory so I can build them
  • if you named your directory the same as the name of the required compiler executable name, "make" will fail for me
• Class Specs say the zip should not include generated files
  • This includes executables, .o or .class, lex.yy.c or Yylex.java, *.tab.c or Parser.java...
  • I expect my script to be able to build your compiler from scratch, and submitting these files prevents that
• Some submissions appear not to have been tested on login.cs.nmt.edu.
  • If you do not build and run there you might not get many points.
  • For example, if you build your .zip on MACOS and leave everything in and the .zip includes a bunch of MACOS "data fork" subdirectories, that makes extra clutter that might or might not pose extra build troubles on Linux. I mean, what could possibly go wrong during my testing/grading? Lots. As another example, some students leave their entire .git repo in their submission. Please do not.

lecture #19 began here

Another Typecheck Example

void write(int);
int fib(int);
void main()
{
   int i;
   i = 0;
   while (i < 5) {
      write(fib(i));
      i += 1;
      }
}
int fib(int n)
{
  if (n < 3) { return 1; }
  return fib(n-2) + fib(n-1);
}

fun fib(n : Int) : Int {
  if (n < 3) { return 1 }
  return fib(n-2) + fib(n-1)
}
fun main() {
   var i : Int = 1
   while (i < 7) {
      println(fib(i))
      i += 1
      }
}

See below for a syntax tree

• given the syntax tree, compute the types of all symbols and expressions.
• You have exactly one hammer to use: tree traversal

     void treewalker(struct tree *n) {
        /* pass inherited attribs into children */
        /* visit children */
        /* make use of synthesized attribs in children */
     }


  You can have as many passes, calling as many different traversal functions, as you want.
• Do you know how to build/populate the symbol tables for this? Practice simulate/visualize that code on the tree for this program.
• Do you know how to type check it? Practice simulate/visualize that code on the tree for this program.

From Type Checking on to Code Generation

• We could still decide to do additional examples of type checking.
• It is fair game for you to ask more questions as you work on it.
• Main reason to compute all this type information was: we need it for code generation. And we need it because different types are different sizes and call for different machine instructions.
• Fancy words for adding information to the syntax tree (and symbol tables, which are mainly used so you can look up things in the syntax tree): decoration, annotation... basically, it is a fundamental task of computing to turn data into information by analyzing it and adding value.

Type Checking Fibonacci Example, Cont'd

void write(int);
int fib(int);
void main()
{
   int i;
   i = 0;
   while (i < 5) {
      write(fib(i));
      i += 1;
      }
}
int fib(int n)
{
  if (n < 3) { return 1; }
  return fib(n-2) + fib(n-1);
}

The full syntax tree looks like the following. Still barely legible on my office monitor

Now, let's crank the tree traversal for the main typecheck of the executable code.

lecture #20 began here

Mailbag

My team did not get the grade we deserved on HW#4

I want to award points for implemented and demonstrable functionality. Feel free to make a show-and-tell appointment, or please point me at test cases that show functionality, and I will adjust grades accordingly.

I have been having a bug... I am at the point that I'm thinking I should start over with my code entirely from scratch and try to rebuild it. But if I do this I really have no hope of finishing HW5 which I am assuming will carry on to HW6. I recently found an error with some of the stuff I wrote in HW3 which was causing problems with my HW4... I am wondering if there is anyways to have stuff that we are currently working on now graded separately. Otherwise I either will have to rewrite my entire code again being late on everything. I would rather not do this as I did it in HW3 when my prior code was not working. But otherwise all of my homeworks moving forward is not going to run properly because of errors in prior homework

Yup, the later homeworks depend upon earlier ones. You should not try and go on to a later homework if an earlier one has not been completed to a passing level. If an earlier homework was not at a passing level, you should fix and resubmit, and you are encouraged to seek help if that is needed.

Run-time Environments

How does a compiler (or a linker) compute the addresses for the various instructions and references to data that appear in the program source code?

To generate code for it, the compiler has to "lay out" the data as it will be used at runtime, deciding how big things are, and where they will go.

• Relationship between source code names and data objects during execution
• Procedure activations
• Memory management and layout
• Library functions

Scopes and Bindings

• Variables may be declared explicitly or implicitly in some languages
• Scope rules for each language determine how to go from names to declarations.
• Each use of a variable name must be associated with a declaration.

Environment and State

Runtime Memory Regions

• On moderm CPU's the code section is usually read-only, and can be shared among multiple instances of a program. (Q: under what circumstances do you ever have multiple instances of a program?) Dynamic loading may introduce multiple code regions, which may not be contiguous, and some of them may be shared by different programs.
• The static data area may consist of two sections, one for "initialized data", and one section for uninitialized (i.e. all zero's at the beginning).
• The stack is typically bounded and "small". But recursive algorithms on big data may need a huge stack. Some OS'es may start a process with a small stack, but allow it to explicitly request growth, up to an upper bound.
• The heap is often gigantic, far dominating all other regions. Some OS'es place the heap at the very end of the address space, with a big hole so that either the stack or the heap may grow arbitrarily large. Other OS'es fix the stack size and place the heap above the stack and grow it down.

HW#6

Questions to ask about a language, before writing its code generator

May procedures be recursive?

All but toy languages require this and it entails a stack region

What happens to locals when a procedure returns?

Lazy deallocation would be exceedingly rare

May a procedure refer to non-local, non-global names?

nested procedures? dynamic scoping? implicit object/struct field names?

How are parameters passed?

Many styles possible. Different declarations for each? Rules hardwired by type?

May functions be passed as parameters?

Not too awful. Function pointers are popular with both the functional programming and operating systems communities!

May procedures be return values?

Adds complexity for non-local names

May storage be allocated dynamically (like, on the heap)

All modern languages require this, but some languages do it with syntax (new) others with library (malloc))

Is storage deallocated explicitly

Do we have a garbage collector? Does that affect code generation?

"Modern" Runtime Systems

A "self" or "this" in non-static method calls.

Possibly implemented via a dedicated register, or an implicit, extra parameter. Either way, OO slightly alters the activation record.

Garbage collection.

Automatic (heap) storage management is one of the most important features that makes programming easier. The Basic problem in garbage collection is: given a piece of memory, are there any pointers to it? (And if so, where exactly are all of them please). Approaches:

• reference counting
  • oldest method, still used e.g. by Python
  • space cost for every object to keep a counter
  • time cost to increment/decrement counters every assignment
  • problem when objects pointers can have cycles, e.g. graphs
• traversal of known pointers (marking)
  • copying (2 heaps approach)
  • compacting (mark and sweep)
  • generational (tenure systems)
• conservative collection
  • "assume everything is a pointer"

There is a fine paper presenting a "unified theory of garbage collection"

Reflection.

Objects can describe themselves, via a set of member functions. This plays a central role in Visual GUI builders, IDE's, component architectures and other uses.

Serialization

Objects can convert into a string of bits and vice-versa. If you can do this, you can store on disk, or move across a network to another machine. Its easy to move data-only objects, but difficult to move other OS resources besides memory.

Just-in-time compilation.

A virtual machine ("byte code") execution model...can be augmented by a compiler built-in to the VM that converts VM instructions to native code for frequently executed methods or code blocks.

Security model.

Modern languages may attempt to guarantee certain security properties, or prevent certain kinds of attacks.

Mailbag

So, really, how would/do I handle classes (or in some languages: structs)?

Well... to answer this question:

1. In k0, we are only supporting a tiny # of 107-required "built-in to k0" class types. Maybe just strings? Anything else?
2. there should be a basetype (integer code) for class (or struct) in your type representation.
3. In k0 all variables of a declared class type start with a initializer or a null value (ensure no uninitialized data).
4. the same class/structure name/label cannot be declared twice. Pre-Insert the classname as a global symbol table entry for built-in class types.
5. each unique class type should be able to tell you its fields' and methods' names and types.
6. each unique class type should be able to lookup a field/method by name and tell you its type. i.e. classes define a local scope
7. Variables declared to be of a class type can be assigned from any value of that type, and not any other type.
8. The same exact-match type check semantics are applied e.g. to passing a class instance as a parameter, it is like an assignment
9. Do objects need to support any other operators besides assignment and being passed as a parameter? Method calls, for a limited number of methods.
10. For languages with structs only:
    • check your language. In many/most languages struct values cannot be assigned to other named struct types, even if they are "equivalent" in size and shape
    • while you cannot declare a struct variable for an undeclared struct type, you can declare a pointer to an unknown struct type.
    • if we were doing typedefs we would have extra complications like distinguishing a variable of a struct type from a typedef name for a struct type.

Activation Records

⋮	⋮ earlier activation record ⋮
⋮	⋮ earlier activation record ⋮
return value parameter        ⋮ parameter previous frame pointer (FP) saved registers        ⋮ %rbp → saved PC local     ⋮     local temporaries %rsp →         ⋮	current activation record
"top" of stack ⋮ grows down by subtracting from %rsp	calls create new activation records here

At any given instant, the live activation records form a chain and follow a stack (push/pop) discipline for allocation/deallocation. Since each activation record contains a pointer to the previous one, it is really pretty much a linked list we are talking about, with a base pointer register holding the pointer to the top of the stack.

Over the lifetime of the program, all these activation records, if saved, would form a gigantic tree. If you remember all prior execution up to a current point, you have a big tree in which its rightmost edge are live activation records, and the non-rightmost tree nodes are an execution history of prior calls. (Program Monitoring and Visualization could allow us to depict and inspect this history tree.)

Variable Allocation and Access Issues

globals

easy, symbol table lookup... once we have figured out how to allocate addresses in a process that does not exist yet.

locals

easy, symbol table gives offset in (current) activation record

objects

Is it "easy"? If no virtual semantics*, symbol table gives offset in object, activation record has pointer to current object in a standard location. (This is the reason C++ does not use virtual semantics by default.)
For virtual semantics, generate code to look up offset in a table at runtime, based on the current object's type/class.

locals in some enclosing block/method/procedure

ugh. Pascal, Ada, and friends offer their own unique kind of pain. Q: does the current block support recursion? Example: for procedures the answer would be yes; for nested { { } } blocks in C the answer would be no.

• if no recursion, just count back some number of frame pointers based on source code nesting
• if recursion, you need an extra pointer field in activation record to keep track of the "static link", follow static link back some # of times to find a name defined in an enclosing scope

*What are "Virtual" Semantics?

If you say the keyword "virtual" in C++, or if you use just about any other OOP language, subclassing and interfacing semantics mean that the address referred to by o.x or o.m() has to be calculated at runtime by looking up o's actual class, using runtime type information.

Sizing up your Regions and Activation Records

• The size of chars is 1. We could make them use an alignment of 8, but then arrays of char would be all...wrong.

• The size of integers is 8 (for x86_64; varies by CPU).

• The size of reals is... 8 (for x86_64 doubles; varies by CPU).

• The size of strings is... 8? (varies by CPU and language)
• The size of arrays is (sizeof (elementype)) * the number of elements. In static languages. The size of arrays/lists in dynamic languages might be more complicated.
• what about sizes of structs/objects? They are the size of the sum of their members... after adding in padding to meet alignment requirements.

You do this sizing up once for each scope. The size of each scope is the sum of the sizes of symbols in its symbol table.

Break Questions

Jackson's Question: what about x = if ...

Kotlin is more expression-oriented than C. Things like if's and while's produce values that can be used in surrounding expressions. We are mostly not bothering with this "parlor trick"...but are there any gotcha's?

Hunter's question: what about dot? Do we have anything

I thought we'd need dot for some built-ins, but maybe not.

Intermediate Code Generation

Can be formulated as syntax-directed translation

• add new semantic attributes where necessary. For expression E we might have

  E.addr

  the location that at run-time will hold the value of E. Sometimes called .place or .location.

  E.icode

  the sequence of intermediate code statements evaluating E.

• Option (A): leave everything as names for now. "declare" the names in intermediate code, specifying which memory region they live in, and how many bytes big they are. assume an assembler will convert names to addresses during final code generation.
• Option (B): designate only four names for the four memory regions: code, global/static, stack, and heap. Specify all addresses as offsets in one of those regions. For first two, offsets are relative to a base pointer that is the start of the two region. For the latter two, offsets are relative to a register (current activation record/base pointer, and current "this/self" object pointer).

Mailbag

These HW are big. Is it possible to reintegrate group work?

Yes. But you all are responsible for understanding how your compiler works. See HW #6.

Functions for Intermediate Code Generation

• As per the lab, a constructor function for allocating one instruction, and functions for building linked lists of instructions.

  gen(op,addr1,addr2,addr3)

  allocate and initialize

  concat(l1, l2)

  (possibly non-destructively) return a list concatenation of l1 followed by l2

• helper functions, e.g.

  genlocal([n])

  returns a new one-word temporary variable each time it is called. Optionally, it could take a parameter n to specify a size in #words, or #bytes. Let's say it is the number of 8-byte words. Default is one word (8 bytes), always out of the local region, on the stack.

  genlabel()

  returns a new label each time it is called. A label is a name for a code region address, but for practical purposes genlabel() could just return a unique integer i by incrementing a counter each time, or string "L"||i (e.g. "L29") each time it is called.

• actions that generate intermediate code formulated as semantic rules

Semantic Rules for Intermediate Code Generation

Production	Semantic Rules
Assignment : IDENT '=' AddExpr	Assignment.addr = IDENT.addr Assignment.icode = AddExpr.icode ||| gen(ASN, IDENT.addr, AddExpr.addr)
AddExpr : AddExpr1 '+' MulExpr	AddExpr.addr = genlocal() AddExpr.icode = AddExpr1.icode ||| MulExpr.icode ||| gen(ADD,AddExpr.addr,AddExpr1.addr,MulExpr.addr)
AddExpr : AddExpr1 '-' MulExpr	AddExpr.addr = genlocal() AddExpr.icode = AddExpr1.icode ||| MulExpr.icode ||| gen(SUB,AddExpr.addr,AddExpr1.addr,MulExpr.addr)
MulExpr : MulExpr1 '*' UnaryExpr	MulExpr.addr = genlocal() MulExpr.icode = MulExpr1.icode ||| UnaryExpr.icode ||| gen(MUL,MulExpr.addr,MulExpr1.addr,UnaryExpr.addr)
MulExpr : MulExpr1 '/' UnaryExpr	MulExpr.addr = genlocal() MulExpr.icode = MulExpr1.icode ||| UnaryExpr.icode ||| gen(DIV,MulExpr.addr,MulExpr1.addr,UnaryExpr.addr)
UnaryExpr : '-' UnaryExpr1	UnaryExpr.addr = genlocal() UnaryExpr.icode = UnaryExpr1.icode ||| gen(NEG,UnaryExpr.addr,UnaryExpr1.addr)
UnaryExpr : '(' AddExpr ')'	UnaryExpr.addr = AddExpr.addr UnaryExpr.icode = AddExpr.icode
UnaryExpr : IDENT	UnaryExpr.addr = IDENT.addr UnaryExpr.icode = emptylist()

lecture #21 began here

Three-Address Code

• translate easily into real machine code
• form a linearized representation of a syntax tree
• allow us to check our own work to this point
• allow machine independent code optimizations to be performed
• increase the portability of the compiler

Instructions: with the exception of immediate mode, operands are addresses and instructions implicitly dereference values in memory located at those addresses. Words are understood to be a 64-bit size unit. Offsets are in bytes (nwords * 8).

opcode/mnemonic	C equivalent	description
ADD,SUB,MUL,DIV	x = y op z	store result of binary operation on y and z to x
NEG	x = -y	store result of unary operation on y to x
ASN	x = y	store y to x
ADDR	x = &y	store address of y to x (*)
LCON	x = *y	store contents pointed to by y to x (*)
SCON	*x = y	store y to location pointed to by x (*)
GOTO	goto L	unconditional jump to L
BLT,BLE,BGT,BGE	if (x rop y) goto L	test relation and conditional jump to L
BIF	if (x) goto L	conditional jump to L if x==0
BIFN	if (!x) goto L	conditional jump to L if x!=0
PARM	param x	store x as a parameter
CALL	call p,n,x	call procedure p with n words of parameters, store result in x
RET	return x	return from procedure, use x as the result

(*) Not all languages will use all TAC instructions.

Mailbag

How do I get started on code generation?

Start at the leaves, a.k.a. basis cases.

• Fill in attributes, possibly one at a time.
  • For example, assign .addr values for everything.
• Allocate all your labels and temporary variables
• Assign .true and .false fields in your condition exprs
• You can do all this in 1, 2, or 3 or more tree traversals

After you have done these things (you may need to print trees that show), you are ready to start allocating .icode

What do we do about strings?

There might be material about this elsewhere in the lecture notes, but here are a few thoughts:

• Strings are in k0 at all, mainly to allow programs to perform human-readable input/output.
• Some languages have strings-as-byte-arrays mentality, some have strings-as-objects mentality. Kotlin has both, sort of.
• For k0, especially during semantic analysis e.g. type checking, I have thought mainly about strings-as-objects. Or as another primitive built-in type. Easy to type check.
• Even if takes this higher level approach, one still has to be able to println("Hello") and such. How do we treat string literals, especially when it comes time to generate code?
• strings-as-objects languages still have to have a lower-level internal representation of the actual string data, which probably resembles strings-as-byte-arrays.

declaration	description
glob x,n	declare a global named x that has n words of space
proc x,n1,n2	declare a procedure named x with n1 words of parameter space and n2 words of local variable space
loc x,n	use name x to refer to offset n in the local region (the procedure frame); replaces any prior definiton of x that may exist.
lab Ln	designate that label Ln refers to the next instruction
end	declare the end of the current procedure

TAC for Composites/Containers and Object Oriented Code

• Arrays and structs hold multiple values.
• the address of a value is computed as an offset from a base address for the entire composite object.
• One can use the existing TAC instructions, by loading a base address explicitly using ADDR and then performing explicit arithmetic on it.
• Or one can add new TAC instructions as needed e.g. for array, struct, or map objects.

The sketchiness of the following table is pretty good evidence that we are just making this up as we go along.

mnemonic	equivalent	description
MEMBER	x = y.z	lookup field named z within y, store address to x
NEW	x = new Foo,n	create a new instance of class named x, store address to x. Constructor is called with n parameters (previously pushed on the stack).
class	class x,n1,n2	pseudoinstruction to declare a class named x with n1 bytes of class variables and n2 bytes of class method pointers
field	field x,n	pseudoinstruction to declare a field named x at offset n in the class frame

Note: no new instructions are introduced for a member function call. In a non-virtual OO language, a member function call o.m(x) might be translated as Foo__m(o,x), where Foo is o's class. Other translation schemes are possible.

Variable Reference, Dereference, and Assignment Semantics

   int y = x + (x = x + 1) + x;

   int y = x + x + (x = x + 1) + x;

Operator precedence (and parentheses) determine what order the expressions are evaluated. But evaluating something as simple as expr+expr can give surprise results if variables' values can change between their reference construction and dereferencing operation.

Tree Traversals for Moving Information Around

• NOT a "blind" traversal that does the same thing at each node.
• often a switch statement pre- or post- the traversal of children
• switch cases are the grammar rules used to build each node
• lots of similar-but-different cases, for similar-but-different production rules for the same non-terminal.

Intermediate Code Generation: Traversal Code Example

void codegen(nodeptr t)
{
   int i, j;
   if (t==NULL) return;

   /*
    * this is a post-order traversal, so visit children first
    */
   for(i=0;i<t->nkids;i++)
      codegen(t->child[i]);

   /*
    * back from children, consider what we have to do with
    * this node. The main thing we have to do, one way or
    * another, is assign t->code
    */
   switch (t->label) {
   case PLUS: {
      t->icode = concat(t->child[0]->icode, t->child[1]->icode);
      g = gen(PLUS, t->address,
              t->child[0]->address, t->child[1]->address);
      t->icode = concat(t->icode, g);
      break;
      }
   /*
    * ... really, a bazillion cases, up to one for each
    * production rule (in the worst case)
    */
   default:
      /* default is: concatenate our children's code */
      t->icode = NULL;
      for(i=0;i<t->nkids;i++)
         t->icode = concat(t->icode, t->child[i]->icode);
   }
}

Intermediate Codegen Example

• A lecture or two ago we had a request in class to do an example of intermediate code generation.
• But we aren't ready to do any non-toy example yet, you have to get through some more lecture material on code generation for control flow.
• But consider the following example.

void write(int);
void main()
{
   int i;
   i = 5;
   i = i * i + 1;
   write(i);
}

fun main() {
   var i : Int;
   i = 5;
   i = i * i + 1;
   println("$i");
}

proc main,0,32
	ASN	loc:0,const:5
	MUL	loc:8,loc:0,loc:0
	ADD	loc:16,loc:8,const:1
	ASN	loc:0,loc:16
	PARAM	loc:0
	CALL	write,1,loc:24
	RETURN

Code Gen Example, cont'd

The prerequisites for intermediate codegen also include semantic analysis (symbol tables and typechecking), and we need to simulate that, or present it as already accomplished, in order for the actual codegen tree traversal to make sense. In particular, for codegen we need .type and .addr, which for variables come from the symbol table. I kinda promised you a code generation example last Friday, but decided that we need to talk about control flow first! And before that, here's a few more thoughts on built-ins and strings.

More About Built-ins, and Strings

• There are println!() and read!(). We are doing subsets.
• you proposed we support format!(), like println!() but returns a string instead of writing output. I accepted this.
• Our (minimal) support for a String type might need us to do a few more built-ins.

What is the bare minimum for strings in Kotlin?

• Previously we have said we'd do "minimal strings". My aim was that we'd support an ASCII-subset string type. My initial reading suggested that the most flexible would be for it to be a subset of the Kotlin String type.
• The "minimal operations" are concatenation, and length. We might also need to pick out elements. And we might need to compare strings.
• We need to know how to generate code for string literals, and how to deal with any compatibility issue between the String type and the string literals

Compute the Offset of Each Variable

Add an address field to every symbol table entry.

The address contains a region plus an offset in that region.

No two variables may occupy the same memory at the same time.

At the intermediate code level, do not bother to re-use memory. In optimization and then in final code, re-use will be a big thing.

Locals and Parameters are not Contiguous!

lecture #22 began here

Announcements

• HW#6 due date extended to Monday April 21, 11:59pm (no further extensions)
• HW#7 will be due Thursday May 8, 5pm (no further extensions)

Basic Blocks

What are the basic blocks in the following 3-address code? ("read" is a 3-address code to read in an integer.)

	read x
	t1 = x > 0
	if t1 == 0 goto L1
	fact = 1
	label L2
	t2 = fact * x
	fact = t2
	t3 = x - 1
	x = t3
	t4 = x == 0
	if t4 == 0 goto L2
	t5 = addr const:0
	param t5		; "%d\n"
	param fact
	call p,2
	label L1
	halt

Discussion of Basic Blocks

Basic blocks are often used in order to talk about specific types of optimizations.

For example, there are optimizations that are only safe to do within a basic block, such as "instruction reordering for superscalar pipeline filling".

So, why introduce basic blocks here?

our next topic is intermediate code for control flow, which includes gotos and labels, so maybe we ought to start thinking in terms of basic blocks and flow graphs, not just linked lists of instructions.

view every basic block as a hamburger

it will be a lot easier to eat if you sandwich it inside a pair of labels:

	label START_OF_BLOCK_7031
	...code for this basic block...
	label END_OF_BLOCK_7031

the label sandwich lets you:

• target any basic block as a control flow destination
• skip over any basic block

For example, for an if-then statement, you may need to jump to the beginning of the statement in the then-part...or you may need to jump over it, the choice depending on the outcome of a boolean.

Operators

Old Mailbag

What do I have to do to get a "D"?

You are graded relative to your peers. In previous semesters the answer to this has been something like: pass the midterm and final, and convince me that you really did semantic analysis. If you did poorly on the midterm, you might want to try and do better on the final, and you might want to get some three address code working. Do you really want to settle for a "D"? Almost everyone who was "D" material dropped the class already.

Are we supporting comparisons of doubles with ==, !=, <=, and >=?

Yes.

Is it possible/legal to have variables of type Unit / void?

No.

Do we have to support NULL? To what types of variable is it legal to assign a NULL?

CSE 113 probably does have explicit uses of null, mainly in comparisons.

Do we need separate intermediate code instructions for floating point and for integer operations?

Good question. What do you think?

• code to test conditions, and
• the use of goto instructions and
• labels to route execution to the correct code.

• The basic blocks are nodes in a control flow graph.
• goto instructions, as well as falling through from one basic block to another, are edges that connect basic blocks.

Depending on your source language's semantic rules for things like "short-circuit" evaluation for boolean operators, the operators like || and && might be similar to + and * (non-short-circuit) or they might be more like if-then code.

A general technique for implementing control flow code:

• add new attributes to tree nodes to hold labels that denote the possible targets of jumps.
• The labels in question are sort of analogous to FIRST and FOLLOW
• for any given list of instructions corresponding to a given tree node, add a .first attribute to the tree to hold the label for the beginning of the list, and a .follow attribute to hold the label for the next instruction that comes after the list of instructions.
• The .first attribute can be easily synthesized.
• The .follow attribute must be inherited from a sibling.

Mailbag

I am encountering a very interesting segfault when testing my hw. as seen in pic below.

This bug only comes up with a 'char' declaration, otherwise it runs fine on an int or String of the same name. This 'char' decl for some reason parses fine by yydebug, however when populating the sym table, it is interpreted as a ClassDecl (pic2).

I have looked at my grammar and cannot figure out why this would happen or how I can figure out why this is happening. Any tips or ideas on what I might be missing here?

Wow, thank you for this excellent question, and for the wonderful screenshots. The first screenshot tells us we are 12 levels deep in recursion at the TOD. But it doesn't give us the line numbers at all these levels. Are you compiling with -g on your gcc -c lines? You should be. The second picture leaves us guessing. A wrong internal tree node could be the result of building the tree structure/shape wrong, or putting the wrong information into the tree. We might start by looking at your suspicious .y file, but when you seek help by e-mail or appointment, I will probably need to see your flex file and/or the code that prints the symbol tables, in order to find this bug.

If-Then and If-Then-Else

Production	Semantic Rules
IfThenStmt :       if '(' Expr ')' Stmt	Expr.onTrue = Stmt.first Expr.onFalse = IfThenStmt.follow Stmt.follow = IfThenStmt.follow IfThenStmt.icode = (Expr.icode != null) ? Expr.icode                                                     : gen(BIF, Expr.onFalse, Expr.addr, con:0) IfThenStmt.icode |||:= gen(LABEL, Expr.onTrue) ||| Stmt.icode
IfThenElseStmt :       if '(' Expr ')' Stmt1 else Stmt2	Expr.onTrue = Stmt1.first Expr.onFalse = Stmt2.first Stmt1.follow = IfThenElseStmt.follow; Stmt2.follow = IfThenElseStmt.follow; IfThenElseStmt.icode = (Expr.icode != null) ? Expr.icode                                                     : gen(BIF, Expr.onFalse, Expr.addr, con:0) IfThenElseStmt.icode |||:= gen(LABEL, Expr.onTrue) ||| Stmt1.icode |||       gen(GOTO, IfThenElseStmt.follow) ||| gen(LABEL, Expr.onFalse) ||| Stmt2.icode

Generating Code for Conditions

• Consider the inherited attributes such as E.onTrue and E.onFalse.
• These are the destination instruction labels that say where to go if the condition is true, or false, respectively.
• The parent statement creates or inherits (from its parent or sibling) these destination goto labels
• They have to get passed down into boolean subexpressions
• Options for inherited attributes:
  • Allocate them ahead of time and pass them down in an extra tree-traversal before code generation, OR
  • Go back into E.icode afterwards and fill them in after the information becomes known! For that you will have to remember/store/track spots where such labels are missing. This implies more attributes and/or auxiliary structures.

Alternative Models of Control Flow

• Pascal and similar languages treat them similar to arithmetic operators.
  • allocate a temporary variable to store E.addr at each tree node where a new boolean value is computed.
  • compute a true or a false result into an E.addr.
  • The .icode of the statement using the result inserts, after the E.icode, a gen(BNIF, E.addr, E.false) to skip over a then-part for an if with no else, or
    gen(BIF, E.addr, E.true) ||| gen(GOTO, E.false) for an if with an else.
• C (and C++, and many others) specify "short-circuit" evaluation in which operands are not evaluated once the answer to the boolean result is known.
  • add extra attributes to keep track of code locations that are targets of jumps. The attributes store link lists of those instructions that are targets to backpatch once a destination label is known. Boolean expressions results evaluate to jump instructions and program counter values (where you get to in the code implies what the boolean expression results were).
  • at each level you have a .true target and a .false target.
  • naive version may have many unnecessary goto instructions and extra labels. This is OK in CSE 423. Optimizer can simplify.
• Some languages have both short circuit and non-short-circuit boolean operators! (Can you name a language that has both?)
• Icon and Unicon define the machine instruction semantics to implicitly route control from expression failure to the appropriate location! In order to do this one might
  • mark boundaries of code via "mark" and "unmark" sandwiches
  • these define "statement" boundaries as well as "conditional expr" boundaries. Arguably they might correlate to basic blocks.
  • within each mark-unmark, failure triggers an implicit goto
  • system maintains a stack of these marked "expression frames"

Grade Jitters?

Canvas is certainly not a viable measuring stick for your grade. Your measuring sticks are your midterm grade, graded HWs, whether you are making regular progress, and whether you are seeking help.

If you are struggling in this class, that is normal and to a certain degree, healthy.

The goal is for everyone to get xp and levels out of the course proportional to what you put in. Even the smartest persons in the class.

Get as far as you can by end of semester.

Mailbag

Can we assume all types are 8 bytes?

We can almost assume that. Types that are not 8 bytes can be an 8 byte pointer to something that is not 8 bytes.

When calling gen() for an ASN instruction, can I simply leave the third source addr empty?

You can pass it as an {R_NOTUSED, 0} address or something similar of your own advising. If, based on the opcode, it is never read, it will not matter what you put in that field.

How should we use ASN with array initializations?

Options include

1. Initialize array elements one at a time, as if they were assignments.
2. Creating a new intermediate code instruction, named AASN for example.
3. Defining an internal runtime system function for array initialization, and calling it when neeeded

For these, or any other options, there is also the issue of how the elements in the initialer are stored in the code. Option #1 might store them in immediate mode operands of multiple instructions. Options #2 or #3 might involve writing them out in a "constant region" similar to the "string region" postulated for storing string constants.

For intermediate code generation, I sorta understand that we are supposed to get labels added at key places in our tree as semantic properties for the next step. What I do not understand is what I will be doing in more detail. What should this be looking like.

Tree traversals that compute more attributes. A lot of small do-able pieces of work that will be combined. Steps to intermediate code generation include:

• Before you generate any code, implement and test the building blocks:
  • Define structs for address (region and offset) and for three-address intermediate code instructions.
  • Build a linked list data type for lists of three-address instructions.
  • Write a gen() function to create a linked list of length one, containing a single 3-address instruction
  • Write a copycode(L) function to copy a linked list.
  • Write a concatenate function concat(L1, L2) that builds a new linked list that consists of a copy of L1 followed by L2.
  • Write a printcode(L) function that prints a list of code readably.
  • Build a counter and a genlabel() function for generating labels
  • Extend your symbol tables so that they track sizes of variables inserted into them, and can report how many bytes the whole table will need.
• straight line code
  • Assign a .addr for all treenodes that represent anything with a value
  • Allocate temporary variables for all operators/calls.
  • Probably need to extend your tree printer so you can see/debug these.
  • Generate linked lists of intermediate code instructions for straight line expressions and statements, with no control flow.
  • Generate header/ender pseudoinstructions for procedure main().
• control flow
  • Allocate LABEL #'s to all treenodes that can be targets of goto instructions
  • Push LABEL #'s around to where they are needed, through inherited and/or synthesized attributes via one or more tree traversals
  • Need to extend your tree printer so you can see/debug these.
  • Generate linked lists of intermediate code for ifs and loops.
  • Generate linked lists of intermediate code for call (no params) and void return
  • Generate linked lists of intermediate code for return values, and parameters.

Traditionally, % only works on integer arguments. Do I need to ensure that, or do I need to worry about modulus for other types?

% requires integer arguments. You need to type check it.

How do I do float constants?

Most CPUs do not have float immediate instructions. We need an actual constant region; we need that for string constants too. Depending on your target code, you might create a region for each constant type, perhaps R_FLOAT and R_STRING, with byte offsets starting at word boundaries. With other targets such as Unicon ucode, you probably should just do one combined region, perhaps R_RODATA.

Boolean Expression Example

a<b || c<d && e<f

• The left uses the intermediate code presented earlier.
• The middle uses some new three address instructions. Is it cheating?
• Both left and middle end with E.addr in t₅ which must then be tested/used in some conditional branch to do control flow.
• The right side uses short-circuits as per C/C++

conditional branches	relop instructions	short circuit
100: if a<b goto 103 t1 = 0 goto 104 103: t1 = 1 104: if c<d goto 107 t2 = 0 goto 108 107: t2 = 1 108: if e<f goto 111 t3 = 0 goto 112 111: t3 = 1 112: t4 = t2 AND t3 t5 = t1 OR t4	t1 := a LT b t2 := c LT d t3 := e LT f t4 := t2 AND t3 t5 := t1 OR t4	if a<b goto E.true if c<d goto L1 goto E.false L1: if e<f goto E.true goto E.false

Short circuit semantics is short, fast, and can be used to play parlor tricks.

Mailbag

Someone told me one time that a language is only useful if it supports interfacing with C libraries, as most of the useful libraries in the world are written in C; If it is unable to interface with these libraries (such as stdio.h in this instance), programmers will seldom find it useful unless it has as robust a standard library of its own as the C standard library. What do you think? Is this a naïve solution that has a better alternative?

Wow, what a C-supremacist worldview. This is largely true when writing software for well-known and established domains. It is a less useful argument for those in the business of exploring new application domains. Python is popular in large part because its C-calling interface was quite good. Java had to go to considerable effort to make C calling not too awful, and then over time Java has improved its performance and developed its own libraries to the point where it is at least somewhat competitive in some domains. Kotlin is standing on the shoulders of the giant called Java, which is standing on the shoulders of the giant called C. Fine.

For k0, we are not contemplating whether k0 source code should be able to call C code, but we can get a lot of mileage out of making our generated code be able to call C code to do the work for us in our runtime system.

Arrays

• This section is a response to questions about how to implement k0 arrays. It will generalize some to compare with other languages.
• Arrays in k0 are intended to be a restricted subset of Kotlin, to the point where you could do them like C arrays.
• Arrays in Kotlin are probably intended to be "cleaned up" from how Java does it. Java has built-in arrays that are not normal objects, and then various array-like classes that are not as nice as arrays in some ways.

Example Code

fun main() {
  var i : Int
  var a : Array<Int> = Array<Int>(8) {0}
  a[5] = 5
  i = a[5]
  println("i is $i!!!")
}

Array Creation

In the preceding example, allocating 64 bytes in the local region on the stack might be as simple as inserting a symbol table entry for local variable "a", specifying its address loc:8 (offset 8, after variable i) and size (64) in the symbol table entry. The local region total size is larger due to temporary variables. If you were doing heap-allocation, the actual address of the array is not known until runtime, what is allocated for variable a is 8 bytes for a pointer.

C arrays	array "Objects"
proc main,0,104 // 8 + 64 + 8 + 8 + 8 + 8 ... end	proc main,0,48 // 8 + 8 + 8 + 8 + 8 + 8 PARAM const:64 CALL malloc,1,loc:8 ... end

Array Initialization

• initial values are specified in the one format of constructor syntax that we decided to support.
• You can treat this as a sequence of assignments.

In the heap-allocated array, the SCON instruction stores/copies through a pointer. The array arithmetic needed foreshadows what we will need for the subscript operator, computing the address at an offset from a base pointer known only at runtime.

C arrays

array "Objects"

proc main,0,120 // 8 + 64 + 8 + 8 + 8 + 8 + ... ASN loc:8,const:0 ASN loc:16,const:0 ASN loc:24const:0 ASN loc:32,const:0 ASN loc:40,const:0 ASN loc:48,const:0 ASN loc:56,const:0 ASN loc:64,const:0 end

proc main,0,48 // 8 + 8 + 8 + 8 + 8 + 8 PARAM const:64 CALL malloc,1,loc:8 ASN loc:16, loc:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 ADD loc:16, const:8 SCON loc:16, const:0 end

Assigning to a[i]

proc main,0,120		// 8 + 64 + 8 + 8 + 8 + 8
	...
	ADDR	loc:72, loc:8			// t1 = &(a[0])
	MUL	loc:80, const:5, const:8	// t2 = 40
	ADD	loc:88, loc:72, loc:80		// t3 = t1 + t2
	SCON	loc:88, const:5			// *t3 = 5
	ASN	loc:96, loc:8			// t4 = &(a[0])
	MUL	loc:104, const:5, const:8	// t5 = 40
	ADD	loc:112, loc:72, loc:80		// t6 = t4 + t5
	LCON	loc:0, loc:112			// i = *t6
	end

proc main,0,120		// 8 + 8 + 8 + 8 + 8 + 8 + ...
	PARAM  const:64
	CALL   malloc,1,loc:8
	...
	ASN	loc:16, loc:8			// t1 = &(a[0])
	MUL	loc:24, const:5, const:8	// t2 = 40
	ADD	loc:32, loc:16, loc:24		// t3 = t1 + t2
	SCON	loc:32, const:5			// *t3 = 5
	ASN	loc:40, loc:8			// t4 = &(a[0])
	MUL	loc:48, const:5, const:8	// t5 = 40
	ADD	loc:56, loc:40, loc:48		// t6 = t4 + t5
	LCON	loc:0, loc:56			// i = *t6

	end

Strings

• C says strings are just a pointer to the actual string data, which has to have an extra NUL byte at the end.
• Pascal defined strings as a pointer that points at memory, where the first byte (or maybe the first word) was a length, followed by the actual string content.
• Unicon defines strings as a struct with (length,pointer) up front, and the data pointed at is raw; no length, no NUL byte, etc.

• C treats strings as arrays whose element size is 1.
• Allocate/initialize as per arrays
• String literals require allocation in a global/static region
• Kotlin strings are immutable, right? No a[i] = 'x'. What about x=a[i]?
• Is every Kotlin string literal a formatted/constructed string?

k0 string concatenation

String s3 = s1 + s2

   // ... t1 = strlen(s1)
   // ... t2 = strlen(s2)
   // ... s3 = malloc(t1+t2)
   // ... strcpy(s3,s1)
   PARAM s2
   PARAM s3
   CALL  strcat, 2, s3

Kotlin string literals with embedded variables, e.g. $x

• If you implemented string literals C-style with one big regular expression, now you get to go through the string looking for $ signs.
• If you implemented string literals Kotlin-style, you have a syntax tree that you traverse to generate these string concatenations.
• You might edit your syntax tree to include an explicit string conversion tree node, or make the conversion function call part of the generated code for the internal nodes that implement the production rules for lineStringExpression, etc.

... Back to Control Flow / Boolean Eval Topics

Do we know enough now to write the code generation rules for booleans?

Production	Semantic Rules
AndExpr :       AndExpr1 && EqExpr	EqExpr.first = genlabel(); AndExpr1.onTrue = EqExpr.first; AndExpr1.onFalse = AndExpr.onFalse; EqExpr.onTrue = AndExpr.onTrue; EqExpr.onFalse = AndExpr.onFalse; AndExpr.icode = AndExpr1.icode ||| gen(LABEL, EqExpr.first) ||| EqExpr.icode;
OrExpr :       OrExpr1 || AndExpr	AndExpr.first = genlabel(); OrExpr1.onTrue = OrExpr.onTrue; OrExpr1.onFalse = AndExpr.first; AndExpr.onTrue = OrExpr.onTrue; AndExpr.onFalse = OrExpr.onFalse; OrExpr.icode = OrExpr1.icode ||| gen(LABEL, AndExpr.first) ||| AndExpr.icode;
UnaryExpr : ! UnaryExpr1	UnaryExpr1.onTrue = UnaryExpr.onFalse UnaryExpr1.onFalse = UnaryExpr.onTrue UnaryExpr.icode = UnaryExpr1.icode

Hints: parent fill's out childrens' inherited attributes...

Intermediate Code for Relational Operators

• intermediate code can have either relational operators in conditional branch statements, or relationals as standalone instructions that compute a boolean result.
• operands to relationals must be valid (numeric?) type.
• inherited attributes get used here, not pushed down further to the operands
• You could analyze whether to generate gotos to E.true/E.false or instead to generate values that compute a boolean result. Maybe surrounding code only sets your E.true/E.false to non-NULL if result should be expressed as gotos?
• You might instead compute a result AND generate gotos. The gotos might get optimized out if they are not needed.

C syntax	gotos	bool value	both ?
E-> E1 < E2	E.icode = E1.icode || E2.icode ||       gen(BLT, E1.addr, E2.addr, E.true) ||       gen(GOTO, E.false)	E.addr = genlocal() E.icode = E1.icode || E2.icode ||       gen(LT, E.addr, E1.addr, E2.addr)	E.addr = genlocal() E.icode = E1.icode || E2.icode ||       gen(LT, E.addr, E1.addr, E2.addr) ||       gen(BIF, E.addr, E.true) ||       gen(GOTO, E.false)

Intermediate Code for Loops

While Loops

Finishing touches: what attributes and/or labels does this plan need in order to support break and continue statements?

For Loops

Production	Semantic Rules
WhileStmt : while '(' Expr ')' Stmt	Expr.onTrue = genlabel(); Expr.first = genlabel(); Expr.false = WhileStmt.follow; Stmt.follow = Expr.first; WhileStmt.icode = gen(LABEL, Expr.first) |||    Expr.icode ||| gen(LABEL, Expr.true) |||    Stmt.icode ||| gen(GOTO, Expr.first)
ForStmt : for( ForInit; Expr; ForUpdate )     Stmt a.k.a. ForInit; while (Expr) {     Stmt     ForUpdate }	Expr.true = genlabel(); Expr.first = genlabel(); Expr.false = S.follow; Stmt.follow = ForUpdate.first; S.icode = ForInit.icode |||    gen(LABEL, Expr.first) |||    Expr.icode ||| gen(LABEL, Expr.true) |||    Stmt.icode |||    ForUpdate.icode |||    gen(GOTO, Expr.first)

Again: what attributes and/or labels does this plan need in order to support break and continue statements?

lecture #24 began here

Code generation for Switch Statements

switch(e) of {
   case v1:
      S1;
   case v2:
      S2;
   ...
   case vn-1:
      Sn-1;
   default:
      Sn;
}

	code for e, storing result in temp var t
	goto Test
L1:
	code for S1
L2:
	code for S2
	...
Ln-1:
	code for Sn-1
Ln:
	code for Sn
	goto Next
Test:
	if t=v1 goto L1
	if t=v2 goto L2
	...
	if t=vn-1 goto Ln-1
	goto Ln
Next:

Now, why would this code generation template for switches put the Tests last?

This three address code is not very fast if you translate it naively. In final code, on many CPUs you can avoid the long sequence of conditional branch instructions and go to an address stored in array of addresses.

Name Mangling

• names in source code get mapped onto names in target code.
• global names may conflict with runtime library names
• Example: suppose you are linking to the C runtime library, but in your source code the user declares a function named printf, or abs, or ...any of 1,000 other C library function names

Intermediate Code Generation Example

C	Kotlin
void print(int i); void main() { int i; i = 0; while (i < 20) i = i * i + 1; print(i); }	fun main() { var i : Int = 0; while (i < 20) { i = i * i + 1; } println("$i"); }

• Everybody should be (by now) able to draw a syntax tree that corresponds to code.
• --> you should practice doing this by hand, for the final.
• Such drawings are for hand-simulation and understanding purposes, and details, like the spelling of the non-terminal names, might not be so important.
• The C version of this example should give a syntax tree similar to the one shown in black.
• The red part are the symbol tables:
  • The global symbol table has a built-in (print) and a global symbol (main)
  • The local symbol table has a local variable (i)
  • For each symbol there is a symbol table entry (STE) that contains a type field (pointer to type info) and a place (or addr), which is a region:offset.

For intermediate code, we need to fatten up the syntax tree quite a bit. Each tree node may hold:

• type pointer
• place (or addr)
• icode (linked list)

We can do this all day long. Maybe we will. The image file here is named semtree.png. Lets see how much we can mark it up with semantic and codegen info.

Below is a fragment with

• .place fields filled in, either from symbol table lookups or constant region references.
• a first instruction added, namely the assignment instruction for i=0

We proceeded with a discussion of how to build the .icode fields. One thing that got said was: .icode fields get built via a post-order traversal (synthetised attribute) but .true, .false etc. are inherited and may require a previous pass through the tree, or a pre-order traversal. If you are trying to do both in one pass it might look like the following.

Another Code Generation Function

void codegen(struct tree *t)
{
   // pre-order stuff, e.g. label generation
   switch (t->prodrule) {
         ...
      case ITERATION_STMT: // inherited attributes for while loop
         // push an inherited attribute to child before visiting them
         t->child[2]->true = genlabel();
         break;
	 ...
      }

   // visit children
   for(i=0; i < t->nkids; i++) codegen(t->child[0]);

   // post-order stuff, e.g. code generation
   switch (t->prodrule) {
         ...
      case CONDEXPR_2: // synthesized attribs for CondExpr: Expr < Expr
         t->code = concat(
	        t->child[0]->code,
	        t->child[2]->code,
		gen(BLT, t->child[0]->place, t->child[2]->place, t->true),
		gen(GOTO, t->false)
		);
	 break;
      case ITERATION_STMT: // synthesized attributes for while loop
	 t->code = concat(
                    gen(LABEL, t->child[2]->first),
		    t->child[2]->code,
                    gen(LABEL, t->child[2]->true),
   		    t->child[4]->code,
		    gen(GOTO, t->child[2]->first));
	 break;
}

The actual C representation of addresses dest, src1, and src2 is a

region offset

pair, so the picture of this intermediate code instruction really looks something like this:

gotos	bool value
opcode dest src1 src2 BLT local i.offset const 20 code (E.true's label#)	opcode dest src1 src2 LT local t0.offset local i.offset const 20

Regions are expressed with a simple integer encoding like: global=1, local=2, const=3. Note that address values in all regions are offsets from the start of the region, except for region "const", which stores the actual value of a single integer as its offset.

opcode	dest	src1	src2
MUL	local t1.offset	local i.offset	local i.offset

The rest of class was spent elaborating on the linked list of instructions for the preceding example.

.first and .follow for StmtList

• As mentioned previously, attributes .first and .follow are an alternative to the "label sandwich" model of code generation
• .first holds a label denoting the first instruction to execute when control reaches a given subtree within a function body.
• .first is a synthesized attribute. Note that unlike FIRST(a), there is a unique and deterministic label. But worry-warts might want to ask if a given subtree can have epsilon code.
• .follow holds a label denoting the instruction that comes after a given subtree within a function body.
• .follow would be an inherited attribute, obtained from some ancestor's sibling.

Suppose you have grammar rules

FuncBody : '{' StatementList '}' ;
StatementList : StatementList Statement ;
StatementList :  ;

FuncBody : '{' StatementList '}'

StatementList.follow = genlabel();
FuncBody.icode = StatementList.icode ||
                 gen(LABEL,StatementList.follow) ||
		 gen(RETURN)

StatementList1: StatementList2 Statement

StatementList2.follow = Statement.first;
Statement.follow = StatementList1.follow
StatementList1.icode = StatementList2.icode || Statement.icode

StatementList : ;

/* no need for a StatementList.follow */
StatementList.first = genlabel()
StatementList.icode = gen(LABEL, StatementList.first) || gen(NOOP)

Final Grades and Projects; End-of-semester considerations

• The NMT final exam schedule says our designated final exam period is Tuesday May 13, 6-9pm, in Cramer 239
• Final grades are due May 19 5pm
• Your final projects have to be completed early enough that I can finish grading them BEFORE May 13. So: final project (i.e. HW#7) is due May 8 5pm, end of instruction.
• Resubmission and regrading capabilities for HW7 will be reduced/limited. Resubmission after May 8 is by invitation only.
• You may optionally demo your work for me individually or as teams May 8-12 in order to ensure appropriate credit is given. Also:
  • You should thoroughly test that your work unpacks, builds and runs and passes your tests prior to submission
  • I will give submissions a preliminary test and try to identify flagrant issues by May 13. Resubmits will be limited to trivial fixes necessary to see/grade your work, turned in by May 16
  • You can include tests, and a "make test" command that demonstrates as much as you got working: semantic analysis, code generation, execution...

HW#7

More Intermediate Code Generation Examples

Zero operators.

if (x) S

if x != 0 goto L1
goto L2
label L1
...code for S
label L2

if x == 0 goto L1
...code for S
label L1

One relational operator.

if (a < b) S

if a >= b goto L1
...code for S
label L1

if (a < b  &&  c > d) S

if (a < b)
   if (c > d)
      ...code for S

if a >= b goto L1
if c <= d goto L2
...code for S
label L2
label L1

Beware the following. A lazy code generator doing short-circuits might be tempted to say that

if (a < b  ||  c > d) S

if (a < b) ...code for S
if (c > d) ...code for S

if a < b goto L1
if c > d goto L2
goto L3
label L2
label L1
...code for S
label L3

Object-Oriented Changes to Above Examples

if (x) S

if (x != NULL) S

tempvar := x.as_boolean()
if (tempvar) S

Old Mailbag

Do we need to specify the RET instruction at the end of a function or does the END instruction imply that the function returns?

I think of END in three-address code as a non-instruction (pseudo instruction) that marks the end of a procedure. So you should have a RET in front of it. But really, you are allowed to define END's semantics to also do a RET; you could call it REND.

If we have nothing to return, can we just say RET with no parameter or must the parameter x always be there, i.e. RET x?

I would accept a RET with no operand. You are allowed to define new opcodes in intermediate code. Native assemblers often have several variants of a given instruction -- same mnemonic, different opcodes for a related family of instructions. But in that case our final codegen would have to have a way to tell which version of RET is in use. Either a way of marking unused addresses, or a separate opcode such as RET0.

Can you give me an example of when to use the GLOBAL and LOCAL declaration instructions?

These are pseudo-instructions, not instructions. Globals are listed as required; at the minimum, if your program has any global variables you must have at least one GLOBAL declaration to give the size of (the sum of) the global variables. You can do one big GLOBAL and reference variables as offsets, or you can declare many GLOBAL regions, effectively defining one named region for each variable and therefore rendering the offsets moot.

A LOCAL pseudo-instruction is listed as optional and advisory; think of it as debugging symbol information, or as an assist to the reader of your generated assembler source.

Code Generation for Arrays

So far, we have only said, if we passed an array as a parameter we'd have to pass its address. 3-address instructions have an "implicit dereferencing semantics" which say all addresses' values are fetched / stored by default. So when you say t1 := x + y, t1 gets values at addresses x and y, not the addresses. Once we recognize arrays are basically a pointer type, we need 3-address instructions to deal with pointers.

now, what about arrays? reading an array value: x = a[i]. Draw the picture. Consider the machine uses byte-addressing, not word-addressing. Unless you are an array of char, you need to multiply the subscript index by the size of each array element...

t0 := addr a
t1 := i * 8
t2 := plus t0 t1
t3 := deref t2
x  := t3

There are similar object-oriented adaptation issues for arrays: a[i] might not be a simple array reference, it might be a call to a method, as in

x := a.index(i)

x := a field i

Let it be noted for the record that the lecture notes have a lot of additional material on intermediate code generation, and we can spend as much time on under-described aspects and Q&A as we need, but otherwise, is it time to

Warp to Final Code Gen?

Supplemental Comments on Code Generation for Arrays

expr [ expr ]

With tables, a.k.a. dictionaries, the main wrinkle is: what to do if the key is not in the table? The behavior might be different for reading a value or writing a value:

syntax	behavior
t[x] := y	if key is not in table, insert it
y := t[x]	if key is not in table, one of: produce a default value raise an exception ??

Code Generation for Maps (Dictionaries, Tables)

map construction: make(map[string]int)

Needs to allocate one hash table (array of buckets) from the heap. For a compiler, keys were always string. In a programming language, keys may be more diverse: they can be string, or int, or object... Maybe the generated code should emit different opcodes/functions depending on key type, or at very least an argument that specifies this. When keys can be arbitrary type, it adds complexity that might get pushed off to runtime.

Via 3-address Instructions	Via function call
MAPCREATE dest	CALL mapcreate,?,?

insert: x[s] = s2

Needs to compute an address into which to store s2.

Via 3-address Instructions	Via Function call
MAPINSERT map,key,val	PARAM map PARAM key CALL mapinsert,?,val

lookup: s = x[s2]

Via 3-address Instructions	Via Function call
MAPLOOKUP tmp,map,key ASN s, tmp	PARAM map PARAM key CALL maplookup,,tmp ASN s, tmp

Debugging Miscellany

makefile .h dependencies!

if you do not list makefile dependencies for important .h files, you may get coredumps!

traversing multiple times by accident?

at least in my version, I found it easy to accidentally re-traverse portions of the tree. this usually had a bad effect.

bad grammar?

our sample grammar was adapted from good sources, but don't assume its impossible that it could have a flaw or that you might have messed it up.

bad tree?

its entirely possible to build a tree and forget one of your children

A few observations from Dr. D

Dr. Debray's Intermediate Code Generation notes.

You can consider these a recommended supplemental reading material, and we can scan through them to look and see if they add any wrinkles to our prior discussion.

A Bit of Skeletal Assistance with Three Address Code

• tac.h
• tac.c
• codegen.c

Example of Generating .first and .follow Attributes

• probably only the statement level nodes.
• they give way to .true and .false within (conditional) expressions
• maybe only certain statements, like loops, and statements that have a preceding statement that can jump to them instead of just falling through
• ok to just blindly brute force these, as many as you want
• but it would be good to not write them if they aren't used

Call gen_firsts(root) followed by gen_follows(root) before generating code.

.first

.follow

What? synthesized attribute a label (#) to precede all executable instructions for a given chunk of code Why? loops may go back to their .first. preceding statements' .follow may be inherited from your .first Sample code: void gen_firsts(nodeptr n) { if (n == NULL) return; for(i=0; inkids; i++) gen_firsts(n->kids[i]); switch (n->prodrule) { case LABELED_STATEMENT: n->first = /* ... just use the explicit label */ break; case EXPRESSION_STATEMENT: case COMPOUND_STATEMENT: case SELECTION_STATEMENT: case ITERATION_STATEMENT: case JUMP_STATEMENT: case DECLARATION_STATEMENT: case TRY_BLOCK: n->first = genlabel(); break; default: } }

Why? if we skip a then-part or do a then-part and have to skip an else-part if we have to break out of a loop What? inherited attribute a label to go to whatever comes after the executable instructions for a given chunk of code. Could try to dodge, by blindly generating labels at the end of each statement ("label sandwich" approach). void gen_follows(nodeptr n) { if (n == NULL) return; switch (n-<prodrule) { case STATEMENT_SEQ + 2: /* statement_seq : statement_seq statement */ n->child[0]->follow = n->child[1]->first; n->child[1]->follow = n->follow; break; case COMPOUND_STATEMENT + 1: /* compstmt : '{' statement_seq_opt '}' */ if (n->child[1] != NULL) n->child[1]->follow = n->follow; break; case FUNCTION_DEFINITION + 1: /* funcdef : declarator ctor_init_opt body */ n->child[2]->follow = genlabel(); /* .icode must have this label and a return at the end! */ break; /* ... other cases? ... */ default: } for(i=0; i<n->nkids; i++) gen_follows(n->kids[i]); }

Labels for break and continue Statements

• As shown above, label generation of .first and .follow isn't difficult
• propagating that information way down into the subtrees where it is needed, across many nodes where it is not needed, and not messing up on nested loops, can be a challenge.
• Option #1: add inherited attributes .loopfirst and .loopfollow to the treenodes. Use them to pass a loop's .first and .follow down into the "break" and "continue" statements that need them:
• Option #2: write a specialized tree traversal whose first parameter is the tree (node) we are traversing, and whose second and third parameters are pointers to the label (struct address) of the nearest enclosing loop. It would be called as do_break(root, NULL, NULL);
• Option #3: implement parent pointers within all the nodes of your tree, and walk up the parents until you find a loop node.

Sample code for Option #2 is given below. Implied by the BREAK case is the notion that the .addr field for this node type will hold the label that is the target of its GOTO. How would you generalize it to handle other loop types, and the continue statement? There may be LOTS of different production rules for which you do something interesting, so you may add a lot of cases to this switch statement.

void do_break(nodeptr n, address *loopfirst, address *loopfollow)
{
   switch (n->prodrule) {
   case BREAK:
      if (loopfollow != NULL)
	 n->place = *loopfollow;
      else semanticerror("break with no enclosing loop", n);
      break;
   case WHILE_LOOP:
      loopfirst = &(n->first);
      loopfollow = &(n->follow);
      break;
      ...
      }

   for(i=0; i<n->nkids; i++)
      do_break(nodeptr n, loopfirst, loopfollow);
}

• Systematic traversal to populate explicit symbol table
• Systematic traversal to assign .addr (populate implicit symbols)
• Systematic traversal to assign .first/.follow/.true/.false
• Finally, build linked list of TAC instructions (.icode)

• manage a slightly larger ("interesting") example
• with syntax and semantic analysis already done
• for which we can go more blow by blow through the intermediate code generation.

• We will look at a C example. Compare this with the corresponding VGo example. Qualitatively, what is the difference?
• We will just generate the body for function main(). See if you can generate TAC code for the other functions, and ask questions.
• we are again trying hard to use a syntax tree, not a parse tree, i.e. generally, no internal nodes with only one child.
• We omit from the tree, tokens that are simply punctuation and reserved words needed for syntax.
• Also as stated previously, in real life you might not want to remove every unary tree node, some of them have associated semantics or code to be generated, or may help provide needed context in your tree traversal.

void printf(char *, int);
int fib(int i);
int readline(char a[]);
int atoi(char a[]);
int main() {
   char s[64];
   int i;
   while (readline(s)!=0 && s[0]!='\004') {
      i = atoi(s);
      if (i <= 0) break;
      printf("%d\n", fib(i));
      }
}

func fib(int i) int {
   if n <= 1 { return 1 }
   else { return fib(n-1) + fib(n-2) }
}
func ctoi(string s) int {
   if s == "0" {return 0}
   else if s == "1" {return 1}
   else if s == "2" {return 2}
   else if s == "3" {return 3}
   else if s == "4" {return 4}
   else if s == "5" {return 5}
   else if s == "6" {return 6}
   else if s == "7" {return 7}
   else if s == "8" {return 8}
   else if s == "9" {return 9}
}
func atoi(string s) int {
  var i int
  for ... /* while (#s > 0) */ {
     //?? string c = s[1]
     //?? i = i * 10 + ctoi(c)
     //?? s = s[2:0]
      }
   return i
}
func itoa(i int) string {
   var s string
   var div, rem int
   if i == 0 { return "0" }
   else if i == 1 { return "1" }
   else if i == 2 { return "2" }
   else if i == 3 { return "3" }
   else if i == 4 { return "4" }
   else if i == 5 { return "5" }
   else if i == 6 { return "6" }
   else if i == 7 { return "7" }
   else if i == 8 { return "8" }
   else if i == 9 { return "9" }
   else if i < 0 { return "-" + itoa(-i) }
   else {
     div = i / 10
     rem = i % 10
     return itoa(div) + itoa(rem)
   }
}
func main() {
  var s string
  var i int
  for ... {
      i = atoi(s)
      if i <= 0 { break }
      fmt.Println(itoa(fib(i)))
      }
}

string ftoa(double d)
{
   if (d == 0.0) {
      return "0.0"
   }
   else if (d < 0.0) {
      return "-real"
      }
   else {
     return "real"
   }
}

Using cgram.y nonterminal names, let's focus on code generation for the main procedure.

TAC-or-die: the First-level

The first tree node that TAC code hits in its bottom up traversal is IDENTreadline (no .icode), followed by IDENTs (no .icode). Above the IDENTs, argument_expression_list is one of those non-terminals-with-only-one-child that matters and needs to be in the tree: each time it churns out an actual parameter, TAC code generates a PARAM instruction to copy the value of the parameter into the parameter region. PARAM indicates an 8-byte (word) parameter; you might also want to define PARAM4, PARAM2, PARAM1 (etc.) instructions. Q: why is the ADDR instruction here? ADDR loc:72,loc:0 PARAM loc:72 The postfix_expr is a function call, whose TAC codegen rule should say: allocate a temporary variable t0 (or as we called it: LOC:80) for the return value, and generate a CALL instruction CALL readline,1,loc:80 The next leaf (ICON0) has no .icode, which brings code generation up to the != operator. Here the code depends on the .true (L5) and .false (L2) labels. The TAC code generated is BNE loc:80,const:0,lab:5 GOTO lab:2 After that, the postfix traversal works over to IDENTs (no .icode), ICON0 (no .icode), and up to the postfix expression for the subscript operator for s[0]. It needs to generate .icode that will place into a temporary variable (its .addr, loc:88) what s[0] is. The basic expression for a[i] is baseaddr + index * sizeof(element). sizeof(element) is 1 in this case, so we can just add baseaddr + index. And index is 0 in this case, so an optimizer would make it all go away. But we aren't optimizing by default, we are trying to solve the general case. Calling temp = genlocal() we get a new location (loc:96) to store index * sizeof(element) MUL loc:96,const:0,const:1 We want to then add that to the base address, but ADD loc:104,loc:0,loc:96 would add the (word) contents of s[0-7]. Instead, we need ADDR loc:104,loc:0 ADD loc:104,loc:104,loc:96 After all this, loc:104 contains...the address we want to use. DEREF1 loc:112,loc:104 fetches (into word at loc:112) the value of s[0]. A label L5 needs to be prefixed into the front of this: LABEL lab:5

Note: an alternative to ADDR would be to define opcodes for reading and writing arrays. For example

	SUBSC1   dest,base,index

CCON_^D has no .icode, but the != operator has to generate code to jump to its .true (L4) or .false (L2) as in the previous case. Question: do we need to have a separate TAC instruction for char compares, or sign-extend these operands, or what? I vote: separate opcode for byte operations. BNEC is a "branch if not-equal characters" instruction.

	BNEC loc:112,const:4,lab:4
	GOTO lab:2

	ADDR   loc:72,loc:0
	PARAM  loc:72
	CALL   readline,1,loc:80
	BNE    loc:80,const:0,lab:5
	GOTO   lab:2
	LABEL  lab:5
	MUL    loc:96,const:0,const:1
	ADDR   loc:104,loc:0
	ADD    loc:104,loc:104,loc:96
	DEREF  loc:112,loc:104
	BNEC   loc:112,const:4,lab:4
	GOTO   lab:2

IDENT_i has no .icode. The code for atoi(s) looks almost identical to that for readline(s). The assignment to i tacks on one more instruction:

	ADDR   loc:120,loc:0
	PARAM  loc:120
	CALL   atoi,1,loc:128
	ASN    loc:64,loc:128

	BLE    loc:64,const:0,lab:6
	GOTO   lab:3

	LABEL  lab:6
	GOTO   ??

Dr. J has Doubts About 64-bit Ints

• Last lecture I pointed out that I had edited the example we are working right now, to account for ints being 64-bit instead of 32-bit.
• It is reasonable to ask whether this is a Bad Idea.
• Pros: if (almost) everything is 64-bits, does that keep things simpler?
• Cons: if our ints are not the same size as g++ ints, how will that affect us?

Back to the TAC-or-die example

	LABEL  lab:6
	GOTO   lab:2

	BLE    loc:64,const:0,lab:6
	GOTO   lab:3
	LABEL  lab:6
	GOTO   lab:2
	LABEL  lab:3

The code for parameter 1 is empty; its string address will be pushed onto the stack when we get to that part. Here is the code for parameter 2, storing the return value in a new temporary variable.

	PARAM  loc:64
	CALL   fib,1,loc:136

	PARAM  loc:64
	CALL   fib,1,loc:136
	PARAM  loc:136
	PARAM  sconst:0
	CALL   printf,2,loc:144

proc main,0,128
	LABEL  lab:1
	ADDR   loc:72,loc:0
	PARAM  loc:72
	CALL   readline,1,loc:80
	BNE    loc:80,const:0,lab:5
	GOTO   lab:2
	LABEL  lab:5
	MUL    loc:96,const:0,const:1
	ADDR   loc:104,loc:0
	ADD    loc:104,loc:104,loc:96
	DEREF  loc:112,loc:104
	BNEC   loc:112,const:4,lab:4
	GOTO   lab:2
	ADDR   loc:120,loc:0
	PARAM  loc:120
	CALL   atoi,1,loc:128
	ASN    loc:64,loc:128
	BLE    loc:64,const:0,lab:6
	GOTO   lab:3
	LABEL  lab:6
	GOTO   lab:2
	LABEL  lab:3
	PARAM  loc:64
	CALL   fib,1,loc:136
	PARAM  loc:136
	PARAM  sconst:0
	CALL   printf,2,loc:144
	GOTO   lab:1
	LABEL  lab:2
	RETURN

Intermediate Code Generation for Structs, Classes and OO

• CodeGen for structs/classes depends a lot on the language semantics.
• Lecture notes with ideas relevant to Java, ActionScript, or Unicon may not do things identically to what a C++ subset needs.
• For a new language, we are needing to invent some stuff.
• Maybe some new 3 address opcodes/instructions, for example.
• Next section was for a C++ subset. For each bit, ask how is our target language different?
• More general OO considerations deferred to later

Consider the following simplest possible OO class example program:

class pet {
     int happy
      pet() { happy = 50 }
      void play() {
        write("Woof!\n")
	happy += 5
	}
}
int main()
{
    pet pet1
    pet1.play()
    return 0
}

• allocation
• initialization via constructor
• method calling
• member variable referencing

Object Allocation

memory allocation of an object is similar to other types.

it can be in the global, local (stack-relative) or heap area

the # of bytes (size) of the object must be computed from the class.

each symbol table should track the size of its members

for a global or local object, add its byte-count size requirement to its containing symbol table / region.

effectively, no separate code generation for allocation

translate a "new" expression into a malloc() call...

plus for all types of object creation, a constructor function call has to happen.

Initialization via Constructor

• A major difference between objects and, say, integers, is that objects have constructors.
• Constructor, like all other member functions, takes a 0th parameter that is a pointer to the object instance. Could be implemented as a register variable, similar to %ebp procedure frame pointer.
• For a local, the object variable declaration translates into a constructor function call that happens at that point in the code body. Just catenate .icode into the linked list.
• For a "new" object, the constructor function call happens right after the (successful) call to allocate the object.
• For a global, how do we generate code for its constructor call? When does it execute? ... Good news, everyone! 120++ almost does not support globals at all, and only has integer globals.

Method Invocation

o.f(arg1,...,argN)

• In C++ it's just a method invocation.
• When o's class C is known at compile time and methods are non-virtual, You can generate C__f(&o, arg1, ..., argN).
• Note the flip side of this: when you generate code for the member function body, you do the same name mangling, and add the same extra one-word "this" parameter to the symbol table.

Member variable references

inside a member function, i.e. access member variable x.

Handle like with arrays, by allocating a new temporary variable in which to calculate the address of this->x. Take the address in the "this" variable and add in x's offset as given in the symbol table for this's class.

outside an object, o.x.

Handle as above, using o's address instead of this's. You would also check o's class to make sure x is public.

Code Generation for Dynamic OO Languages

• In a "really" OO language, for o.f(...) you'd do semantic analysis to know whether f is a method of o's class, or a member variable that happens to hold a function pointer
• What if f is a method that C inherits from some superclass S?
• What if o's class not known at compiled time and/or methods are virtual. You have to calculate at runtime which method f to use for o. What are your options???

Now let's consider a simple real-world-ish example. Class TextField, a small, simple GUI widget. A typical GUI application might have many textfields on each of many dialogs; many instances of this class will be needed.

The source code for TextField is only 767 lines long, with 17 member variables and 47 member functions. But it is a subclass of class Component, which is a subclass of three other classes...by the time inheritance is resolved, we have 44 member variables, and 149 member functions. If we include function pointers for all methods in the instance, 77% of instance variable slots will be these function pointers, and these 77% of the slots will be identical/copied for all instances of that class.

The logical thing to do is to share a single copy of the function pointers, either in a "class object" that is an instance of a meta-class, or more minimally, in a struct or array of function pointers that might be called (by some) a methods vector.

Methods Vectors

Old Mailbag

What if my program has three functions, each with a local variable to declare?

Each function's "local region" is allocated uniquely each time they are called. Each of your functions' local regions starts at offset 0 so all three local variables might say LOC:0 for local region offset zero. And yet, they never refer to the same memory, because they are always offsets relative to some base pointer register on the stack.

When do I allocate my labels? When do I use them?

You allocate them in one or more tree traversals prior to starting the main traversal that generates the linked lists of 3-address code. Most labels are allocated very close to where they are used. You use labels by generating pseudo-instructions in the linked list AND by filling in the target addresses used by goto instructions with LAB:#N for label number N.

I am confused about how to access class members via the "this" pointer. I am unsure how to do the offsets from the "this" pointer in three address code without creating a new symbol table for class instances.

An object instance is like its own little memory region. The this pointer is a parameter; offsets relative to what it points at are done via pointer arithmetic. Each class should indeed have a symbol table for its member variables' offsets.

Do you have an example that uses each of the pseudo instructions (global, proc, local, label, and end), so we know how these should be formatted?

No. The pseudo instructions should have opcodes and three address fields; their presence in the linked list of three address codes is the same as an instruction. Their format when you print them out is not very important since this is just intermediate code. But: instructions are on a single line that begins with a tab character, and pseudo instructions are on a single line that does not begin with a tab character.

We have const that can hold an int/(int)char/boolean, a string region for holding a string offset, but what should we do about double const values?

Real number constants have to be allocated space similar to other types. They could either be allocated out of a separate "real number constant region", or the constants of different types could all be allocated out of the same region, with different offsets and sizes as needed. Note that not all integer constants fit in instructions, so potentially some of them may have to be allocated as static data also.

Do the linked lists of code really just get concatenated in order until the entire program is one big linked list? Does main() have to be at the beginning in generated code?

Not really, and not really. It is recommended that you build one big linked list for the generated code, but I am a pragmatist; do what makes sense to you to generate all the code. In real native OS'es, the code at the beginning of the executable is not main, it is some weird startup boostrapper that sets up environment and command line arguments and then calls main(). So no, main() does not have to be at the top, unless maybe you are building an image for an embedded system that doesn't have an OS or something like that.

How do I represent function names in addresses in 3 address code?

One option is to totally dodge, and generate code for one function at a time, at a place where you know the function name. If you choose instead to build one big linked list, function "names" get boiled down to code region addresses. So far we have one kind of address in the code region: labels. You could literally generate label #'s for these things, but function names are more human-friendly. Unless you turn function names into labels, you should create a new region (call it PROCNAME). You could make the "offset" field in your 3 addresses a union

     struct addr {
      int region; // if PROCNAME, use u.s instead of u.i
      union {
         int offset;
	 char *s;
         } u;
      }

You could, instead, make an array of string funcnames in your compiler and have your region PROCNAME provide offsets that are subscripts into this array of funcnames.

I am having a hard time understanding how everything will be put together in the end, will it be one linked list once all the instructions are concatenated? How should we handle assigning locations to functions like Println? Once we see import "fmt" should we go to that symbol table and assign locations to those functions then?

Library functions like Println require that we store enough information to call them, but not that we store information to generate code for them. fmt should have an associated symbol table entry for Println which should know that Println takes a string argument. Code for a call to fmt.Println should mangle that name out to something like fmt__Println.

can we just define a function without parameters as call, so main is equivalent to main() if not followed by parentheses?

Do not confuse type (reference to) FUNCTION with the function's return type, which is the result of a call (postfix parentheses operator).

Where we are at

One More Intermediate Code Example, with Feeling

Yeah, we'll do one alright; this week. But it will take a bit more preparation, so: not today. This weekend I spent a fair bit digging into another code generation topic, namely LLVM, and we will also be talking about that.

Mailbag

Remind me again: What is the MINIMUM I have to do to pass this class

That depends on exam results, but generally students need either good exam results and at least get through type checking, or less good exam results and at least some/partial intermediate code to "pass". This semester folks are behind where we are some other semesters, and that may help you, since you are graded relative to your peers. A grade extension might be an option. I am pretty darn OK with grade extension if you have been working at it but need more progress. You should check whether it would prevent you from walking in commencement, but they seem to have relaxed NMT's traditional hard-core commencement-walking rules lately.

I have been working 12 days a week, 7 hours per day on this homework and it just isn't fair.

Some of you are probably working more efficiently than others ("work smarter"), but the goal was not to teach you what the death marches in industry are going to be like. The goal is to cause you to increase your skill level in programming and/or software engineering.

Where is my HW#5 feedback?

You made it to a HW#5 submission? Congratulations! I spent quality time this weekend on regrades of HW#2-4 and did the groundwork for grading HW#5. I will get right on that.

I'm having trouble figuring out what TAC I need to generate for a function definition. For example, given the function

int foo(int x){
   ...somecode
}

I'm having trouble understanding what code needs to be generated at this level. I understand that there needs to be (at least) 1 label, at the very start (to be able to call the function).

In final code, the procedure entry point will indeed include a label. In three address code, a function header should result in a PROC pseudo-instruction for which you create a link list element, just like everything else.

I'm having trouble understanding what code I would create for the int return, or to define the space available for parameters.

The "return type" at the top of a function generates no code, but it may affect what you generate when you hit a "return" statement in the function body.

The proc pseudoinstruction includes a declaration of how many (words of parameters) it requires/assumes has been passed in to a function, from which space required may be calculated. In most native code the caller allocates this space; the called function just decides the amount of local/temp variable space on the stack that the procedure requires. So the pseudoinstructions in intermediate code that you use is something like:

proc foo,1,nbytes_localspace

This question gets more interesting if you have the ability to return multi-word values such as a struct, for which a register will not suffice! What do you think a compiler should do in that case?

If I understand the return properly, I don't actually generate code at this (the procedure header return type) node for the return. It gets generated at the return statement in the body.

Yes. There and at the end of any function that falls off the end. In final code the return statement will put a return value in %eax and then jump down to the end of the function to use its proper function-return assembler instruction(s).

I guess the .addr of a parameter int x is what is really getting me. Do I really need to worry about it too much in TAC, because it is just 'local 0' (or whatever number gets generated)?

I recommend you consider it (in TAC) to be region PARAM offset 0. That could be handled almost identically to locals in final code, unless you use the fact that parameters are passed in registers...

Then I really end up worrying about it during final code since local 0 might actually be something like %rbp -1 or wherever the location on the stack parameters end up being located.

If you make a separate region for parameters, by saying a variable is is PARAM region offset 0, the TAC code for parameters is distinct from locals. Parameters can be found to be at a different location relative to the %rbp (positive instead of negative offsets) or passed in registers.

A New Fun Intermediate CodeGen Example

package main
import "fmt"
func min(a,b,c int) int {
  if a<=b && a<=c {
     return a
  } else if b<=a && b<=c {
     return b
  }
  return c
}

func main() {
  fmt.Println(min(3,6,2))
}

lecture #25 began here

Final Code Generation

• Goal: execute the program we have been translating, somehow.
• Note: in real life we would execute a major optimization phase on the intermediate code, before generating final code.

interpret the source code

we could build an interpreter instead of a compiler, in which the source code was kept in string or token form, and re-parsed, possibly repeatedly, during execution. Some early BASICs and operating system shell scripting languages do this, but it is Really Slow.

interpret the parse tree

we could write an interpreter that executes the program by walking around on the tree doing traversals of various subtrees. This is still slow, but successfully used by many "scripting languages".

interpret the 3-address code

we could interpret the link-list or a more compact binary representation of the intermediate code

translate into VM instructions

popular virtual machines such as JVM or .Net allow execution from an instruction set that is often higher level than hardware, may be independent of the underlying hardware, and may be oriented toward supporting the specific language features of the source language. For example, there are various BASIC virtual machines out there.

translate into "native" instructions

"native" generally means hardware instructions.

1. translate into VM assembler for the LLVM IR, or
2. translate into native x86_64 <<-- "simplest"

Native Code Generation

1. takes a linear sequence of 3-address intermediate code instructions, and
2. translates each 3-address instruction into one or more native instructions.

The big issues in code generation are:

(a) instruction selection, and

(b) register allocation and assignment.

Registers

• 32-bit x86 claims eight (8) general purpose registers although several are typically used for specific purposes suggested by their name: (eax, ecx, edx, ebx, esp, ebp, esi, edi)
• 64-bit AMD64 (a.k.a. x86-64) has sixteen (16) registers: rax, rcx, rdx, rbx, rsp, rbp, rsi, rdi, r8, r9, r10, r11, r12, r13, r14, r15
• DEC VAX had 32 registers
• ARM (hello, smartphones) has 8, or maybe 13
• other RISC systems often have 32 or more; Sun SPARC has 192 registers accessed via a sliding register window

Collecting Information Necessary for Final Code Generation

Option #A: a top-down approach to learning your native target code.

Study a reference work supplied by the chip manufacturer, such as the AMD64 Architecture Programmer's Manual (Vol. 2, Vol. 3).

Option #B: a bottom-up (or reverse engineering) approach to learning your native target code.

study an existing compiler's native code. For example, run "g++ -S" for various toy programs to learn native instructions corresponding to each expression, particularly ones equivalent to the various 3-address instructions.

Instruction Selection

• how many registers are tied to particular instructions?
• is a special case instruction available for a particular computation?
• what addressing mode(s) are supported for a given instruction?

• "fastest" is often approximated by the number of memory references incurred during execution, including the memory references for the instructions themselves.
• picking the shortest sequence of instructions is often a good approximation of the optimal result, since fewer instructions usually translates into fewer memory references.

A good set of examples of instruction selection are to be found in the superoptimizer paper. From that paper:

• a longer instruction sequence may be faster if it avoids gotos
• sometimes the fastest sequence exploits specific constants in the operands and is really, really surprising.

Register Allocation and Assignment

• reading values in registers is much much faster than accessing main memory.
• Register allocation denotes the selection of which variables will go into registers.
• Register assignment is the determination of exactly which register to place a given variable.
• goal: minimize the total number of memory accesses required by the program.

The (register allocation) job changes as CPUs change

• In the age of dinosaurs, Load-Store architectures featured only one (accumulator) register. Register allocation and assignment was moot.
• In the age of minis and micros, it was usually "easy", e.g. traditional x86 had 4 registers instead of 1.
• Recent History features CPU's with 32 or more general purpose registers. On such systems, high quality compiler register allocation and assignment makes a huge difference in program execution speed.
• :-( btw, optimal register allocation and assignment is NP-complete! Compilers must settle for doing a "good" job.
• usually the # of variables at many given time exceeds the number of registers available (the common case)
• variables may be used (slowly) directly from memory IF the instruction set supports memory-based operations.
• When an instruction set does not support memory-based operations, all variables must be loaded into a register in order to perform arithmetic or logic using them.

Even if an instruction set does support memory-based operations, most compilers should load a value into a register while it is being used, and then spill it back out to main memory when the register is needed for another purpose. The task of minimizing memory accesses becomes the task of minimizing register loads and spills.

Mailbag

I'm starting to come across certain 3-address instructions that we haven't seen examples of yet, mainly the ones for branches and conditionals. Would we be able to talk about some examples in class possibly? If not, could I get an example for something like the BLT instruction in an if statement?

BLT stands for Branch-if-less-than. It takes two operands compares them and if src1 is less than src2, it jumps the instruction pointer to the destination (the 3rd address is a label, i.e. a code region offset). It is kind of interesting to compare this with X86_64.

Intermediate	Final
BLT loc:16,const:5,lab:32	cmpq $5,-24(%rbp) jg .L32 ... code for a then-part .L32:

• Three-address code is a bit higher-level than X86_64
• no registers in three address code, just a clean conditional branch
• X86_64 makes you do an explicit compare instruction
• the various X86_64 conditional branch instructions depend on the logical combinations of the four flags set by cmp in a condition code flag register.

Native Code Generation Examples

Reusing a Register

   a = a+b+c+d+e+f+g+a+c+e;

	movl	b, %eax
	addl	a, %eax
	addl	c, %eax
	addl	d, %eax
	addl	e, %eax
	addl	f, %eax
	addl	g, %eax
	addl	a, %eax
	addl	c, %eax
	addl	e, %eax
	movl	%eax, a

Just for fun, the corresponding .u file, with filen/line/column/synt pseudoinstructions removed, and comments added

Now consider

   a = (a+b)*(c+d)*(e+f)*(g+a)*(c+e);

	movl	b, %eax
	movl	a, %edx
	addl	%eax, %edx
	movl	d, %eax
	addl	c, %eax
	imull	%eax, %edx
	movl	f, %eax
	addl	e, %eax
	imull	%eax, %edx
	movl	a, %eax
	addl	g, %eax
	imull	%eax, %edx
	movl	e, %eax
	addl	c, %eax
	imull	%edx, %eax
	movl	%eax, a

   a = ((a+b)*(c+d))+((e+f)*(g+a))+(c*e);

	movl	b, %eax
	movl	a, %edx
	addl	%eax, %edx
	movl	d, %eax
	addl	c, %eax
	movl	%edx, %ecx
	imull	%eax, %ecx
	movl	f, %eax
	movl	e, %edx
	addl	%eax, %edx
	movl	a, %eax
	addl	g, %eax
	imull	%edx, %eax
	leal	(%eax,%ecx), %edx
	movl	c, %eax
	imull	e, %eax
	leal	(%eax,%edx), %eax
	movl	%eax, a

Mailbag

What will HW#7 be graded on?

A typical jeffery HW#7 rubric might look like:

.zip Compiles w/no warnings:	__/3
Valgrind is clean:	__/4
-s: writes .s|.tac.c files:	__/5
-c: writes .o files:	__/5
fec produces executables:	__/5
Generates final code/exprs:	__/7
Generates final code/gotos:	__/7
Generates final code/funcs:	__/7
Generates final code/decls:	__/7
Total:	__/50

What constitutes "full credit" for HW#7

• You are graded relative to your peers. In a typical offering of CSE 423, some students produce a lot more working final code than other students.
• Test cases tend towards simple obvious functionality in each category, rather than exhaustive testing or trick questions.
• Teams are expected to produce more thorough results than individuals, proportional to the number of team members.

Comparison of 32-bit and 64-bit x86 code

x86 32-bit	x86_64
movl b, %eax addl a, %eax addl c, %eax addl d, %eax addl e, %eax addl f, %eax addl g, %eax addl a, %eax addl c, %eax addl e, %eax movl %eax, a	movq a(%rip), %rdx movq b(%rip), %rax addq %rax, %rdx movq c(%rip), %rax addq %rax, %rdx movq d(%rip), %rax addq %rax, %rdx movq e(%rip), %rax addq %rax, %rdx movq f(%rip), %rax addq %rax, %rdx movq g(%rip), %rax addq %rax, %rdx movq a(%rip), %rax addq %rax, %rdx movq c(%rip), %rax addq %rax, %rdx movq e(%rip), %rax leaq (%rdx,%rax), %rax movq %rax, a(%rip)

Q: Should we be disappointed that the 64-bit code looks a lot longer?

A: Maybe instead we should be fascinated.

• Looks can be deceiving; x86_64 tends to run a lot faster than x86
• Instruction prefetch on x86_64 is extensive; instructions that use register operands are short and many may be prefetched together.
• Superscalar architectures can execute multiple instructions in parallel
• The instructions selected here may be specifically maximizing the superscalar behavior

The globals are declared something like the following.

• .comm stands for data in a "common" (a.k.a. global data) section.
• .globl and .type are used for functions, and are really part of the function header before the function code starts.

	.comm	a,8,8
	.comm	b,8,8
	.comm	c,8,8
	.comm	d,8,8
	.comm	e,8,8
	.comm	f,8,8
	.comm	g,8,8
	.text
.globl main
	.type	main, @function

Brief Comparison of x86-64 globals vs. locals

x86_64 local vars	x86_64 globals (as per last example)
movq -48(%rbp), %rax movq -56(%rbp), %rdx leaq (%rdx,%rax), %rax addq -40(%rbp), %rax addq -32(%rbp), %rax addq -24(%rbp), %rax addq -16(%rbp), %rax addq -8(%rbp), %rax addq -56(%rbp), %rax addq -40(%rbp), %rax addq -24(%rbp), %rax movq %rax, -56(%rbp)	movq a(%rip), %rdx movq b(%rip), %rax addq %rax, %rdx movq c(%rip), %rax addq %rax, %rdx movq d(%rip), %rax addq %rax, %rdx movq e(%rip), %rax addq %rax, %rdx movq f(%rip), %rax addq %rax, %rdx movq g(%rip), %rax addq %rax, %rdx movq a(%rip), %rax addq %rax, %rdx movq c(%rip), %rax addq %rax, %rdx movq e(%rip), %rax leaq (%rdx,%rax), %rax movq %rax, a(%rip)

Parameters

Consider the following example. Note that "long" is used to more closely resemble our "everything is a 64-bit value" mind-set.

#include <stdio.h>

long f(long,long,long);

int main()
{
   long rv = f(1, 2, 3);
   printf("rv is %ld\n", rv);
}

long f(long a, long b, long c)
{
   long d, e, f, g;
   d = 4; e = 5; f = 6; g = 7;
   a = ((a+b)*(c+d))+(((e+f)*(g+a))/(c*e));
   return a;
}

	.file	"paramdemo.c"
	.text
	.section	.rodata
.LC0:
	.string	"rv is %ld\n"
	.text
	.globl	main
	.type	main, @function
main:
.LFB0:
	.cfi_startproc
	pushq	%rbp              # save old frame pointer
	.cfi_def_cfa_offset 16
	.cfi_offset 6, -16
	movq	%rsp, %rbp        # set new frame pointer
	.cfi_def_cfa_register 6
	subq	$16, %rsp         make 16 bytes (two words) of locals
	movl	$3, %edx          "push" parameters back to front, first 6 in registers
	movl	$2, %esi             note implied sign extension
	movl	$1, %edi
	call	f                 call normal func
	movq	%rax, -8(%rbp)    store return in rv
	movq	-8(%rbp), %rax    LOL
	movq	%rax, %rsi        "push" parameter 2
	leaq	.LC0(%rip), %rdi  "push" parameter 1
	movl	$0, %eax          vararg # float parms
	call	printf@PLT        call shared lib func
	movl	$0, %eax          implicit return value is 0
	leave                     restore frame pointer
	.cfi_def_cfa 7, 8
	ret                       implicit return
	.cfi_endproc              end pseudo-instruction
.LFE0:                            end of function label 0
	.size	main, .-main      end pseudo-instruction
	.globl	f
	.type	f, @function
f:
.LFB1:
	.cfi_startproc
	pushq	%rbp
	.cfi_def_cfa_offset 16
	.cfi_offset 6, -16
	movq	%rsp, %rbp        frame pointer but no local allocation!?!
	.cfi_def_cfa_register 6
	movq	%rdi, -40(%rbp)   pop param 1 to "a"
	movq	%rsi, -48(%rbp)   pop param 2 to "b"
	movq	%rdx, -56(%rbp)   pop param 3 to "c"
	movq	$4, -32(%rbp)     initialize d
	movq	$5, -24(%rbp)     initialize e
	movq	$6, -16(%rbp)     initialize f
	movq	$7, -8(%rbp)      initialize g
	movq	-40(%rbp), %rdx
	movq	-48(%rbp), %rax
	leaq	(%rdx,%rax), %rcx     a+b
	movq	-56(%rbp), %rdx
	movq	-32(%rbp), %rax
	addq	%rdx, %rax            c+d
	imulq	%rax, %rcx            (a+b)*(c+d)
	movq	-24(%rbp), %rdx
	movq	-16(%rbp), %rax
	leaq	(%rdx,%rax), %rsi     e+f
	movq	-8(%rbp), %rdx
	movq	-40(%rbp), %rax
	addq	%rdx, %rax            g+a
	imulq	%rsi, %rax            (e+f)*(g+a)
	movq	-56(%rbp), %rdx
	movq	%rdx, %rdi
	imulq	-24(%rbp), %rdi       c*e
	cqto
	idivq	%rdi
	addq	%rcx, %rax
	movq	%rax, -40(%rbp)       assign a
	movq	-40(%rbp), %rax       use a as return val
	popq	%rbp
	.cfi_def_cfa 7, 8
	ret
	.cfi_endproc
.LFE1:
	.size	f, .-f
	.ident	"GCC: (Ubuntu 7.5.0-3ubuntu1~18.04) 7.5.0"
	.section	.note.GNU-stack,"",@progbits

• The first 6 (perhaps more if there are floats) parameters are passed in registers, but you can allocate local variable space for them, and copy them into their local space, after which they can be treated exactly like other locals. Even when that is kinda dumb.
• Differences in code generation for "leaf functions" than for the normal general case: no %rsp assignment, simpler frame pointer restore. You do not have to (and are not expected to) do these as a special case, but determining whether a function is a "leaf" is pretty easy.

Aside on .cfi* assembler directives

• Explanation of CFI directives (CFI stands for Call Frame Information)
• Summary: the .cfi* assembler pseudoinstructions are used for exception handling. You can get rid of them using the gcc flag -fno-asynchronous-unwind-tables. Code still assembles and runs without them.

lecture #26 began here

malloc() and a bit of pointer arithmetic

#include

void main()
{
  long *l = malloc(144);
  l[5] = 7;
}

	.file	"malc.c"
	.text
	.globl	main
	.type	main, @function
main:
.LFB6:
	.cfi_startproc
	endbr64                   no-op, ctrlflow enforcement
	pushq	%rbp
	.cfi_def_cfa_offset 16
	.cfi_offset 6, -16
	movq	%rsp, %rbp
	.cfi_def_cfa_register 6
	subq	$16, %rsp
	movl	$144, %edi
	call	malloc@PLT
	movq	%rax, -8(%rbp)
	movq	-8(%rbp), %rax
	addq	$40, %rax
	movq	$7, (%rax)
	nop
	leave                     restore frame pointer
	.cfi_def_cfa 7, 8
	ret
	.cfi_endproc
.LFE6:
	.size	main, .-main
	.ident	"GCC: (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0"
	.section	.note.GNU-stack,"",@progbits
	.section	.note.gnu.property,"a"
	.align 8
	.long	1f - 0f
	.long	4f - 1f
	.long	5
0:
	.string	"GNU"
1:
	.align 8
	.long	0xc0000002
	.long	3f - 2f
2:
	.long	0x3
3:
	.align 8
4:

Creating an object via new

_Znwm

similar to a malloc(); it takes an integer parameter (constant 16, the # of bytes to allocate) and returns a pointer

_ZN1CC1Ev

a call to a C++ constructor function, with an implicit/added first parameter for this, the object instance that the member function is working on.

"new" in final code FYI

class C {
  private: long x, y;
  public:  C() { x=3; y=4; }
};

int main()
{
   C *a = new C;
}

	.file	"new.cpp"
	.section	.text._ZN1CC2Ev,"axG",@progbits,_ZN1CC5Ev,comdat
	.align 2
	.weak	_ZN1CC2Ev
	.type	_ZN1CC2Ev, @function
_ZN1CC2Ev:
.LFB1:
	.cfi_startproc
	.cfi_personality 0x3,__gxx_personality_v0
	pushq	%rbp
	.cfi_def_cfa_offset 16
	.cfi_offset 6, -16
	movq	%rsp, %rbp
	.cfi_def_cfa_register 6
	movq	%rdi, -8(%rbp)			// copy "self" to stack
	movq	-8(%rbp), %rax			// load "self"
	movq	$3, (%rax)
	movq	-8(%rbp), %rax
	movq	$4, 8(%rax)
	leave
	.cfi_def_cfa 7, 8
	ret
	.cfi_endproc
.LFE1:
	.size	_ZN1CC2Ev, .-_ZN1CC2Ev
	.weak	_ZN1CC1Ev
	.set	_ZN1CC1Ev,_ZN1CC2Ev
	.text
.globl main
	.type	main, @function
main:
.LFB3:
	.cfi_startproc
	.cfi_personality 0x3,__gxx_personality_v0
	pushq	%rbp
	.cfi_def_cfa_offset 16
	.cfi_offset 6, -16
	movq	%rsp, %rbp
	.cfi_def_cfa_register 6
	pushq	%rbx
	subq	$24, %rsp
	movl	$16, %edi
	.cfi_offset 3, -24
	call	_Znwm
	movq	%rax, %rbx
	movq	%rbx, %rax
	movq	%rax, %rdi
	call	_ZN1CC1Ev
.L5:
	movq	%rbx, -24(%rbp)
	movl	$0, %eax
	addq	$24, %rsp
	popq	%rbx
	leave
	.cfi_def_cfa 7, 8
	ret
	.cfi_endproc
.LFE3:
	.size	main, .-main
	.ident	"GCC: (GNU) 4.4.7 20120313 (Red Hat 4.4.7-3)"
	.section	.note.GNU-stack,"",@progbits

• a good general discussion is available on Wikipedia
• Each C compiler makes its own rules. We could do what we want unless we need to be compatible with another compiler to call their library functions, in which case we have to follow their calling conventions.
• In C/C++, parameters are passed in reverse order
• (as we have seen,) in gcc/g++, several parameters are passed in registers, but generally get allocated local region space and saved there by callee
• in gcc/g++ the callee explicitly restores stack and old call frame, the RET instruction doesn't do that magically, it just manages to restore the program counter register back to the caller.
• In (newer versions of) G++, the parameter section is 16-byte aligned

How this looks and is used inside member functions

• it is the first parameter, so it is passed in %rdi
• g++ seems to reserve local memory space and copy/save the registers into that local memory space for ALL parameters passed in registers, so it does that for this
• it may make it more likely that you run out of registers to pass all your parameters in, and are passing later regular paramters on the stack.
• references (through this) to member variables are done using the "usual" indirect addressing mode, which takes an optional small constant as a byte offset when reading/writing using a pointer. If the this pointer is in %rax and our byte offset for a member variable is 8, then 8(%rax) is the assembler syntax to read or write to that variable.

About name mangling in C++ vs. your compiler

• C++ has to name mangle because it does function overloading.
• your compiler doesn't have to use the C++ _Znwm, it can call malloc() for all I care
• your compiler almost doesn't have to name mangle at all, what is the exception?

More about LEAL

• leal (load effective address) is a complex instruction usually used for pointer arithmetic, i.e. its output is usually a pointer.
• due to x86 CISC addressing modes, leal can actually add two registers, multiplying one of those registers by 1, 2, 4, or 8, and then adding a constant offset in as well. It is a "more than 3 address instruction".
• the instruction selection module of gcc knows it can be used for addition.
• Unlike "add" instruction, it does not set the condition flag,
• This property might allow it to execute in parallel with some other arithmetic operation that does use the condition flag. So sure enough: it (potentially) improves superscalar execution, and gcc/g++ are smart enough to use it instead of ADD sometimes.

Lastly (for now) consider:

   a = ((a+b)*(c+d))+(((e+f)*(g+a))/(c*e));

	movl	b, %eax
	movl	a, %edx
	addl	%eax, %edx
	movl	d, %eax
	addl	c, %eax
	movl	%edx, %ecx
	imull	%eax, %ecx
	movl	f, %eax
	movl	e, %edx
	addl	%eax, %edx
	movl	a, %eax
	addl	g, %eax
	imull	%eax, %edx
	movl	c, %eax
	imull	e, %eax
	movl	%eax, -4(%ebp)
	movl	%edx, %eax
	cltd
	idivl	-4(%ebp)
	movl	%eax, -4(%ebp)
	movl	-4(%ebp), %edx
	leal	(%edx,%ecx), %eax
	movl	%eax, a

	pushq	%rbx
	subq	$88, %rsp
	movq	$1, -72(%rbp)
	movq	$2, -64(%rbp)
	movq	$3, -56(%rbp)
	movq	$4, -48(%rbp)
	movq	$5, -40(%rbp)
	movq	$6, -32(%rbp)
	movq	$7, -24(%rbp)
	movq	-64(%rbp), %rax
	movq	-72(%rbp), %rdx
	leaq	(%rdx,%rax), %rcx
	movq	-48(%rbp), %rax
	movq	-56(%rbp), %rdx
	leaq	(%rdx,%rax), %rax
	imulq	%rax, %rcx
	movq	-32(%rbp), %rax
	movq	-40(%rbp), %rdx
	leaq	(%rdx,%rax), %rbx
	.cfi_offset 3, -24
	movq	-72(%rbp), %rax
	movq	-24(%rbp), %rdx
	leaq	(%rdx,%rax), %rax
	imulq	%rbx, %rax
	movq	-56(%rbp), %rdx
	movq	%rdx, %rbx
	imulq	-40(%rbp), %rbx
	movq	%rbx, -88(%rbp)
	movq	%rax, %rdx
	sarq	$63, %rdx
	idivq	-88(%rbp)
	leaq	(%rcx,%rax), %rax
	movq	%rax, -72(%rbp)
	movl	$.LC0, %eax
	movq	-72(%rbp), %rdx
	movq	%rdx, %rsi
	movq	%rax, %rdi
	movl	$0, %eax
	call	printf
	addq	$88, %rsp
	popq	%rbx

• saving a register so you can use it (%rbx)
• allocating a whole local region of 88 bytes
• storing immediate values into main memory
• addition by leaq'ing registers

LEAVE instruction

movq rsp, rbp ; set top of stack back to where caller had it
popq rbp      ; set base pointer back to saved value at (%rsp)

Chapter 10 of this free compiler book from Doug Thain

Brief Comment on HW Resubmissions

More on DIV instruction

• The cheat sheet says div divides reg. ax by [src], ratio in ax, remainder in dx.
• It also says dx must be 0 to start or you get a SIGFPE.
• The big book says your basic full-size divide instruction divides a big value stored in a pair of registers (32 bit: EDX:EAX or 64 bit: RDX:RAX), by which point I am thinking I have to give the general introduction to X86_64 before this should be remotely understandable.

Helper Function for Managing Registers

1. if y is in a register R that holds the value of no other names, AND y is not live after the execution of this instruction, THEN return register R as your location L
2. ELSE return an empty register for L if there is one
3. ELSE if x has a next use in the block or op is an operator that requires a register (e.g. indexing), find an occupied register R. Store R into the proper memory location(s), update the address descriptor for that location, and return R
4. if x is not used in the block, or no suitable occupied register can be found in (3), return the memory location of x as L.

lecture #27 began here

Next Tuesday

• I have been asked to give a lecture on my programming language Unicon in the CSE 324 class across the hall.
• I am also committed to give a final exam review.
• Tuesday's class will be half final exam review and half "Unicon, a language and its Compiler".
• You can watch the second half (Unicon lecture) either from Cramer 203 (to the extent seats are available) or via zoom (in our current classroom, or remotely).

How to Compute your Pre-Final CSE 423 Grade

1. Each Graded Item (HW, Exam, Sum of Labs) is Normalized in the range [0.0,1.0] Against the High Scores obtained by a class member for that assignment:

   Graded Item	Max
   HW#1	4
   HW#2	20
   HW#3	26
   Midterm	295
   HW#4	27
   HW#5	25
   HW#6	23
   HW#7	??
   Final	?
   Labs	30

2. Each normalized Graded Item is Multiplied Against a Weight. The weights are percentages of the total grade. In the end they will add to 100.

   Graded Item	Weight
   HW#1	1
   HW#2	6
   HW#3	7
   Midterm	25
   HW#4	7
   HW#5	8
   HW#6	8
   HW#7	9
   Final	25
   Labs	4

3. Weighted scores are Summed. For each gradable item, you got some fraction of the total weight that that item was worth.
4. Sum is divided by total weight and multiplied by 100 to give your overall percentage against an "ideal peer".
5. Jeffery subjectively decides whether the high "A" is, and how far to draw the ABCD lines 10% apart, 12% apart, 15% apart, 20%, etc. For this semester, suppose the "A" line is at 90% of the "ideal peer", the grades are 15% apart.

   Overall Percentage	Grade
   90+	A
   85+	A-
   80+	B+
   75+	B
   70+	B-
   65+	C+
   60+	C
   55+	C-
   50+	D+
   45+	D
   40+	D-

Putting It All Together: A Simple Code Generator

• Register allocation will be done only within a basic block. All variables that are live at the end of the block are stored in memory if not already there.
• Data structures needed:

  Register Descriptor

  Keeps track of what is in each register. Consulted when a new register is needed. All registers assumed empty at entry to a block.

  Address Descriptors

  Keep track of the location(s) where the current value of a name can be found at runtime. Locations can be registers, memory addresses, or stack displacements. (can be kept in the symbol table).

Example

// make an array (12?) of these:
struct regdescrip {
   char name[12]; // name to use in codegen, e.g. "%rbx"
   int status;    // 0=empty, 1=loaded, 2=dirty, 4=live, ...
   struct address addr;
   };
// upgrade symbol table entry to use these instead of struct address
struct addr_descrip {
   int status;    // 0=empty, 1=in memory, 2=in register, 3=both
   struct reg_descrip *r; // point at an elem in reg array. could use index.
   struct address a;
   };

Code Generation Algorithm

1. Use getreg() to determine location L where the result of the computation y op z should be stored.
2. Use the address descriptor for y to determine y', a current location for y. If y is currently in a register, use the register as y'. If y is not already in L, generate the instruction MOV y',L to put a copy of y in L.
3. Generate the instruction OP z',L where z' is a current location for z. Again, prefer a register location if z is currently in a register.

   Update the descriptor of x to indicate that it is in L. If L is a register, update its descriptor to indicate that it contains x. Remove x from all other register descriptors.

4. If y and/or z have no next uses and are in registers, update the register descriptors to reflect that they no longer contain y and/or z respectively.

Register Allocation

• which values should be kept in registers (register allocation)
• which register each value should be in (register assignment)

Approaches to Register Allocation

1. Partition the register set into groups that are use for different kinds of values. E.g. assign base addrs to one group, pointers to the stack to another, etc.

   Advantage: simple
   Disadvantage: register use may be inefficient

2. Keep frequently used values in registers, across block boundaries. E.g. assign some fixed number of registers to hold the most active values in each inner loop.

   Advantage: simple to implement
   Disadvantage: sensitive to # of registers assigned for loop variables.

Challenge Question we Ended with Last Time

• Count the number of occurrences in source code? (easy static analysis, but bad results)
• Do math proofs of the frequency relationships between variables (hard static analysis)
• Run the program on representative inputs, and count all uses of variables in that function. (dynamic analysis)
• Make a crude approximation or estimate (easy static analysis)

x86_64 Floating Point

Float Operations

	movsd	-56(%rbp), %xmm0
	movapd	%xmm0, %xmm1
	addsd	-48(%rbp), %xmm1

Float Constants

	movabsq	$4620355447710076109, %rax
	movq	%rax, -8(%rbp)

Simple Machine Model

Instruction Costs

for an instruction I, cost(I) = 1 + sum(cost(operands(I)))

operand costs:

• if operand is a register, cost = 0
• if operand is memory, cost = 1

Usage Counts

In this model, each reference to a variable x accrues a savings of 1 if x is in a register.

• For each use of x in a block that is not preceded by an assignment in that block, savings = 1 if x is in a register.
• If x is live on exit from a block in which it is assigned a value, and is allocated a register, then we can avoid a store instruction (cost = 2) at the end of the block.

  Total savings for x ~ sum(use(x,B) + 2 * live(x,B) for all blocks B)

  This is very approximate, e.g. loop frequencies are ignored.

Cost savings flow graph example

Savings	B1	B2	B3	B4	Total
a	2	1	1	0	4
b	2	0	2	2	6
c	1	0	1	1	3
d	3	1	1	1	6
e	2	0	2	0	4
f	1	2	1	0	4

x86_64 Discussion

• machine level programming as taught at CMU
• Dr. J's TAC-to-x86_64 templates (not finished yet)
• Intel Developer Manuals

For what its worth on Windows 64

Three Kinds of Dependence

• How are they different?
• How do these affect, e.g., decisions about which registers are in use?
• What about concurrency/superscalar CPU's ?

a = b + c; ... d = a + e;

a = b + c; ... b = d + e;

a = b + c; ... a = d + e;

Final Code Generation Example

• finalcg.icn, a program that generates native code
• Assemble output with command line such as as -o demo1.o demo1.s
• needs streamlining, removal of exception directive code per earlier discussion.

Lessons From the Final Code Generation Example

• TAC-to-native-code not that hard; 110 lines netted about half the TAC instruction set in procedure final(); many other opcodes very similar.
• Most complexity centers around calls / returns
• Although you pass parameters in registers, IF YOU CALL ANYTHING, and IF YOU USE YOUR PARAMETERS AFTERWARDS, you will have to allocate space on the stack for your incoming parameters, and save their values to memory before reusing that register.
• How hard would it be, for each function body, to determine whether it calls anything, or is a "leaf" function that does not? How common are such leaf functions?
• Interesting special case: does a function ever turn around and call another function with the same parameters? How often? Under what circumstances might a compiler exploit this?

Reverse Engineering, gcc -S, and Optimization

#include
int fac(long y)
{
   long x;
   if (!y) goto L;
   printf("hello");
 L:
   return 1;
}

I was frustrated to find seemingly idiotic code as gcc's default: it was generating an extra jump and an extra label. Eventually, I tried it with -O just to see what we would get.

The corresponding gcc -S output is as follows:

gcc -S

gcc -O -S

.file "foo.c" .section .rodata .LC0: .string "hello" .text .globl fac .type fac, @function fac: .LFB0: .cfi_startproc pushq %rbp .cfi_def_cfa_offset 16 .cfi_offset 6, -16 movq %rsp, %rbp .cfi_def_cfa_register 6 subq $16, %rsp movq %rdi, -8(%rbp) cmpq $0, -8(%rbp) jne .L2 jmp .L3 .L2: movl $.LC0, %edi movl $0, %eax # num of float args, for vararg funcs call printf .L3: movl $1, %eax leave .cfi_def_cfa 7, 8 ret .cfi_endproc .LFE0: .size fac, .-fac .ident "GCC: (GNU) 4.8.5 20150623 (Red Hat 4.8.5-28)" .section .note.GNU-stack,"",@progbits

.file "foo.c" .section .rodata.str1.1,"aMS",@progbits,1 .LC0: .string "hello" .text .globl fac .type fac, @function fac: .LFB11: .cfi_startproc testq %rdi, %rdi je .L4 subq $8, %rsp .cfi_def_cfa_offset 16 movl $.LC0, %edi movl $0, %eax # num of float args, for vararg funcs call printf .L2: movl $1, %eax addq $8, %rsp .cfi_def_cfa_offset 8 ret .L4: movl $1, %eax ret .cfi_endproc .LFE11: .size fac, .-fac .ident "GCC: (GNU) 4.8.5 20150623 (Red Hat 4.8.5-28)" .section .note.GNU-stack,"",@progbits

Flow Graphs

• A flow graph is a graph in which vertexes are basic blocks
• There is a distinguished initial node, the basic block whose leader is the first instruction.
• There is a directed edge from block B₁ to B₂ if:
  1. There is a conditional or unconditional jump from the last statement of B₁ to the first statement of B₂
  2. B₂ immediately follows B₁ in the order of the program, and B₁ does not end in an unconditional jump.

Flow Graph Example

if (x + y <= 10 && x - y >= 0) x = x + 1;

t1 := x + y if t1 > 10 goto L1

t2 := x - y if t2 < 0 goto L1

t3 := x + 1 x := t3

L1:

Next-Use Information

use of a name

consider two statements

I1: x := ... /* assigns to x */
...
I2: ... := ... x ... /* has x as an operand */

such that control can flow from I1 to I2 along some path that has no intervening assignments to x. Then, I2 uses the value of x computed at I1. I2 may use several assignments to x via different paths.

live variables

a variable x is live at a point in a flow graph if the value of x at that point is used at a later point.

Computing Next-Use Information (within a block only)

• assume we know which names are live on exit from the block (needs dataflow analysis; else assume all nontemporary variables are live on exit)
• scan backwards from the end of the basic block. For each statement

   i:  x := y op z


  do:
  1. attach to stmt. i the current information (from symbol table) about next use and liveness of x, y, and z
  2. in the symbol table, set x to "not live", "no next use"
  3. in the symbol table, set y and z to "live", set next use of y,z to i
  4. treatment of x := y or x := op y is similar
  Note: order of (2) and (3) matters, x may be on RHS as well

lecture #28 began here

lecture #29 began here

lecture #30 began here

Old Mailbag

Could we cover assembly stack allocation/management?

Sure. I've pointed you at a lot of resources; here is another, on Eli Bendersky's site.

• In the general case, calling arbitrary other code, ALL registers that hold live values across a call will have to be saved, and restored after the call. This sounds incredibly expensive, and is only getting more expensive as CPUs add more and more registers. In x86_64, the registers are partitioned into those the caller is responsible for protecting, and those the callee is responsible for.
• Good compilers, then, are all about taking shortcuts and doing the minimum needed for each specific case. A compiler can save costs on the caller side and on the callee side.
• Stack registers. As a reminder, there is an rsp that is the true top of the stack, and a rbp that is the base pointer register for the current function call. The stack grows down.

When and what do we have to push and pop from the stack when we call a function?

We (that mens you) should probably look at a bunch of examples, probably by reverse engineering them with gcc -S, to get a feel for this. A summary on which we can expand/correct is:

• caller pushes parameters. By default the first six parameters go into designated registers instead of main memory. BTW, if you had anything in those registers, you have to save those values (i.e. push them) before sticking parameters in registers for a new call.
• caller saves r10/r11 if it us using them.
• caller executes CALL instruction.
• CALL instruction pushes return address (IPC) and does a GOTO.
• Callee pushes (saves) rbp
• Callee sets rbp to the top of the stack
• Callee saves other "callee-save" registers if it uses them (rbx,r12-r15)
• Callee pushes/creates local region, by subtracting N bytes from rsp.
• Callee by default copies parameters from registers into local space.
• Callee executes function body.
• Callee stores return value in rax, if there is one
• Callee frees local region by adding N bytes to rsp
• Callee restores rbx, r12-r15 if it uses them
• Callee restores rsp and rbp for caller via LEAVE, or its equivalent.
• Callee executes RET, which pops saved IPC and does a GOTO to it.

Can we use the stack exclusively for all of our parameters and local variables?

Your compiler can ignore register parameters entirely when you generate code that calls to and returns from your own functions. IFF your code needs to call C library code (such as printf, reads, etc.) you would have to use the standard calling conventions (including registers) to call those functions successfully.

Storage for Temporaries

• size of activation records grows with the number of temporaries, so compiler should try to allocate temporaries carefully
• in general, two temporaries can use the same memory location if they are not live simultaneously
• allocate temporaries by examining each in turn and assigning it the first location in the field for temporaries that does not contain a live temporary. If a temporary cannot be assigned to a previously created location, use a new location.

Storage for Temporaries Example

t1 live	prod := 0 i := 1 L3: t1 := 4 * i t2 := a[t1]
t3 live	t3 := 4 * i t4 := b[t3]
t5 live	t5 := t2 + t4 t6 := prod + t5
t7 live	prod := t6 t7 := i + 1 i := t7
	if i <= 20 goto L3

t1, t3, t5, t7 can share the same location. What about t2, t4, and t6?

Notes:

• the "reusing temporary variables" problem is pretty much the same as the register allocation problem
• optimal allocation is NP-complete in general

DAG representation of basic blocks

• Each node of a flow graph (i.e. basic block) can be represented by a directed acyclic graph (DAG).
• Why do it? May enable optimizations...

A DAG for a basic block is one with the following labels on nodes:

1. leaves are labelled by unique identifiers, either variable names or constants.
2. interior nodes are labelled by operator symbols
3. nodes are optionally given a sequence of identifiers as labels (these identifiers are deemed to have the value computed at that node).

Example

L:	t1 := 4 * i
	t2 := a[t1]
	t3 := 4 * i
	t4 := b[t3]
	t5 := t2 * t4
	t6 := prod + t5
	t7 := i + 1
	i := t7
	if i <= 20 goto L

• Chapter 6 of the text presents DAGs constructed from syntax trees immediately before, rather than after, three address code.
• We presented it later than that, because it enables common optimizations.

Constructing a DAG

Output: A DAG for the block, containing:

• a label for each node, and
• for each node, a (possibly empty) list of attached identifiers

Method: Consider an instruction x := y op z.

1. If node(y), the node in the DAG that represents the value of y at that point, is undefined, then create a leaf labelled y. Let node(y) be this node. Similar for z.
2. determine if there is a node labelled op with left child node(y) and right child node(z). if not, create such a node. let this node be n
3. • a) delete x from the list of attached identifiers for node(x) [if defined]
   • b) append x to the list of attached identifiers for node n (from 2).
   • c) set node(x) to n

Applications of DAGs

1. automatically detects common subexpressions
2. can determine which identifiers have their value used in the block -- these are identifiers for which a leaf is created in step (1) at some point.
3. Can determine which statements compute values that could be used outside the block -- these are statements s whose node n constructed in step (2) still has node(x)=n at the end of the DAG construction, where x is the identifier defined by S.
4. Can reconstruct a simplified list of 3-addr instructions, taking advantage of common subexpressions, and not performing copyin assignments of the form x := y unless really necessary.

Evaluating the nodes of a DAG

• The evaluation order of the interior nodes of a DAG must be consistent with a topological sort of the DAG, so that operands are evaluated before an operator is applied.
• In the presence of pointer or array assignments, or procedure calls, not every topological sort may be permissible. Example: given a basic block

  x := a[i]
  a[j] := y
  z := a[i]


Code Optimization

Constant Folding

     x = 7;
     ...
     y = x+5;

Common Subexpression Elimination

Explicit:

    (a+b)*i + (a+b)/j;

Implicit:

    x = a[i]; a[i] = a[j]; a[j] = x;

Loop Unrolling

original	unrolled	after subsequent constant folding
for(i=0; i<3; i++) { x += i * i; y += x * x; }	x += 0 * 0; y += x * x; x += 1 * 1; y += x * x; x += 2 * 2; y += x * x;	y += x * x; x += 1; y += x * x; x += 4; y += x * x;

Optimization Techniques, cont'd

Algebraic Properties

name	sample	optimized as
identities	x = x * 1; x = x + 0;
simplification	y = (5 * x) + (7 * x);	y = 12 * x;
commutativity	y = (5 * x) + (x * 7);	y = (5 * x) + (7 * x);
strength reduction	x = y * 16;	x = y << 4;

This open-ended category might also include exploits of associativity, distributive properties, etc.

Hoisting Loop Invariants

for (i=0; i<strlen(s); i++) s[i] = tolower(s[i]);

t_0 = strlen(s); for (i=0; i<t_0; i++) s[i] = tolower(s[i]);

Peephole Optimization

name	sample	optimized as
redundant load or store	MOVE R0,a MOVE a,R0	MOVE R0,a
dead code	#define debug 0 ... if (debug) printf("ugh");
control flow simplification	if a < b goto L1 ... L1: goto L2	if a < b goto L2 ... L1: goto L2

Peephole Optimization Examples

as generated	replace with	comment
movq %rdi, -56(%rbp) cmpq $1, -56(%rbp)	movq %rdi, -56(%rbp) cmpq $1, %rdi	reuse n that's already in a register
cmpq $1, %rdi setle %al movzbl %al,%eax movq %rax, -8(%rbp) cmpq $0, -8(%rbp) jne .L0	cmpq $1, %rdi jle .L0	boolean variables are for wimps. setle sets a byte register (%al) to contain a boolean movzbl zero-extends a byte to a long (movsbl sign-extends)
cmpq $1, %rdi jle .L0 jmp .L1 .L0:	cmpq $1, %rdi jg .L1 .L0:	Use fall throughs when possible; avoid jumps.
movq %rax, -16(%rbp) movq -16(%rbp), %rdi	movq %rax, %rdi	TAC code optimization might catch this sooner
movq -56(%rbp), %rax subq $1, %rax movq %rax, %rdi	movq -56(%rbp), %rdi subq $1, %rdi	What was so special about %rax again?
movq %rax, -40(%rbp) movq -24(%rbp), %rax addq -40(%rbp), %rax	addq -24(%rbp), %rax	Addition is commutative.

Interprocedural Optimization

argument culling

f(x,r,s,1);

int f(int x, float y, char *z, int n)
{
  switch (n) {
  case 1:
     do_A; break;
  case 2:
     do_B; break;
     ...
     }
}

f_1(x,r,s);

int f_1(int x, float y, char *z)
{
   do_A;
}
int f_2(int x, float y, char *z)
{
   do_B;
}
...

Another Word on Interprocedural Optimization

• Interprocedural optimization (IPO) includes any optimizations that apply across function call boundaries, not just culling
• Because function call boundaries are what is being optimized, this will often focus on analysis of information known about parameters and return type
• Includes function inlining, if the compiler decides when to do that, rather than leave the decision up to the programmer.
• Can only do interprocedural optimization on procedures the compiler knows about; limited value unless compiling whole program together, or embedding in linker
• Modern production compilers have extra command-line options for IPO

Code Generation for Input/Output

getchar()

Basic appearance of a call to getchar() in final code:

	call	getchar
	movl	%eax, destination

Of course, VGo does not have a getchar() function, it reads a line at a time. A built-in function for reading a line at a time might be built on top of this in vgo or in C, but it might be better to call a different input function.

gets() is part of the C standard that permanently encodes a buffer overrun attack in the language for all time. However, we could use fgets(char*,int,FILE*) to implement VGo's input function.

char *vgoread()
{
   int i;
   char *buf = malloc(4096);
   if (buf == NULL) return NULL; // should do more
   i = fgets(buf, 4095, stdin);
   // should do more
   return buf;
}

What-all is wrong with this picture?

printf(s...)

First parameter is passed in %rdi. An "interesting" section in the AMD64 reference manuals explains that 32-bit operands are automatically sign-extended in 64-bit registers, but 8- and 16-bit operands are not automatically signed extended in 32-bit registers. If string s has label .LC0

	movl	$.LC0, %eax	; load 32-bit addr
				; magically sign-extended to 64-bits
	movq	%rax, %rdi	; place 64-bit edition in param #1 reg.
	call	printf		; call printf

printf(s, i)

Printf'ing an int ought to be the simplest printf. The second parameter is passed in %rsi. If you placed a 32-bit int in %esi you would still be OK.

	movq	source, %rsi	; what we would do
	movl	source, %esi	; "real" C int: 32, 64, same diff

printf(s, c)

Printf'ing a character involves passing that char as a parameter. Generally when passing a "char" parameter one would pass it in a (long word, aligned) slot, and it is prudent to (basically) promote it to "int" in this slot.

	movsbl	source, %esi

printf(s, s)

Printf'ing a string involves passing that string as a parameter. For local variable string constant data, gcc does some pretty weird stuff. I'd kind of rather allocate the string constant out of the string constant region and then copy it into the local region, but perhaps calculating the contents of a string constant as a sequence of 32-bit long immediate values is an interesting exercise.

Comments on Debugging Assembler

• See this tutorial from DBP Consulting for some good ideas
• You almost only need to learn gdb's si and ni commands.
• You also need to know "as --gstabs+"
• You also need to know "info registers", or "i r" (e.g. "i r eax")
• In plain assembler debugging s and n work in lieu of si and ni

Dominators and Loops

dominator

node d in a flow graph dominates node n (written as "d dom n") if every path from the initial node of the flow graph to n goes through d

dominator tree

tree formed from nodes in the flow graph whose root is the initial node, and node n is an ancestor of node m only if n dominates m. Each node in a flow graph has a unique "immediate dominator" (nearest dominator), hence a dominator tree can be formed.

Loops in Flow Graphs

• Must have a single entry point (the header) that dominates all nodes
• Must be a way to iterate; at least one path back to the header
• To find loops: look for edges a->b where b dominates a (back edges)
• Given a back edge n->d, the natural loop of this edge is d plus the set of nodes that can reach n without going through d.
• every back edge has a natural loop...

Algorithm to construct the natural loop of a back edge

Method: depth-first search on the reverse flow graph G'. Start with loop containing only node n and d. Consider each node m | m != d that is in loop, and insert m's predecessors in G into loop. Each node is placed once on a stack, so its predecessors will be examined. Since d is put in loop initially, its predecessors are not examined.

procedure insert(m)
   if not member(loop, m) then {
      loop := loop ++ { m }
      push m onto stack
   }
end

main:
   stack := []
   loop := { d }
   insert(n)
   while stack not empty do {
      pop m off stack
      for each predecessor p of m do insert(p)
      }

Inner Loops

• If only natural loops are considered then unless two loops have the same header, they are either disjoint or one is nested within the other. The ones that are nested inside other loops may be of more interest e.g. for optimization.

• If two loops share the same header, neither is inner to the other, instead they are treated as one loop.


Code Generation for Virtual Machines

no registers, simplified addressing

a virtual machine may omit a register model and avoid complex addressing modes for different types of variables

uni-size or descriptor-based values

if all variables are "the same size", some of the details of memory management are simplified. In Java most values occupy a standard "slot" size, although some values occupy two slots. In Icon and Unicon, all values are stored using a same-size descriptor.

runtime type system

requiring type information at runtime may complicate the code generation task since type information must be present in generated code. For example in Java method invocation and field access instructions must encode class information.

	iload_1
	iload_2
	iadd
	iload_3
	iload 4
	iadd
	imul
	iload 5
	iload 6
	iadd
	iload 7
	iload_1
	iadd
	imul
	iload_3
	iload 5
	imul
	idiv
	iadd
	istore_1

• Stack-machine model. Most instructions implicitly use the stack.
• Difference between "iload_3" and "iload 4": Java VM has special opcodes that run faster for first 3 locals/temporaries.

Preheaders

What was all that Loops/Dominators Stuff For?

• You can't do the loop optimizations on malformed loops!
• To be safe, one must identify proper optimization-eligible "loops" from their shape in the flow graph, not from syntax keywords like "while" or "for".
• The whole flow graph for a function, then, will contain zero or more (usually one or more) inner, natural loops that can be worked on by storing in an auxiliary data structure the set of nodes (from the flow graph) that belong under a given header.

Given that you find such a natural loop, you can do:

Loop Hoisting

• identify loop invariant. Invariant wrt loop iff operands are defined outside loop or constant OR definition inside loop was itself invariant.
• move invariant to preheader

Finding Loop Invariants

Did you get:

Exercise: run it a few billion times; see whether hoisting a couple operations out of the loop makes a measurable difference. It might not, after all... gotos are expensive. Exercise: what is wrong with this example? Another example (from Wikipedia loop-invariant code motion):

for (int i = 0; i < n; i++) {
    x = y + z;
    a[i] = 6 * i + x * x;
}

More on Runtime Systems

So you need a runtime system; potentially, this might be as big or bigger a job than writing the compiler. Languages vary from assembler (no runtime system) and C (small runtime system, mostly C with some assembler) on up to Java (large runtime system, mostly Java with some C) and in even higher level languages the compiler may evaporate and the runtime system become gigantic. The Unicon language has a relatively trivial compiler and gigantic virtual machine and runtime system. Other scripting languages might have no compiler at all, doing everything (even lexing and parsing) in the runtime system.

Quick Look at the Implementation of Unicon

• Language much higher level than C, C++, or Java, closer to Python
• Descended from Icon, whose Big Research Contribution was: integrating goal-directed evaluation into imperative programming
• Unicon came into existence because a tiny office in The Government wanted to use Icon, but needed it to be relevent to their real world problems: big data, analysis of large unstructured text stored in SQL databases.
• Unicon's Little Research Contributions are:
  • scaling Icon to large real-world problems
  • adding OOP, concurrency, pattern type, rich high-level I/O subsystems
  • native execution monitoring
• At least Three implementations:
  • Virtual machine, no registers, yes built-in backtracking
  • Optimizing compiler, generates C, backtracking turns into continuation passing
  • Transformer, generates Java, backtracking turns into iterators
• In all cases, the runtime system is far larger than the compiler!
• Compared with a traditional language:
  • no type checking in the compiler!
  • runtime type checks (opt. compiler: type inferencing)

On Double Constants in Assembler

#include
using namespace std;
int main()
{
   double d;
   d = 3.1415;
   long l = *(long *)(&d);
   cout << "$" << l << endl;
}

$4614256447914709615

Tips on Invoking the Assembler and Linker from your Compiler

• You could write a puny shell script that ran your compiler (named something else) and them ran the assembler and linker.
• Probably better to call assembler and linker from within your main().
• Probably this means invoking an external program/process from your program.
• Most standard way to do this is via system(s). Could use popen() or fork()/exec()/wait() but system() is probably best.
• Return integer is a "status" consisting of an exit code PLUS STUFF. You have to use WEXITSTATUS(i) to get the process return code of command s.
• The assembler is named as, and as mentioned you may want to use as --gstabs+, as in

  as --gstabs+ -o foo.o foo.s


• The linker is named ld, and you typically would invoke it with not just your own code, but also startup code to call your main(), and a runtime library. If your library were named libpuny.a that might look like:

  ld -o foo /usr/lib64/crt1.o foo.o -lpuny


• If you were invoking the linker ld on a "real" g++ standard library the ld command invocation is more complex. For example in April 2021 on login.cs.nmt.edu it looked like:

  ld -dynamic-linker /lib64/ld-linux-x86-64.so.2 /usr/lib/x86_64-linux-gnu/crt1.o /usr/lib/x86_64-linux-gnu/crti.o /usr/lib/gcc/x86_64-linux-gnu/7/crtbegin.o hello.o -lc /usr/lib/gcc/x86_64-linux-gnu/7/crtend.o /usr/lib/x86_64-linux-gnu/crtn.o

  In April 2023 these versions appear the same or very close on login.cs.nmt.edu but might vary on your machine. Since this is version-specific, a more "portable" way is to use gcc or g++ as your linker, if you are going to link in its standard C (or C++) libraries:

  gcc hello.o


• Runtime libraries like libpuny.a are built from .o files by running the archiver program ar, as in

  ar cr libpuny.a mylib1.o mylib2.o ...


• You can expect to have to read the man pages for as, ld, ar, and system in order to figure out options.
• There is a potential problem with where your compiler should find libpuny.a, how shall we solve that?

Imports and Inheritance in Unicon

Syntax Tree Overview

import: IMPORT implist {
   $$ := node("import", $1,$2," ")
   import_class($2)
   } ;

record treenode(label, children)
procedure node(label, kids[])
   return treenode(label, kids)
end

Idol.icn

class Package (one of the only parts of idol.icn I didn't write) tells a real interesting story. There is both an in-memory representation of what we know about the world, and a persistent on-disk representation (in order to support separate compilation).

#
# a package is a virtual syntax construct; it does not appear in source
# code, but is stored in the database.  The "fields" in a package are
# the list of global symbols defined within that package.  The filelist
# is the list of source files that are linked in when that package is
# imported.
#
class Package : declaration(files, dir, classes)
   #
   # Add to the two global tables of imported symbols from this package's
   # set of symbols.  If sym is non-null, we are importing an individual
   # symbol (import "pack.symbol").
   #
   method add_imported(sym)
      local s, f

      if /dir then return

      f := open(dir || "/uniclass", "dr") |
	 stop("Couldn't re-open uniclass db in " || dir)
      every s := (if \sym then sym else fields.foreach()) do {
         if member(imported, s) then
             put(imported[s], self.name)
          else {
             imported[s] := [self.name]
          }

         if fetch(f, self.name || "__" || s) then {
            if member(imported_classes, s) then
               put(imported_classes[s], self.name)
            else {
               imported_classes[s] := [self.name]
            }
         }
      }
      close(f)
   end
   method Read(line)
      self$declaration.Read(line)
      self.files := idTaque(":")
      self.files$parse(line[find(":",line)+1:find("(",line)] | "")
   end
   method size()
      return fields$size()
   end
   method insertfname(filename)
      /files := idTaque(":")
      if files.insert(filename) then {
         write(filename, " is added to package ", name)
         writespec()
         }
      else write(filename, " is already in Package ", name)
   end
   method insertsym(sym, filename)
      if fields.insert(sym) then {
         write(sym, " added to package ", name)
         writespec()
         }
      else write(sym, " is already in Package ", name)
   end
   method containssym(sym)
       return \fields.lookup(sym)
   end
   method String()
      s := self$declaration.String()
      fs := files.String()
      if *fs > 0 then fs := " : " || fs
      s := s[1: (*tag + *name + 2)] || fs || s[*tag+*name+2:0]
      return s
   end
   method writespec()
   if \name & (f := open(env,"d")) then {
      insert(f, name, String())
      close(f)
      return
      }
   stop("can't write package spec for ", image(name))
   end
initially(name)
   if name[1] == name[-1] == "\"" then {
      name := name[2:-1]
      self.name := ""
      name ? {
	 if upto('/\\') then {
	    while self.name ||:= tab(upto('/\\')) do self.name ||:= move(1)
	    }
	 self.name ||:= tab(find(".")|0)
	 }
      }
   else {
      self.name := name
      }
   if dbe := fetchspec(self.name) then {
      Read(dbe.entry)
      self.dir := dbe.dir
      }
   /tag := "package"
   /fields := classFields()
end

fetching a specification

#
# find a class specification, along the IPATH if necessary
#
procedure fetchspec(name)
   static white, nonwhite
   local basedir := "."
$ifdef _MS_WINDOWS_NT
   white := ' \t;'
   nonwhite := &cset -- ' \t;'
$else
   white := ' \t'
   nonwhite := &cset -- ' \t'
$endif
   name ? {
      while basedir ||:= tab(upto('\\/')) do {
	 basedir ||:= move(1)
	 }
      name := tab(0)
      # throw away initial "." and trailing "/"
      if basedir[-1] == ("\\"|"/") then basedir := basedir[2:-1]
      }
   if f := open(basedir || "/" || env,"dr") then {
      if s := fetch(f, name) then {
	 close(f)
	 return db_entry(basedir, s)
	 }
      close(f)
      }

   if basedir ~== "." then fail # if it gave a path, don't search IPATH

   ipath := ipaths()

   if \ipath then {
      ipath ? {
         dir := ""
	 tab(many(white))
	 while dir ||:= tab(many(nonwhite)) do {
	    if *dir>0 & dir[1]=="\"" & dir[-1] ~== "\"" then {
		dir ||:= tab(many(white)) | { fail }
	       }
	    else {
		if dir[1]==dir[-1]=="\"" then dir := dir[2:-1]
		if f := open(dir || "/" || env, "dr") then {
		    if s := fetch(f, name) then {
			close(f); return db_entry(dir, s) }
		    close(f)
		}
		tab(many(white))
		dir := ""
	    }
	}
     }
  }
end

Closure-Based Inheritance

Inside class Class, supers is an object that maintains an ordered list of a class' superclasses (i.e. parents). Variable classes is effectively a global object that knows all the classes in the current package and let's you look them up by name. Variable added tracks classes already visited, and prevents repeating any classes already on the list.

  method transitive_closure()
    count := supers.size()
    while count > 0 do {
	added := taque()
	every sc := supers.foreach() do {
	  if /(super := classes.lookup(sc)) then
	    halt("class/transitive_closure: couldn't find superclass ",sc)
	  every supersuper := super.foreachsuper() do {
	    if / self.supers.lookup(supersuper) &
		 /added.lookup(supersuper) then {
	      added.insert(supersuper)
	    }
	  }
	}
	count := added.size()
	every self.supers.insert(added$foreach())
    }
  end

  method resolve()
    #
    # these are lists of [class , ident] records
    #
    self.imethods := []
    self.ifields := []
    ipublics := []
    addedfields := table()
    addedmethods := table()
    every sc := supers.foreach() do {
	if /(superclass := classes.lookup(sc)) then
	    halt("class/resolve: couldn't find superclass ",sc)
	every superclassfield := superclass.foreachfield() do {
	    if /self.fields.lookup(superclassfield) &
	       /addedfields[superclassfield] then {
		addedfields[superclassfield] := superclassfield
		put ( self.ifields , classident(sc,superclassfield) )
		if superclass.ispublic(superclassfield) then
		    put( ipublics, classident(sc,superclassfield) )
	    } else if \strict then {
		warn("class/resolve: '",sc,"' field '",superclassfield,
		     "' is redeclared in subclass ",self.name)
	    }
	}
	every superclassmethod := (superclass.foreachmethod()).name() do {
	    if /self.methods.lookup(superclassmethod) &
	       /addedmethods[superclassmethod] then {
		addedmethods[superclassmethod] := superclassmethod
		put ( self.imethods, classident(sc,superclassmethod) )
	    }
	}
	every public := (!ipublics) do {
	    if public.Class == sc then
		put (self.imethods, classident(sc,public.ident))
	}
    }
  end

Unicon Methods Vectors

final review began here

Final Exam Review

• Review your lexical analysis, regular expressions, and finite automata.
• Review your syntax analysis, CFGs, and parsing.
• If a parser discovers a syntax error, how can it report what line number that error occurs on? If semantic analysis discovers a semantic error (or probable semantic error), how can it report what line number that error occurs on?
• What are symbol tables? How are they used? What information is stored there?
• How does information get into a symbol table?
• How many symbol tables does a compiler need?
• What is "semantic analysis"?
• What does "semantic analysis" accomplish? What are its side effects?
• What are the primary activities of a compiler's semantic analyzer?
• How is type checking different for a language like k0 than for a language such as C?
• What are memory regions, and why does a compiler care?
• What memory regions are there, and how do they affect code generation?
• What does code generation do, anyhow?
• What kinds of code generation are there?
• Why do (almost all) compilers use an "intermediate code"? What does intermediate code look like? How is it different from final code?
• What are the main tasks in final code generation?

Sample Final Exam

2023's Final Exam
